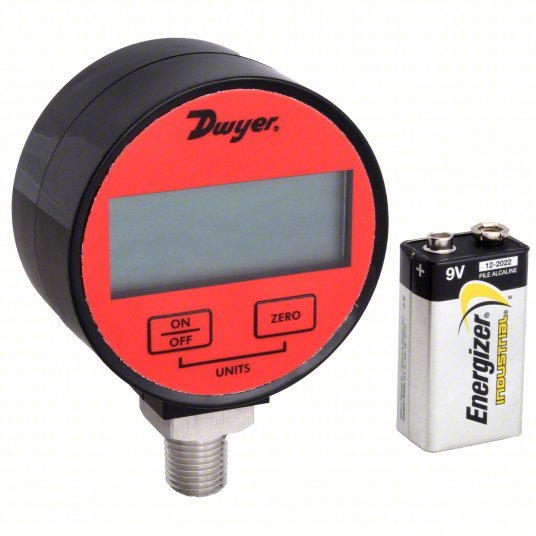

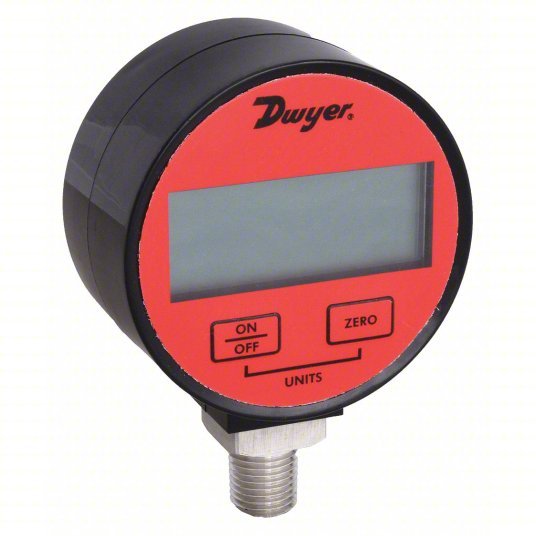

Dwyer DPGA-05 Digital Industrial Pressure Gauge 0 to 15 psi, For Dry Air & Gases, 1/4 in NPT Male, Bottom

Digital Industrial Pressure Gauge, Accuracy +/-1.00 Percent, Gauge Case Material ABS, Nominal Dial Size 2 1/2 in, IP/NEMA Rating Not Rated, Hazardous Location Rating Not Rated, Compatible Process Media Air and Compatible Gases, Sensor Material Silicone, Socket Material 316L Stainless Steel, Process Connection Type NPT, Display Units bar, cm wc, ft wc, in Hg, in wc, kg/sq cm, kPa, mbar, mm Hg, oz/sq in, psig, Process Connection Gender Male, Battery Type 9V Battery

Connection Location	Bottom
Gauge Application	For Dry Air & Gases
Includes	Instructions
Range	0 to 15 psi
Digital Pressure and Vacuum Gauge Type	Digital Pressure Gauge
Accuracy	+/-1.00%
Application	OEM Applications, Process Industries
Gauge Primary Range Values	0 to 15
Gauge Primary Range Units	psi
Gauge Connection Type	MNPT
Basic Gauge Case Material	Plastic
Case Color	Red
Socket Material	316L Stainless Steel
Calibration Certificate	No
Powered By	9V Battery
Display	LCD
Digital Gauge Display Units	bar, cm wc, ft wc, in Hg, in wc, kg/sq cm, kPa, mbar, mm Hg, oz/sq in, psig
Gauge Operating Temp. Range	30 Degrees to 120 Degrees F
Basic Gauge Wetted Parts	Stainless Steel
Peak Hold	No
Digital Gauge Accuracy	+/-1.00% of Reading
Series	DPGA
Gauge Connection Location	Bottom
Memory Storage	No
Case Material	Plastic
Gauge Case Material	ABS
Display Units	bar, cm wc, ft wc, in Hg, in wc, kg/sq cm, kPa, mbar, mm Hg, oz/sq in, psig
Standards	CE Certified, RoHS, Russian GOST Certification
Display Screen Type	LCD
Battery Type	9V Battery
Process Temperature Range	30 Degrees to 120 Degrees F
Includes Rubber Boot	No
Pressure Gauge Type	Industrial Pressure Gauge
Auto-Shutoff Time	20 min
Backlit Screen	No
Compatible Process Media	Air and Compatible Gases
Process Connection Location	Bottom
Primary Display Range	0 to 15
Primary Display Units	psi
Power Source	Battery
Includes Calibration Certificate	No
Includes Batteries	Yes
Temperature Error	0.05% Degrees F
Adjustable Set Points	No
Weatherproof	No
Display Resolution	0.01 psi
IP/NEMA Rating	Not Rated
Process Connection Type	NPT
Panel-Mountable	No
Auto-Shutoff	Yes
Pressure Range Type	Pressure
Non-Sparking	No
Blowout Safety Back	No
Sensor Material	Silicone
Low Battery Indicator	Yes
Number of Digits	4
Case Shape	Round
Display Range	0 to 15 psi
Process Connection Gender	Male
Includes Mounting Hardware	No
Languages	English
Hazardous Location Rating	Not Rated
