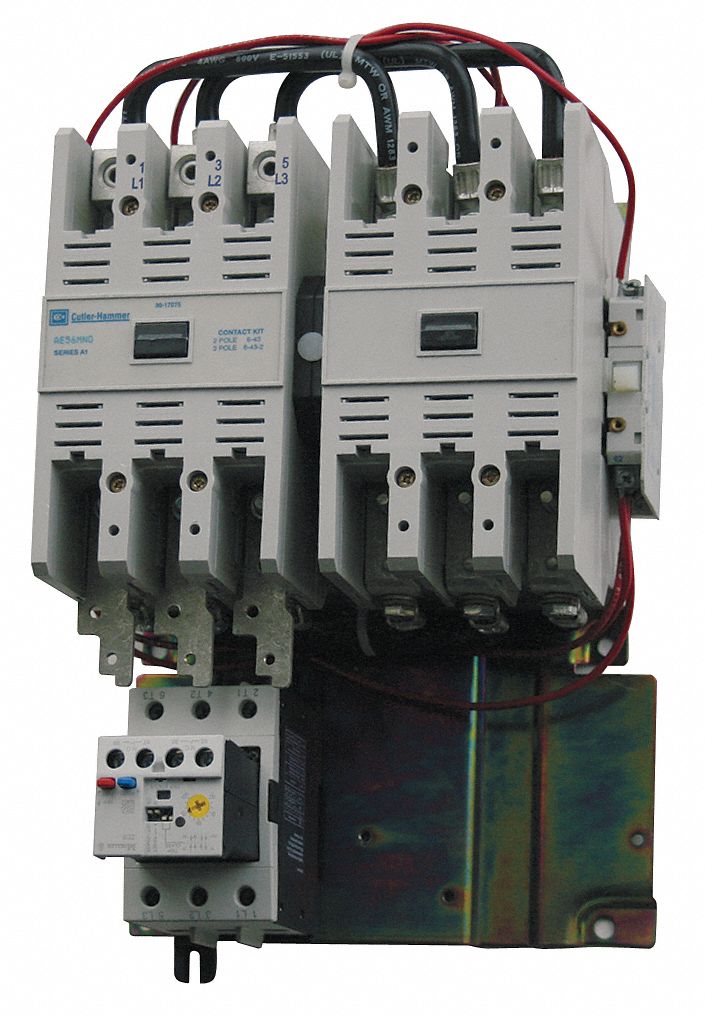

Eaton AN59NN0A5E140 NEMA Magnetic Motor Starter, Reversing, 3 Poles, NEMA Size 4, 135 A, 120V AC Coil
UPC: 786685575179 | Harmonization / Schedule B : 8536.50.4000
Country of Origin: Dominican Republic | Shipping Weight: 68.3 lbs
Original price
$13,496.36
-
Original price
$13,496.36
Original price
$13,496.36
$13,496.36
-
$13,496.36
Current price
$13,496.36
NEMA Magnetic Motor Starter, Includes Auxiliary Contacts Yes, Maximum Overload Relay Current Setting 140 A, Overload Protection Type Electronic, Minimum Overload Relay Current Setting 28 A, Trip Class 10A/10/20/30, Series Freedom, Number of Poles 3, Number of Auxillary Contacts 1, Phase Three, Operator None, Operator Function Not Applicable, Mounting Style Surface, Auxiliary Contact Form 1NO, Starter Style NEMA, Reversing Capability Reversing, Maximum Voltage Rating 600V AC
| Auxiliary Contact Form | 1NO |
|---|---|
| Coil Voltage | 120V AC |
| Number of Poles | 3 |
| Full Load Current - Inductive | 140 A |
| Reversing Capability | Reversing |
| Terminal Connection Type | Screw |
| Number of Auxillary Contacts | 1 |
| Standards | ATEX Compliant 94/9/EC, Equipment Group 2, Category 2, CE, CSA, IEC/EN 60947 VDE 0660, ISO 13849-1 (EN954-1), RoHS, UL Listed |
| Includes | Auxiliary Contact, Contactor, Electronic Overload |
| HP @ 3 Phase - 575V | 100 hp |
| NEMA Size | 4 |
| Accessory Group | Freedom |
| Thermal Unit Code | Not Applicable |
| Trip Class | 10A/10/20/30 |
| Horsepower @ Three Phase - 480V AC | 100 hp |
| Mounting Postion | Horizontal |
| IP Rating | IP20 |
| Hazardous Location Specification | Not Applicable |
| Horsepower @ Three Phase - 240V AC | 50 hp |
| Horsepower @ Single Phase - 240V AC | Not Rated |
| Maximum Overload Relay Current Setting | 140 A |
| Mounting Style | Surface |
| Frequency | 50/60 Hz |
| Includes Auxiliary Contacts | Yes |
| Series | Freedom |
| Maximum Voltage Rating | 600V AC |
| Overall Width | 7.1 in |
| Overall Depth | 7 in |
| Minimum Overload Relay Current Setting | 28 A |
| Operator Function | Not Applicable |
| Horsepower @ Three Phase - 208V AC | 40 hp |
| Horsepower @ Three Phase - 600V AC | 100 hp |
| Overall Height | 17 in |
| Overload Protection Type | Electronic |
| Operator | None |
| Frame Size | S4 |
| Status Indicator | LED Indicator |
| Horsepower @ Single Phase - 120V AC | Not Rated |
| Starter Style | NEMA |
| Current AC | 135 A |
| Auxiliary Contact Module Capacity | 6 |
| NEMA Enclosure Rating | No Enclosure |
| Phase | Three |
| Package Quantity | 1 |
| Country of Origin | Dominican Republic |
