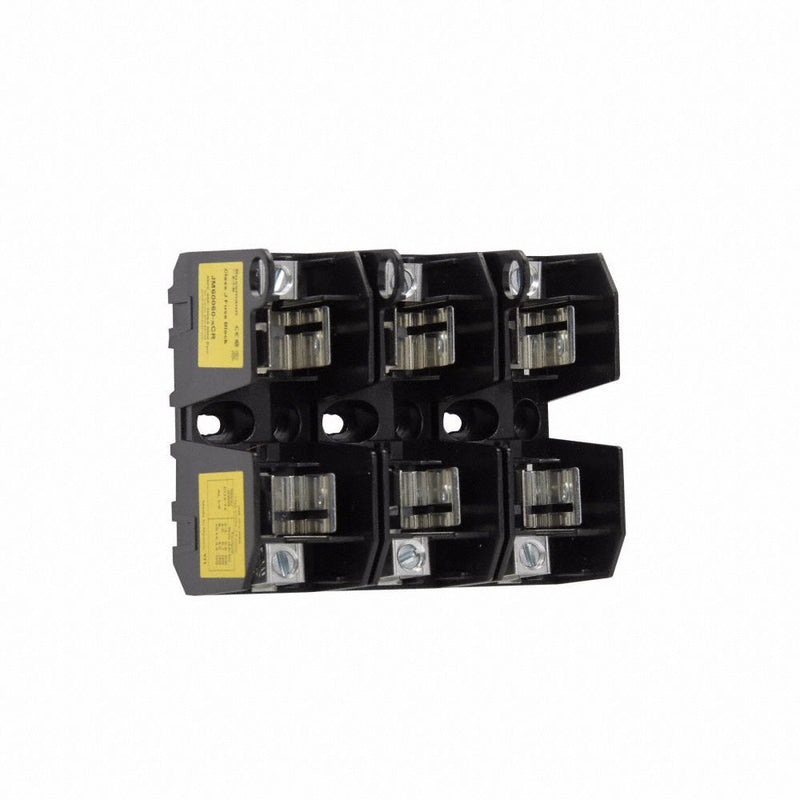

Eaton Bussmann JM60060-3CR Fuse Block, Class J, 3 Pole, 600V AC/300V DC, 31-60 A, Box Lug, Open Design
Original price
$255.06
-
Original price
$255.06
Original price
$255.06
$255.06
-
$255.06
Current price
$255.06
Fuse Block, Fits Fuse Type Class J, Fuse UL Class J, 31 to 60 A, Number of Poles 3, 600V AC/300V DC, For Fuse Size 2 3/8 in L x 1 1/16 in dia, Compatible Fuse Series A4J, AJT, DFJ, HSJ, JKS, JLS, JTD, JTD-ID, LDFJ, LPJ, LPJ-I, Series JM, Non-Indicating, Non-Rejection, Fuse Block Design Open, Wire Range 14 to 2 AWG, Mounting Style Bolt-Down, DIN Rail, Body Material Thermoplastic, Connector Type Box Lug, Height 2.6 in, Width 4.5 in, Length 3.7 in, Spring Reinforced Clip Yes
| CAD Available | Yes |
|---|---|
| UL Class | J |
| Series | JM |
| Number of Poles | 3 |
| Amp Range | 35 to 60A |
| Voltage Rating | 600V AC/DC |
| Connector Type | Box Lug |
| Mounting Style | Bolt-Down; DIN Rail |
| Visual Indication | Non-Indicating |
| Fuse Block Style | Non-Rejection |
| Spring Reinforced Clip | Yes |
| Fuse Block Design | Open |
| Body Material | Thermoplastic |
| For Fuse Series | LPJ, JKS, DFJ |
| Fuse Type | Industrial |
| Standards | CE, CSA Certified, REACH, RoHS, UL Listed |
| Fits Fuse Type | Class J |
| Wire Range | 14 AWG to 2 AWG |
| Short Circuit Current (KA) | 200kA |
| Weight | .1 lb |
| Fits Fuse Block Style | Non-Rejection |
| DC Voltage Rating | 300 V DC |
| Current - Minimum | 31 A |
| AC Voltage Rating | 600 V AC |
| Current - Maximum | 60 A |
| Country of Origin | Mexico |
