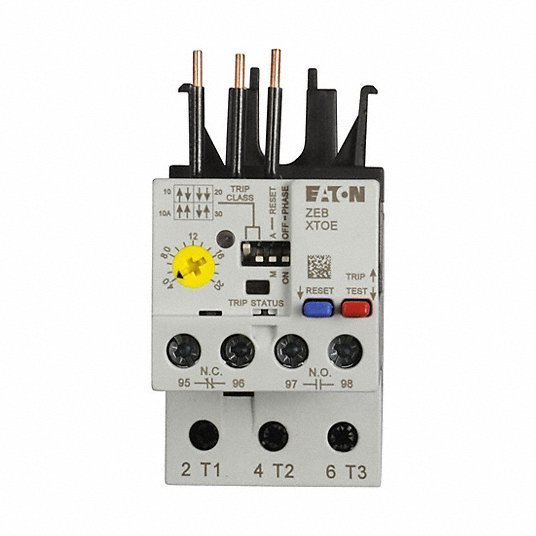

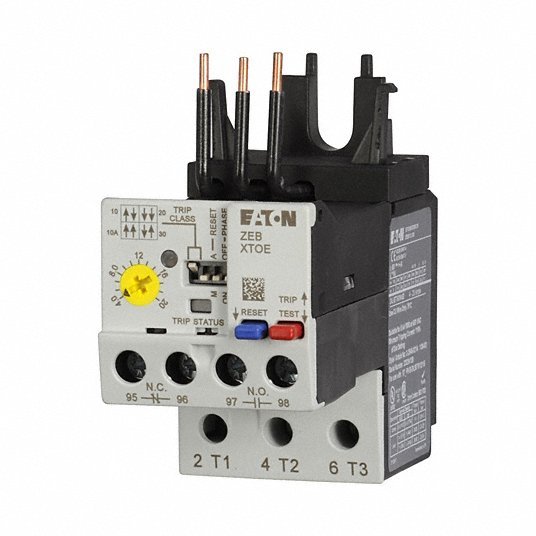

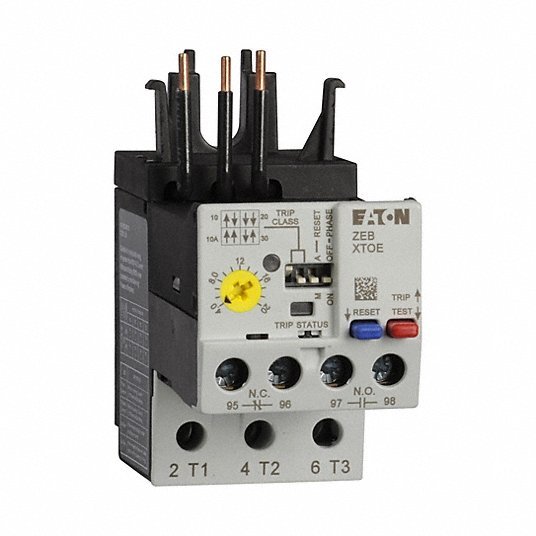

Eaton XTOE020CCS Overload Relay Electronic Protection, 3 Poles, 1NO/1NC, Phase Loss Sensitivity, Frame Size C

Overload Relay, Auxiliary Contact Form 1NO/1NC, Maximum Overload Relay Current Setting 20 A, Minimum Overload Relay Current Setting 4 A, Trip Class 10/20/30, Number of Poles 3, Reset Type Auto, Manual, Mounting Style Direct To Contactor, Compatible with Series XT Mini Contactors, Frame Size C, Relay Style IEC, Overload Protection Type Electronic, Phase Three

Auxiliary Contact Form	1NC/1NO
Minimum Overload Relay Current Setting	4 A
Maximum Overload Relay Current Setting	20 A
Trip Class	10/20/30
Overload Protection Type	Electronic
Standards	ATEX Compliant, CE, CSA, EN 60947, IEC 60947, RoHS, UL Listed
Item - Relay	IEC Style Overload Relay
For Use With	18 to 32A Contactors
Number of Poles	3
Separate Mounting	No
Features	Optional Communications Available, Solid State Overload Relay, Wide Adjustment Range
Sensing Method	Electronic
Frame / Series / Class / Code	Frame C
Trip Class - Overload	10, 20, 30, 5
Overload Relay Current Range	4.0 to 20.0A
Current Range	4.00 to 20.0A
Use With - Contactors and Starters	Mfr. Series XTCE Contactors
Reset Type - Relay	Auto, Manual
Starter Type	IEC
Type	Electronic overload relay
Mounting method	Direct
Compliances	ATEX Compliant
Certifications	IEC 60947
Contact configuration	NO, NC
Overload range	4-20A
Product Name	Eaton C440 electronic overload relay
IP Rating	IP20
Maximum Operating Temperature	122 Degrees F
Compatible with Series	XT Mini Contactors
Relay Style	IEC
Phase	Three
Minimum Operating Temperature	-13 Degrees F
Reset Type	Auto, Manual
Mounting Style	Direct To Contactor
