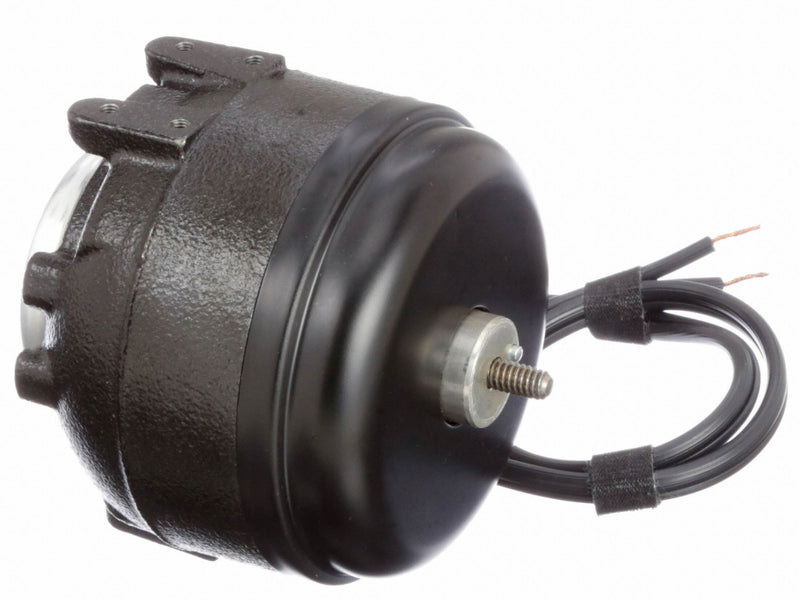

EM&S ESP-L35EM2 Unit Bearing Motor, 1/20 HP, 1500 RPM, 230V AC, Cast Iron Frame
Original price
$129.34
-
Original price
$129.34
Original price
$129.34
$129.34
-
$129.34
Current price
$129.34
Unit Bearing Motor, Single Phase, Motor Design Shaded Pole, 1/20 HP, Nameplate RPM 1,500, No. of Speeds 1, Voltage 230V AC, 0.70 A Full Load Amps, Non-Standard Frame, Output Watts 35 W, 60 Hz Hz, Usable @ 208V No, Usable @ 200V No, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class A, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWLE, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Rear/Foot, Motor Frame Material Cast Iron
| Motor Sub Application | Refrigerator/Freezer |
|---|---|
| Output Watts | 35 W |
| HP | 1/20 |
| RPM Range | 1,401-1,500 |
| Voltage Compatibility | 115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC |
| Phase | Single |
| Voltage | 230V AC |
| Motor Shaft Rotation | CWLE |
| Nameplate RPM | 1,500 |
| Frame | Non-Standard |
| Motor Thermal Protection | Auto |
| Motor Enclosure Design | Totally Enclosed Air-Over |
| Motor Application | HVAC/R |
| Max. Ambient Temp. | 40 Degrees C |
| Plug Type | Round 2 Pin |
| Ins. Class | A |
| Motor Service Factor | 1 |
| Frame Material | Cast Iron |
| Motor Design | Shaded Pole |
| Standards | Meets UL and Canadian Standards for Safety |
| Motor Frame Material | Cast Iron |
| Motor Mounting Type | Rear/Foot |
| Motor Mounting Position | All Angle |
| Hz | 60 Hz |
| Full Load Amps | 0.70 A |
| Motor Bearings | Unit |
| Usable @ 208V | No |
| Features | Cool running, Quiet Operation, Thick Film Lubricating System for Long Life and Dependability |
| No. of Speeds | 1 |
| Usable @ 200V | No |
| Mounting Holes | Tapped 8-36 |
| Country of Origin | United States |
