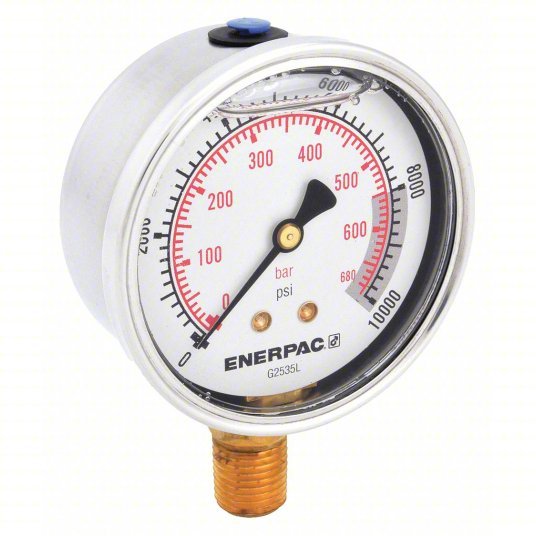

Enerpac G2535L Hydraulic Cylinder Pressure Gauge 0 to 10,000 psi psi, 2 1/2 in Dial, Liquid-Filled, Bottom
Original price
$181.05
-
Original price
$181.05
Original price
$181.05
$181.05
-
$181.05
Current price
$181.05
Pressure Gauge, Liquid Filled, 2-1/2 In., 0 to 15,000 psi, Connection Size 1/4 In. MNPT, Connection Location Lower, Accuracy +/-1.5 Percent, Case Color Silver, Filled With Glycerin, Lens Material Glass, For Use With Hydraulics, Series G, Includes Safety Blowout Disc and Pressure Equalizing Membrane
| For Use With | All Cylinders |
| Gauge Application | High Cycle |
| Includes | Pressure Equalizing Membrane, Safety Blow-Out Disk |
| Range | 0 to 10,000 psi |
| Accuracy | +/-1.50% |
| Material | Stainless Steel |
| Color | Silver |
| Application | Hydraulics |
| Max Pressure (PSI) | 10000 |
| Gauge Primary Range Values | 0 to 10,000 |
| Gauge Primary Range Units | psi |
| Gauge Connection Type | NPTF |
| Basic Gauge Case Material | Stainless Steel |
| Case Color | Metallic |
| Gauge Case Color | Stainless Steel |
| Calibration Certificate Included | No |
| Gauge Accuracy | +/-1.50% |
| Gauge Lens Material | Plastic |
| Gauge Primary Range Smallest Graduation | 200 |
| Smallest Graduation | 200 psi |
| Basic Gauge Lens Material | Glass |
| Gauge Case Material | Stainless Steel |
| Gauge Panel Mountable | No |
| Required Gauge Adapter | Enerpac GA-3 |
| Liquid Filled | Yes |
| Series | G |
| Max. Pressure (PSI) | 10000 |
| Gauge Filled With | Glycerin |
| Gauge Connection Location | Bottom |
| Pressure and Vacuum Gauge Type | Pressure Gauge |
| Socket Material | 303 Stainless Steel |
| Graduations | 200 psi x 10 bar |
| Gauge Mounting Method | Lower Mount |
| Pressure Range | 0 to 10,000 psi |
| Process Connection | 1/4 in NPTF Male |
| Field Fillable | No |
| Lens Material | Polycarbonate |
| Secondary Pressure Range | 0 to 700 psi |
| Primary Units | psi |
| IP/NEMA Rating | Not Rated |
| Gauge Wetted Parts | Stainless Steel / Copper |
| Compatible Brand and Series | ENERPAC FM-25NG, ENERPAC NV-251 |
| Hydraulic Pressure Gauge Type | Dial Pressure Gauge for Hydraulic Systems |
| Sensor Material | Copper Alloy |
| Dial Color | White |
| Secondary Range | 0 to 700 bar |
| Primary Scale Units | psi |
| Liquid-Filled Case | Yes |
| Case Construction | Corrosion Resistant |
| Primary Range | 0 to 10,000 |
| Process Connection Type | NPTF |
| Primary Pressure Range | 0 to 10,000 psi |
| Scale Type | Dual |
| Requires Adapter | Yes |
| Panel-Mountable | No |
| Hazardous Location Rating | Not Rated |
| Secondary Scale Minor Graduations | 10 |
| Process Connection Location | Bottom |
| Process Connection Gender | Male |
| Adjustable Pointer | No |
| Blowout Safety Back | Yes |
| Compatible Cylinder/Press | All Cylinders |
| Compatible Gauge Adapter | Enerpac GA-3 |
| Removable Bezel | No |
| Pressure Range Type | Pressure |
| Includes Vent Plug | No |
| Compatible Manufacturer Model Number | FM-25NG, NV-251 |
| Includes Mounting Hardware | No |
| Sensor Type | Bourdon Tube |
| Secondary Units | bar |
| Gauge Case Liquid | Glycerin |
| Pressure Gauge Type | Hydraulic Cylinder Pressure Gauge |
| Vibration Resistance | Liquid-Filled |
| Freeze Resistant Movement | No |
| Secondary Scale Units | bar |
| Accuracy Scale | Full Scale |
| Primary Scale Minor Graduations | 200 |
| Gauge Mounting Type | Stem-Mount |
