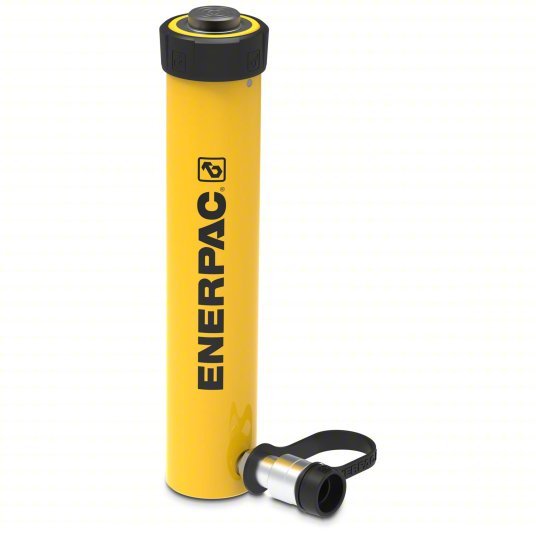

Enerpac RC1510 Hydraulic Ram Single Acting, 15 ton Nominal Capacity, 10 in Nominal Stroke Lg, Steel

Hydraulic Ram, Single Acting, General Purpose, Steel, Nominal Capacity 15 ton, Max. Push Capacity 15 ton, Stroke Length 10 in, Nominal Stroke Length 10 in, Effective Push Area 3.14 sq in, Max. Pressure 10,000 psi, Oil Capacity Push 31.42 cu in, Retracted Height 14.69 in, Extended Height 24.56 in, Outside Dia. 2.75 in, Plunger Dia. 1.63 in, Plunger Thread Size 1 In.-8, Collar Thread Size 2-3/4 In.-16, Base Bolt Circle Dia. 1.88 in, Center Hole Dia. 1 5/8 in, Series RC, Includes Coupler, Dust Cap

Oil Capacity	31.42 cu. in.
Cylinder Type	General Purpose
Includes	Coupler, Dust Cap
Item	Hydraulic Ram
Weight Capacity	15 tons
Effective Area	3.14 sq. in.
Handle	No
Single Acting/Double Acting	Single Acting
Body Material	Steel
Max. Pressure	10,000 psi
Max. Push Capacity	15 ton
Effective Push Area	3.14 sq in
Nominal Capacity	15 ton
Oil Capacity Push	31.42 cu in
Series	RC
Finish	Paint
