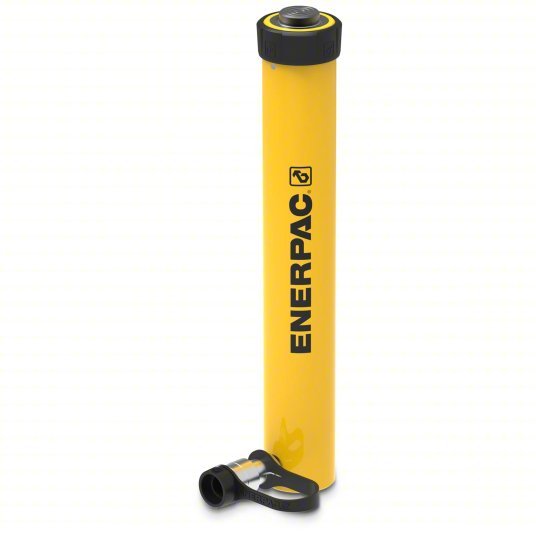

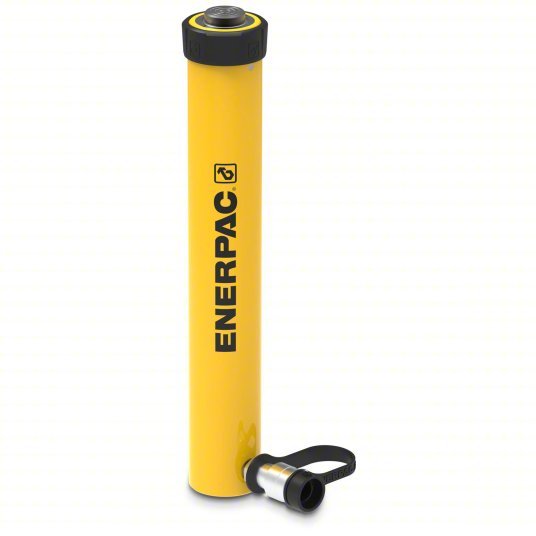

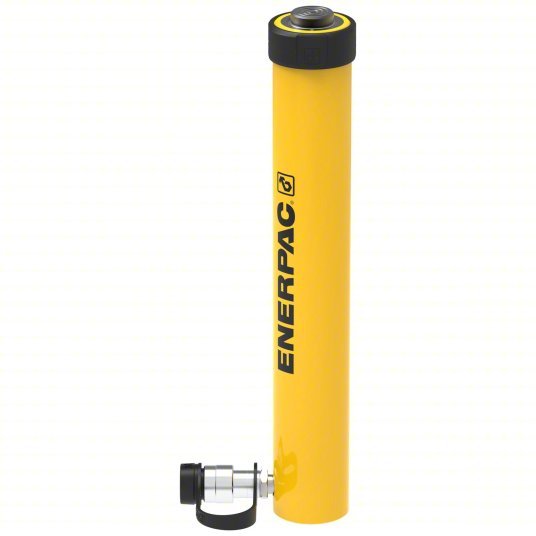

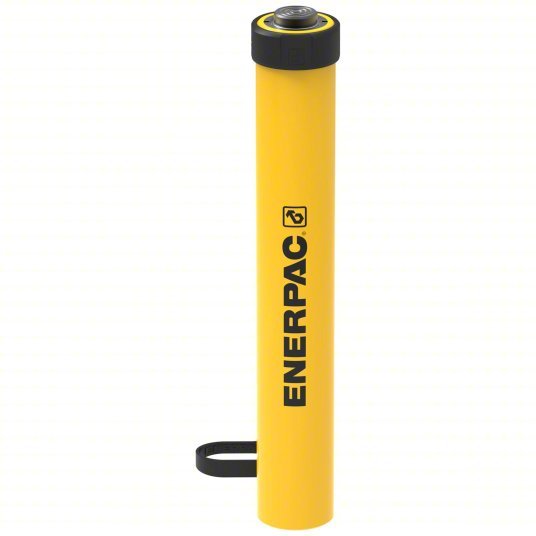

Enerpac RC1514 Hydraulic Ram Single Acting, 15 ton Nominal Capacity, 14 in Nominal Stroke Lg, Steel

Hydraulic Ram, Single Acting, General Purpose, Steel, Nominal Capacity 15 ton, Max. Push Capacity 15 ton, Stroke Length 14 in, Nominal Stroke Length 14 in, Effective Push Area 3.14 sq in, Max. Pressure 10,000 psi, Oil Capacity Push 43.98 cu in, Retracted Height 18.69 in, Extended Height 32.69 in, Outside Dia. 2.75 in, Plunger Dia. 2 in, Plunger Thread Size 1 In.-8, Collar Thread Size 2-1/4 In.-16, Base Bolt Circle Dia. 1.88 in, Center Hole Dia. 1 5/8 in, Series RC, Includes Coupler, Dust Cap

Weight Capacity	15 tons
Body Material	Steel
Oil Capacity	43.98 cu. in.
Max. Pressure	10,000 psi
Single Acting/Double Acting	Single Acting
Handle	No
Effective Area	3.14 sq. in.
Includes	Coupler, Dust Cap
Max. Push Capacity	15 ton
Effective Push Area	3.14 sq in
Series	RC
Nominal Capacity	15 ton
Oil Capacity Push	43.98 cu in
Finish	Paint
Type	Single-Acting
