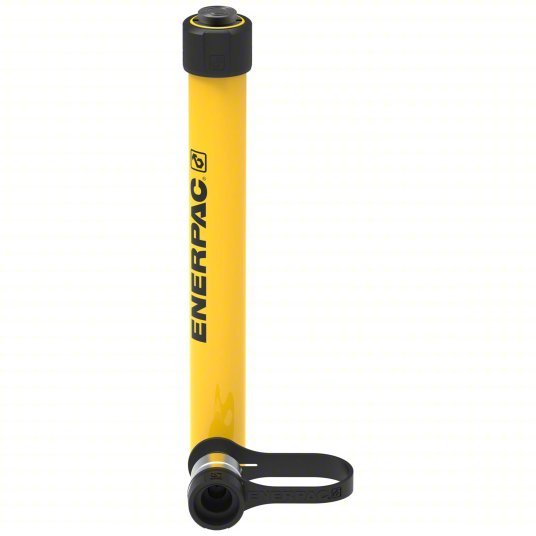

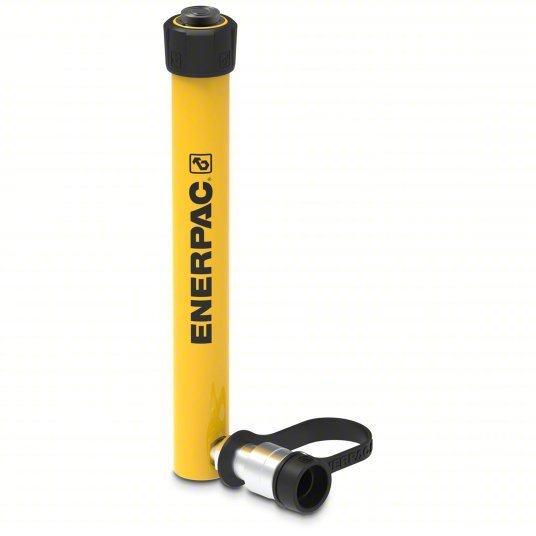

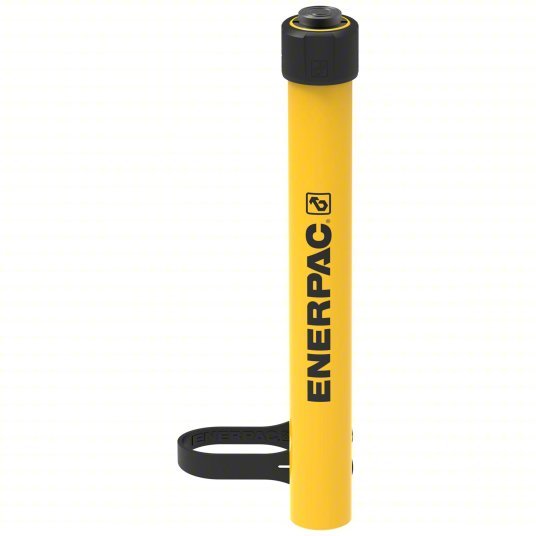

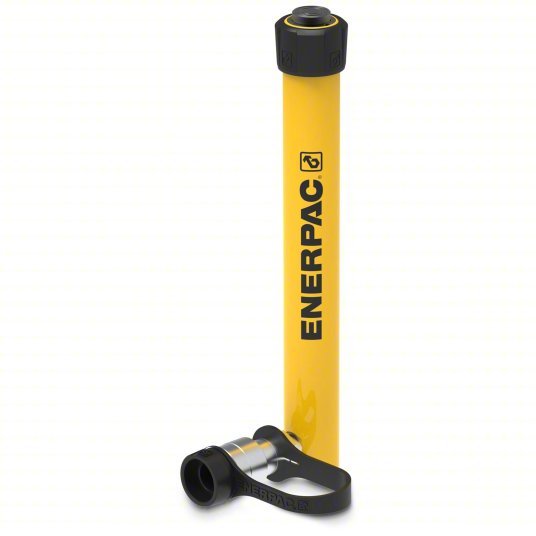

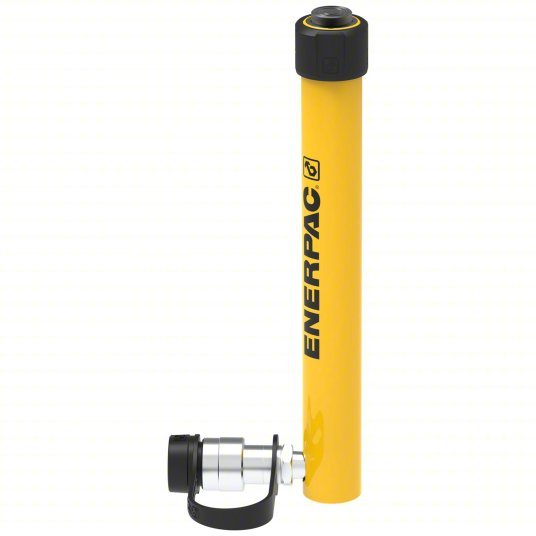

Enerpac RC59 Hydraulic Ram Single Acting, 5 ton Nominal Capacity, 9 in Nominal Stroke Lg, Steel

Hydraulic Ram, Single Acting, General Purpose, Steel, Nominal Capacity 5 ton, Max. Push Capacity 5 ton, Stroke Length 9 1/8 in, Nominal Stroke Length 9 in, Effective Push Area 0.99 sq in, Max. Pressure 10,000 psi, Oil Capacity Push 9.07 cu in, Retracted Height 12.75 in, Extended Height 21.33 in, Outside Dia. 1.5 in, Plunger Dia. 1 in, Plunger Thread Size 3/4 In.-16, Collar Thread Size 1-1/2 In.-16, Base Bolt Circle Dia. 1 in, Center Hole Dia. 1 in, Series RC, Includes Coupler, Dust Cap

Handle	Yes
Effective Area	1.00 sq. in.
Cylinder Type	General Purpose
Includes	Coupler, Dust Cap
Single Acting/Double Acting	Single Acting
Body Material	Steel
Oil Capacity	9.07 cu. in.
Weight Capacity	5 tons
Max. Pressure	10,000 psi
Oil Capacity Push	9.07 cu in
Series	RC
Effective Push Area	0.99 sq in
Nominal Capacity	5 ton
Max. Push Capacity	5 ton
Finish	Paint
