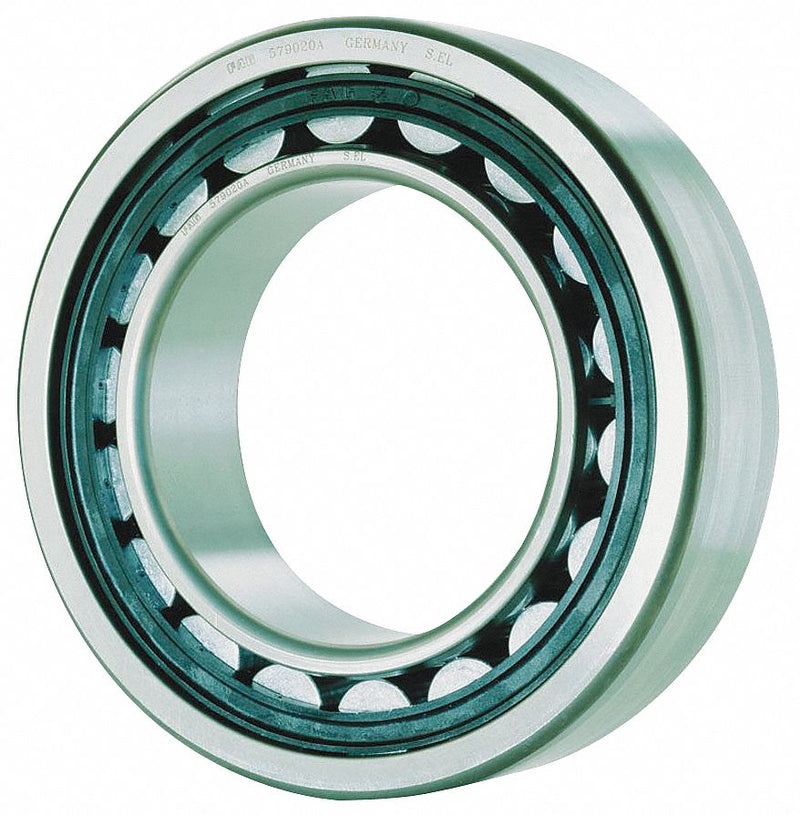

FAG NU204-E-XL-TVP2 Cylindrical Roller Bearing, 20 mm Bore, 47 mm OD, 14 mm Wide
Original price
$135.60
-
Original price
$135.60
Original price
$135.60
$135.60
-
$135.60
Current price
$135.60
Cylindrical Roller Bearing, Bearing Industry Number 204, Bore Diameter 20 mm, Bore Type Cylindrical, Cage Material Thermoplastic, Closure Open, Lubricant Material Grease, Oil, Maximum Speed 22,000 RPM, Maximum Temperature 120 Degrees C, Minimum Temperature -30 Degrees C, Number of Rows One, Outer Ring Inside Diameter 38.8 mm, Outside Diameter 47 mm, Overall Width 14 mm, Ring Material Alloy Steel, Roller Material Alloy Steel, Seal Type Not Applicable, Split Bearing Yes
| Roller Material | Alloy Steel |
|---|---|
| Cage Material | Thermoplastic |
| Static Load Capacity (Lb.) | 5,495 lb |
| Dynamic Load Capacity (Lb.) | 7,231 lb |
| Lubrication | Oil |
| Type | Cage Guided |
| Temp. Range (F) | -22 Degrees to 302 Degrees F |
| Roller Material Grade | 100Cr6 |
| Bore Type | Cylindrical |
| Cage Material Grade | Fiberglass-Reinforced PA66 |
| Closure | Open |
| Number of Outer Ring Flanges | 2 |
| Full Complement | No |
| Ring Material Grade | 100Cr6 |
| RBEC Rating | 3 |
| System of Measurement | Metric |
| Maximum Speed | 22,000 RPM |
| Includes Retaining Ring | No |
| ISO Rating | Class 6 |
| Lubricant Material | Grease, Oil |
| Bearing Industry Number | 204 |
| Static Radial Load Capacity | 24,700 N |
| Minimum Temperature | -30 Degrees C |
| Number of Rows | One |
| Dynamic Radial Load Capacity | 32,500 N |
| Maximum Temperature | 120 Degrees C |
| Ring Material | Alloy Steel |
| Split Bearing | Yes |
| Country of Origin | India |
