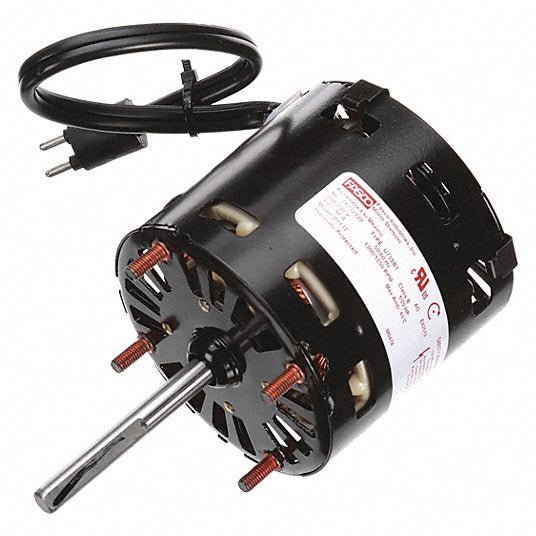

Fasco D1132 Condenser Fan Motor 71639383, 1 Shafts

OEM Replacement Motor, Single Phase, Motor Design Shaded Pole, 1/20 hp HP, Nameplate RPM 1,300 RPM/1,500 RPM, No. of Speeds 1, Voltage 208-230V AC, Full Load Amps 1.07/0.96 A, 3.3 Frame, OEM Replacement Brand Heatcraft, Replacement For Fasco Mfr. No. 71639383, Heatcraft Mfr. No. 25300201, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 50/60 Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWSE

Motor Design	Shaded Pole	Motor Enclosure Design	Open Air-Over
Motor Mounting Type	Extended Studs	Motor Shaft Rotation	Clockwise Shaft End
Motor Sub Application	Condenser Fan Motor	Motor Thermal Protection	Automatic
Nameplate RPM	1300/1550 rpm	No. of Speeds	1
Number of Shafts	1	OEM Replacement Brand	Heatcraft
Phase	1	RPM Range	1501-1600
Voltage	208/230V	Motor Bearings	Sleeve
Replacement For	Heatcraft Mfr. No. 25300201, Fasco Mfr. No. 71639383	Ins. Class	B
Max. Ambient Temp.	40 Degrees C	Duty	Air Over
Full Load Amps	1.07/0.96A	Capacitor Required	No
Standards	UL Recognized	Motor Shaft Design	Flat
Hz	60 Hz	Motor Service Factor	1.00
Application	Fan	Mounting Stud Pattern	2" x 2"
Voltage Compatibility	115/208-230V AC, 208-230V AC, 208-240V AC	Weight	4 lb
Motor Frame Material	Steel	Usable @ 200V	Not Usable at 200V
Usable @ 208V	Usable at 208V	Number of Speeds	1
