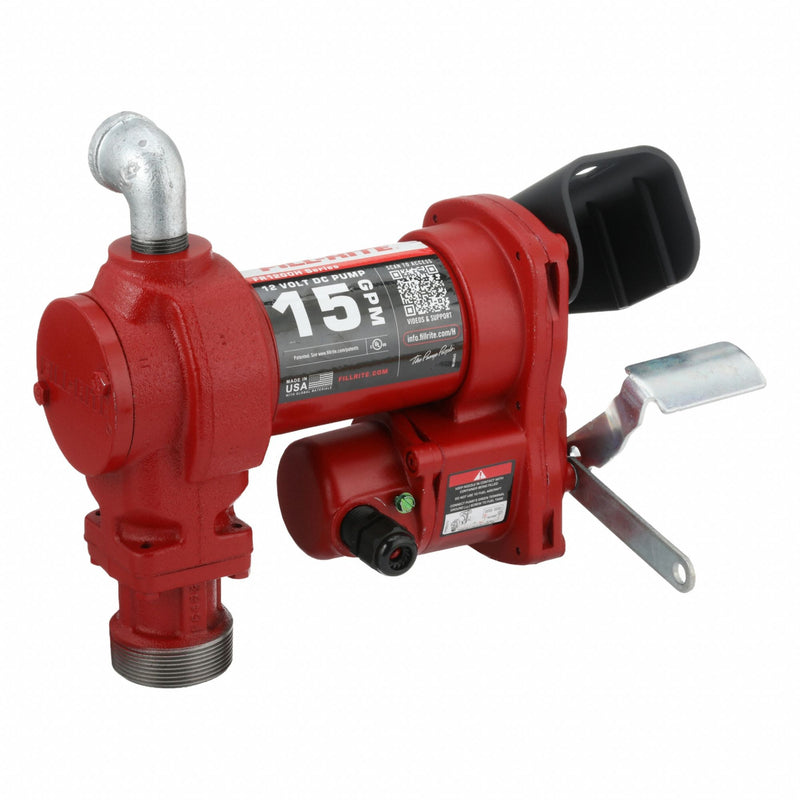

Fill-Rite FR1204H Electric Drum Pump, 12 V DC, 1/4 hp HP, 15 gpm Max. Flow Rate, Pump Only, Cast Iron, Bung
UPC: 089404223390 | Harmonization / Schedule B : 8413.19.0000
Country of Origin: United States | Shipping Weight: 23.0 lbs
Original price
$415.25
-
Original price
$415.25
Original price
$415.25
$415.25
-
$415.25
Current price
$415.25
Fuel Transfer Pump, Max. Head Pressure 16 psi, Max. Outlet Pressure 16 psi, Rated Voltage 12V DC, Suction Tube OD 1 in, Includes Bung Adapter Yes, Runs Dry Yes, Thermal Protection Yes, Power Source Electric, Variable Speed No, Includes Discharge Hose No, Self-Priming Yes, Compatible Chemicals Biodiesel, Diesel, Ethanol, Gasoline, Kerosene, Mineral Spirits
| Inlet Size | 1 in |
|---|---|
| Outlet Size | 3/4 in |
| Overall Length | 12 1/4 in |
| Pump Mount Size | 2 in |
| Overall Width | 9 in |
| Manufacturers Warranty Length | 2 yr |
| Overall Height | 9 in |
| Bung Connection Dia. | 2 in |
| Height Above Container | 8 3/8 in |
| For Container Size | 35 gal, 55 gal, 275 gal, 500 gal |
| Adapter Connection Diameter | 2 in |
| Spout Length | 6 in |
| Spout Discharge Size | 3/4 in |
| Wire Rope Length | 12 1/4 in |
| Voltage | 12V DC |
| HP | 1/4 |
| Housing Material | Cast Iron |
| GPM | 15 gpm |
| Seal Material | Buna-N |
| RPM | 2600 |
| Pump Design | Rotary Vane |
| Self-Priming | Yes |
| Seal Type | O-ring |
| Max. Viscosity | 4 cSt |
| Transfer Pump Application | Agriculture, Barrel Mounting, Construction, Stationary Installations, Tank |
| Compatible Fluids | Biodiesel, Diesel, Gasoline |
| Duty Cycle | 30 Minutes On/30 Minutes Off |
| Metered | No |
| Bypass Valve | Yes |
| Bearing Type | Adjustable |
| Standards | cULus |
| Pressure Range | 16 psi |
| Adapter Material | Cast Iron |
| Motor Enclosure | Explosion Proof |
| Agency Compliance | cULus |
| Wetted Materials | Buna-N, Ceramic, Cork, Stainless Steel, Steel, Thermoset, Viton |
| Includes | Installation Components |
| Motor Type | Permanent Magnet |
| Housing Material - Pumps | Cast Iron |
| Max. Head - Pumps | 37 ft |
| Motor RPM | 2,600 RPM |
| Mount Type | Bung |
| Max. Outlet Pressure | 16 psi |
| Includes Suction Tube | No |
| Full Load Amps | 26.0 A |
| Runs Dry | Yes |
| Food Grade | No |
| Diesel Exhaust Fluid Compatible | No |
| Compatible Chemicals | Biodiesel, Diesel, Ethanol, Gasoline, Kerosene, Mineral Spirits |
| For Media Type | Biodiesel, Diesel, Ethanol, Gasoline, Kerosene, Mineral Spirits |
| Includes Nozzle | No |
| Pump Connection Type | NPT |
| Max. Fluid Temp. | 150 Degrees F |
| Includes Discharge Hose | No |
| Max. Flow Rate | 15 gpm |
| Spout Material | Aluminum |
| Min. Fluid Temp. | -40 Degrees F |
| Discharge Connection Type | FNPT |
| Includes Bung Adapter | Yes |
| Max. Head Pressure | 16 psi |
| Motor HP | 1/4 hp |
| Variable Speed | No |
| Rated Voltage | 12 V DC |
| Thermal Protection | Yes |
| Explosion Proof | Yes |
| Power Source | Corded Electric |
| Adapter Connection Type | MNPT |
| Static Protection | Grounding Line Included |
| For Container Type | Tank |
| Container Cover Type Included | No Cover Included |
| Pump Technology | Vane |
| Maximum Fluid Temperature | 150 Degrees F |
| Maximum Viscosity | 4 cSt |
| Minimum Fluid Temperature | -40 Degrees F |
| Housing Finish | Baked Enamel |
| Hazardous Location Class | Class I/Division 1 |
| Full Load Current | 26 A |
| Motor Horsepower | 1/4 hp |
| Adapter Connection Standard | MNPT |
| Motor Speed | 2,600 RPM |
| Includes Spout | No |
| Maximum Head Pressure | 16 psi |
| Pump Connection ID | 3/4 in |
| Motor Enclosure Design | Totally Enclosed Non-Ventilated |
| Wetted Material | Buna-N/Ceramic/Cork/Stainless Steel/Steel/Thermoset/Viton |
| Pump Connection OD | 1 1/8 in |
| Maximum Flow Rate | 15 gpm |
| Container Type Included | Drum |
| Chemical Compatibility | Biodiesel, Diesel, Ethanol, Gasoline, Kerosene, Mineral Spirits |
| Includes Follower Plate | No Follower Plate Included |
| Maximum Outlet Pressure | 16 psi |
| Meter Type Included | No Meter Included |
| Maximum Head | 37 ft |
| Power Source - TS Only | Corded Electric |
| Country of Origin | United States |
