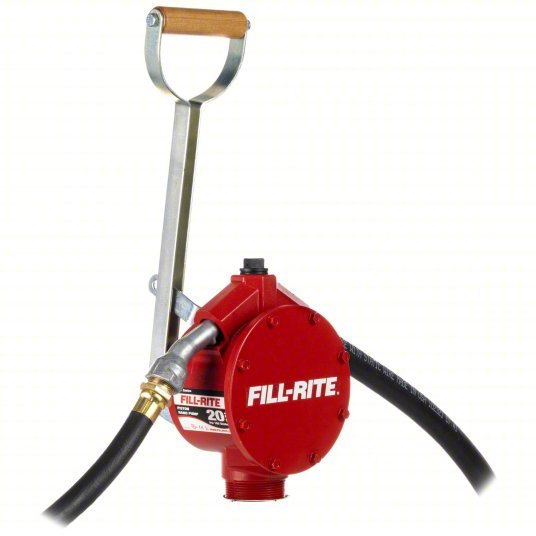

Fill-Rite FR152 Hand Operated Drum Pump with Hose & Nozzle, Bung, Lever, 20 gpm @ 100 strokes, MNPT

Hand Operated Drum Pump, Max. Outlet Pressure 50 psi, Pump Connection OD 2 1/8 in, Spout Connection Size 3/4 in, Self-Priming Yes, Metered No, Hose Length 8 ft, Includes Discharge Hose Yes, Piston Material Aluminum, Features Flow Direction Can Be Reversed, Piston Action, Seal Material Buna-N, For Use With Ideal for Gasoline, Diesel Fuel, Light Oil and Kerosene, Adapter Connection Type MNPT, Discharge Connection Type FNPT, For Container Type Drum, Hose Cover Material Neoprene

Action Type	Lever
For Media Type	Antifreeze, Automatic Transmission Fluid, Biodiesel, Brake Fluid, Diesel Fuel, E85, Ethylene Glycol, Gasoline, Glycerin, Hydraulic Oils, Kerosene, Motor Oils, Stoddard Solvent
Max. Flow Rate	20 gal per 100 strokes
Max. Viscosity	1,500 SUS
Diesel Exhaust Fluid Compatible	No
Wetted Materials	301 Stainless Steel, Aluminum, Buna-N, PTFE, Zinc Plated Steel
Includes Suction Tube	Yes
For Use With	Ideal for Gasoline, Diesel Fuel, Light Oil and Kerosene
Discharge Tube Outlet ID	3/4 in
Hose Tube Material	Nitrile
Discharge Tube Outlet OD	7/8 in
Features	Flow Direction Can Be Reversed, Piston Action
Includes	5/8 in x 8 ft. Hose with Static Ground Wire, Nozzle Spout 3/4 in
Self-Priming	Yes
Agency Compliance	UL Listed
Max. Flow GPM	20 gpm
Seal Material	Buna-N
Metered	No
Suction Tube Material	Steel
Piston Material	Aluminum
Adapter Material	Aluminum
Nozzle Operation	Manual
Max. Fluid Temp.	150 Degrees F
Compatible Chemicals	Antifreeze, Automatic Transmission Fluid, Biodiesel, Brake Fluid, Diesel Fuel, E85, Ethylene Glycol, Gasoline, Glycerin, Hydraulic Oils, Kerosene, Motor Oils, Stoddard Solvent
Discharge Connection Type	FNPT
Includes Discharge Hose	Yes
Pump Connection ID	2 in
Pump Connection OD	2 1/8 in
Power Source	Hand Operated
Not Recommended Chemicals	Acetic Acid (Glacial), Acetic Acid 20%, Acetic Acid 80%, Acetone, Ammonia (Liquids), Ammonium Hydroxide, Anhydrous Ammonia, Calcium Chloride, Chromic Acid 10%, Chromic Acid 30%, Chromic Acid 5%, Chromic Acid 50%, Citric Acid 50%, Cyclohexane, DEF, Deionized Water, Ethyl (Ethanol), Ethyl Acetate, Fertilizers, Formic Acid, Fresh Water, Fungicides, Heptane, Herbicides, Hexane, Hydrochloric/Muriatic Acid (100%), Hydrochloric/Muriatic Acid (20%), Hydrochloric/Muriatic Acid (37%), Hydrofluoric Acid (20%), Hydrofluoric Acid (75%), Hydrofluoric Acid 100%, Isopropyl (Isopropanol), Lacquer Thinners, Lithium Grease, Methyl (Methanol), Methyl Chloride, Methyl Ethyl Ketone (MEK), Naphtha, Nitric Acid (10% Solution), Nitric Acid (20% Solution), Nitric Acid (50% Solution), Nitric Acid (Concentrated Solution), Paint, Paint Thinner, Pesticides, Phosphoric Acid (40% Solution), Potassium Hydroxide (50%), Salt Water, Sodium Bicarbonate (10%), Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide/Caustic Soda (20%), Sodium Hydroxide/Caustic Soda (50%), Sodium Hydroxide/Caustic Soda (80%), Sodium Hypochlorite/Bleach (to 20%), Sulfuric Acid (10% - 75%), Sulfuric Acid (75% - 100%), Sulfuric Acid (to 10%), Toluene, Trichlorethylene (50%), Turpentine, Windshield Washer Fluid, Xylene
Hose Cover Material	Neoprene
Nozzle Material	Aluminum
Food Grade	No
Includes Nozzle	Yes
Suction Tube OD	1 in
Includes Bung Adapter	Yes
Includes Spout	No
Runs Dry	Yes
Suction Tube ID	1 in
For Container Type	Drum
Max. Head Pressure	50 psi
Min. Operating Temp.	0 Degrees F
Max. Oil Flow	25 oz per stroke
Max. Head - Pumps	6 ft
Housing Material - Pumps	Aluminum
Adapter Connection Type	MNPT
Max. Outlet Pressure	50 psi
Mount Type	Bung
