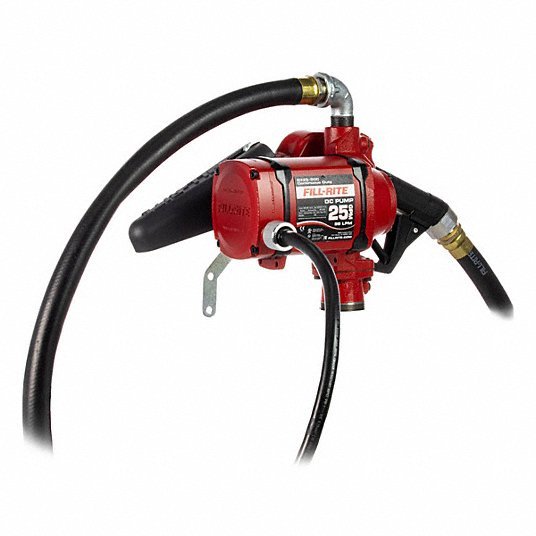

Fill-Rite NX25-DDCNB-AA Fuel Transfer Pump with Hose & Nozzle, Bung, 25 gpm Max. Flow Rate, 24V DC, Auto
Original price
$1,740.59
-
Original price
$1,740.59
Original price
$1,740.59
$1,740.59
-
$1,740.59
Current price
$1,740.59
Fuel Transfer Pump, Max. Head Pressure 25 psi, Max. Outlet Pressure 21 psi, For Use With Biodiesel Blends Up to B20, Diesel Fuel, Gasohol Up to E15, Gasoline, Kerosene, Mineral Spirits, Rated Voltage 24V DC, Hose Length 18 ft, Cord Length 20 ft, Nozzle Operation Automatic, Includes Discharge Hose Yes, Self-Priming Yes, Compatible Chemicals Biodiesel, Diesel, Gasohol, Gasoline, Kerosene, Mineral Spirits
| Voltage | 12 to 24V DC |
| Application | Agriculture; Barrel Mounting; Construction; Stationary Installations; Tank |
| HP | 1/3 |
| Housing Material | Cast Iron |
| GPM | 25 gpm |
| Seal Material | Buna-N |
| RPM | 3500/400 |
| Pump Design | Rotary Vane |
| Self-Priming | Yes |
| Seal Type | Mechanical |
| Max. Viscosity | 200 SUS |
| Item | Fuel Transfer Pump |
| Duty Cycle | Continuous |
| Standards | ATEX , CE, cUL, IECEX |
| Features | Automatic Power Down, High Flow Rates, Improved Suction Lift, Intelligent Tones, Light Weight, Low Amp Draw, Magnetic Replaceable Switch, Removable Power Cord |
| Nozzle Material | Buna-N |
| Bearing Type | Ball |
| Pressure Range | 0 to 21 psi |
| Nozzle Type | Automatic |
| Compatible Fluids | Biodiesel Blends Up to B20, Diesel Fuel, Gasohol Up to E15, Gasoline, Kerosene, Mineral Spirits |
| Metered | No |
| Includes | Cable, Discharge Hose, Nozzle |
| For Use With | Biodiesel Blends Up to B20, Diesel Fuel, Gasohol Up to E15, Gasoline, Kerosene, Mineral Spirits |
| Bypass Valve | Yes |
| Transfer Pump Application | Agriculture, Barrel Mounting, Construction, Stationary Installations, Tank |
| Agency Compliance | ATEX, CE, cULus, IECEx |
| Housing Material - Pumps | Cast Iron |
| Max. Head - Pumps | 48 ft |
| Motor RPM | 8.75 RPM |
| Max. Flow Rate | 25 gpm |
| Nozzle Fluid Compatibility | Diesel |
| Compatible Chemicals | Biodiesel, Diesel, Gasohol, Gasoline, Kerosene, Mineral Spirits |
| Rated Voltage | 24V DC |
| Max. Head Pressure | 25 psi |
| Mount Type | Bung |
| Motor HP | 1/3 hp |
| Full Load Amps | 30.0 A |
| Nozzle Operation | Automatic |
| Includes Discharge Hose | Yes |
| Max. Outlet Pressure | 21 psi |
| Includes Nozzle | Yes |
| For Media Type | Biodiesel, Diesel, Gasohol, Gasoline, Kerosene, Mineral Spirits |
