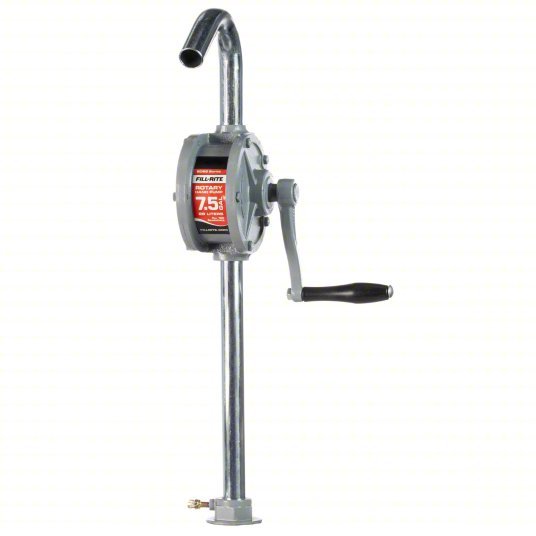

Fill-Rite SD62 Hand Operated Drum Pump Rotary, 55 gal For Container Size, 1,500 SUS Max. Viscosity

Fill-Rite SD62 Hand Operated Drum Pump Rotary, 55 gal For Container Size, 1,500 SUS Max. Viscosity

$102.99 - $102.99
$102.99
$102.99 - $102.99
$102.99
Hand Operated Drum Pump, Max. Outlet Pressure 50 psi, Pump Connection OD 2 1/8 in, Spout Connection Size 3/4 in, Self-Priming Yes, Metered No, Hose Length Not Applicable, Includes Discharge Hose No, Features Rotary Action Hand Pump w/ 2 in NPT inlet, Seal Material Buna-N, Adapter Connection Type NPT, For Container Type Drum, Hose Cover Material Not Applicable, Includes Bung Adapter Yes, Includes Nozzle No, Includes Spout Yes, Runs Dry Yes
Action Type Rotary
For Media Type Antifreeze, Automatic Transmission Fluid, Biodiesel, Brake Fluid, DEF, Diesel Fuel, Ethylene Glycol, Glycerin, Hydraulic Oils, Kerosene, Motor Oils, Stoddard Solvent, Windshield Washer Fluid
Max. Flow Rate 9.6 oz per stroke
Max. Viscosity 1,500 SUS
Wetted Materials Buna-N, Cast Iron
Suction Tube ID 1 in
Max. Fluid Temp. 120 Degrees F
Discharge Tube Outlet ID 3/4 in
Food Grade No
Includes 1 1/2 in and 2 in NPT Bung Mounts, No Drip Valve, Pail Spout, Telescoping Steel Suction Pipe
Suction Tube OD 1 1/8 in
Metered No
Discharge Tube Outlet OD 7/8 in
Runs Dry Yes
Includes Suction Tube Yes
Diesel Exhaust Fluid Compatible No
Type Pail Spout
Features Rotary Action Hand Pump w/ 2 in NPT inlet
GPM 7.5
Pump Body Material Cast Iron
For Use With Machine Oil and Petroleum Products
Application To Transfer Diesel, Kerosene, Machine Oil, Petroleum Products
Item Hand Operated Drum Pump
Housing Material Cast iron
Self-Priming Yes
Adapter Material Cast Iron
Suction Tube Material Steel
Seal Material Buna-N
Min. Operating Temp. 0 Degrees F
Max. Head - Pumps 6 ft
Not Recommended Chemicals Acetic Acid (Glacial), Acetic Acid 20%, Acetic Acid 80%, Acetone, Ammonia (Liquids), Ammonium Hydroxide, Anhydrous Ammonia, Calcium Chloride, Chromic Acid 10%, Chromic Acid 30%, Chromic Acid 5%, Chromic Acid 50%, Citric Acid 50%, Cyclohexane, DEF, Deionized Water, E85, Ethyl (Ethanol), Ethyl Acetate, Fertilizers, Formic Acid, Fresh Water, Fungicides, Heptane, Herbicides, Hexane, Hydrochloric/Muriatic Acid (100%), Hydrochloric/Muriatic Acid (20%), Hydrochloric/Muriatic Acid (37%), Hydrofluoric Acid (20%), Hydrofluoric Acid (75%), Hydrofluoric Acid 100%, Isopropyl (Isopropanol), Lacquer Thinners, Lithium Grease, Methyl (Methanol), Methyl Chloride, Methyl Ethyl Ketone (MEK), Naphtha, Nitric Acid (10% Solution), Nitric Acid (20% Solution), Nitric Acid (50% Solution), Nitric Acid (Concentrated Solution), Paint, Paint Thinner, Pesticides, Phosphoric Acid (40% Solution), Potassium Hydroxide (50%), Salt Water, Sodium Bicarbonate (10%), Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide/Caustic Soda (20%), Sodium Hydroxide/Caustic Soda (50%), Sodium Hydroxide/Caustic Soda (80%), Sodium Hypochlorite/Bleach (to 20%), Sulfuric Acid (10% - 75%), Sulfuric Acid (75% - 100%), Sulfuric Acid (to 10%), Toluene, Trichlorethylene (50%), Turpentine, Windshield Washer Fluid, Xylene
Power Source Hand Operated
Includes Bung Adapter Yes
Max. Oil Flow 9.6 oz per stroke
Includes Discharge Hose No
Pump Connection ID 2 in
Includes Spout Yes
Includes Nozzle No
Housing Material - Pumps Cast Iron
Pump Connection OD 2 1/8 in
Max. Head Pressure 50 psi
Compatible Chemicals Antifreeze, Automatic Transmission Fluid, Biodiesel, Brake Fluid, Diesel Fuel, Ethylene Glycol, Glycerin, Hydraulic Oils, Kerosene, Motor Oils, Stoddard Solvent, Windshield Washer Fluid
For Container Type Drum
Spout Material Aluminum
Grease NT
Adapter Connection Type NPT
Gear Lube NT
Max. Outlet Pressure 50 psi
Mount Type Bung
