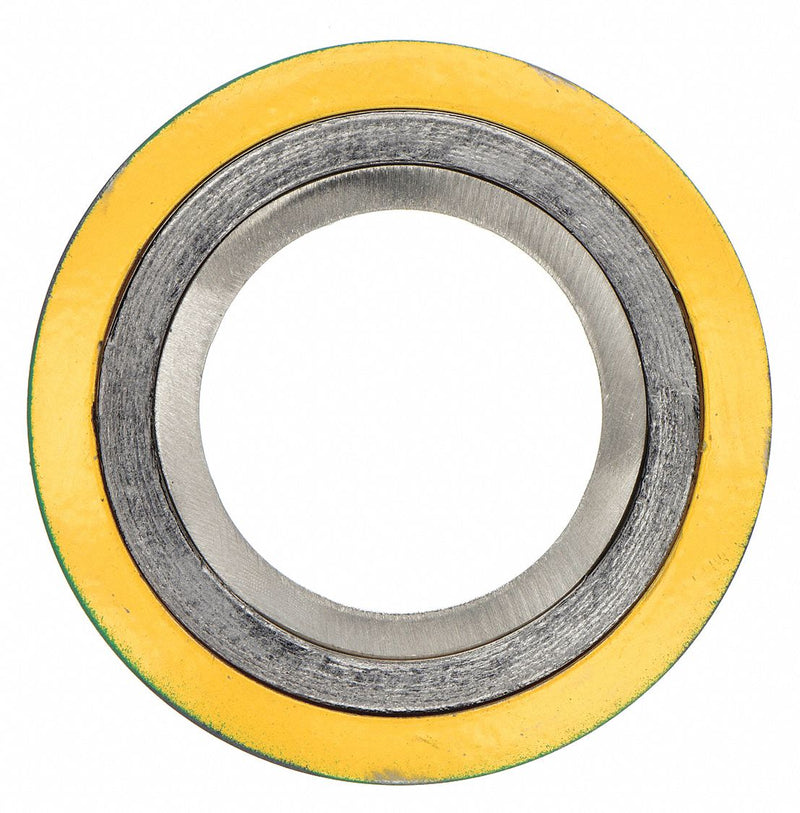

Flexitallic CGI Spiral Wound Flange Gasket, ANSI Class 300/400/600, 1-1/2 in Pipe, 316L SS Winding / Graphite Filler
Original price
$16.22
-
Original price
$16.22
Original price
$16.22
$16.22
-
$16.22
Current price
$16.22
Spiral Wound Flange Gasket: Graphite Filler, 316L Stainless Steel Winding, For 1 1/2 in Pipe. Vendor: Flexitallic. Mfr Model: CGI. Country of Origin: China.
| Inside Ring Material | 316L Stainless Steel |
|---|---|
| Outside Ring Material | Carbon Steel |
| Filler Material | Graphite |
| For Pipe Size | 1-1/2 in |
| Inside Diameter | 1-3/4 in |
| Outside Diameter | 3-3/4 in |
| Thickness | 3/16 in |
| Stripe Color | Gray |
| Outside Rim Color | Green |
| FDA Approved | No |
| Minimum Operating Temperature | -400 °F |
| Maximum Operating Temperature | 842 °F |
| Maximum Operating Pressure | 6,251.14 psi |
| Resistance Properties | Chemical-Resistant |
| Features | Increased Compressive Force for Blow-Out Prevention and is Specified for High Pressure; Temperature Service or where Corrosive or Toxic Media are Present |
| For Flange Surface Type | Flat Surface; Raised Surface |
| For DIN PN | PN10; PN100; PN16; PN160; PN25; PN250; PN40; PN64 |
| For Flange ANSI Class | 300; 400; 600 |
| Standards | ASME B16.20; ASME B16.5; B16.47; BS3381 |
| Winding Material | 316L Stainless Steel |
| Country of Origin | China |
