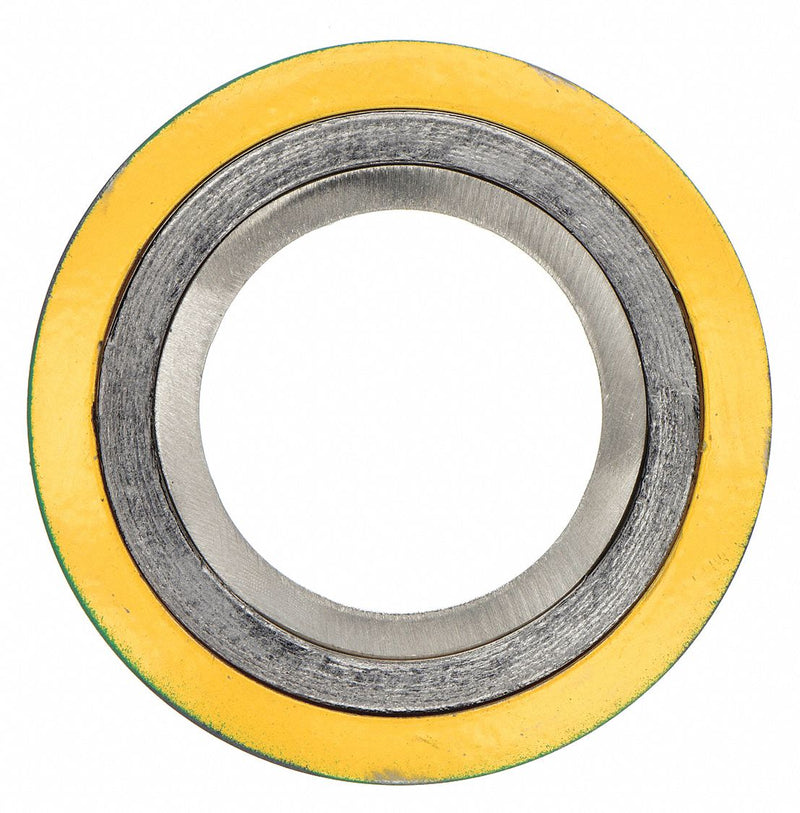

Flexitallic CGI Spiral Wound Flange Gasket, ANSI Class 300, 8 in Pipe, 12-1/8 in OD, 316L SS Winding / Graphite Filler
Original price
$145.89
-
Original price
$145.89
Original price
$145.89
$145.89
-
$145.89
Current price
$145.89
Spiral Wound Flange Gasket: Graphite Filler, 316L Stainless Steel Winding, For 8 in Pipe. Vendor: Flexitallic. Mfr Model: CGI. Country of Origin: China.
| Inside Ring Material | 316L Stainless Steel |
|---|---|
| Outside Ring Material | Carbon Steel |
| Filler Material | Graphite |
| For Pipe Size | 8 in |
| Inside Diameter | 8-1/2 in |
| Outside Diameter | 12-1/8 in |
| Thickness | 3/16 in |
| Stripe Color | Gray |
| Outside Rim Color | Green |
| FDA Approved | No |
| Minimum Operating Temperature | -400 °F |
| Maximum Operating Temperature | 842 °F |
| Maximum Operating Pressure | 6,251.14 psi |
| Resistance Properties | Chemical-Resistant |
| Features | Increased Compressive Force for Blow-Out Prevention and is Specified for High Pressure; Temperature Service or where Corrosive or Toxic Media are Present |
| For Flange Surface Type | Flat Surface; Raised Surface |
| For DIN PN | PN10; PN100; PN16; PN160; PN25; PN250; PN40; PN64 |
| For Flange ANSI Class | 300 |
| Standards | ASME B16.20; ASME B16.5; B16.47; BS3381 |
| Winding Material | 316L Stainless Steel |
| Country of Origin | China |
