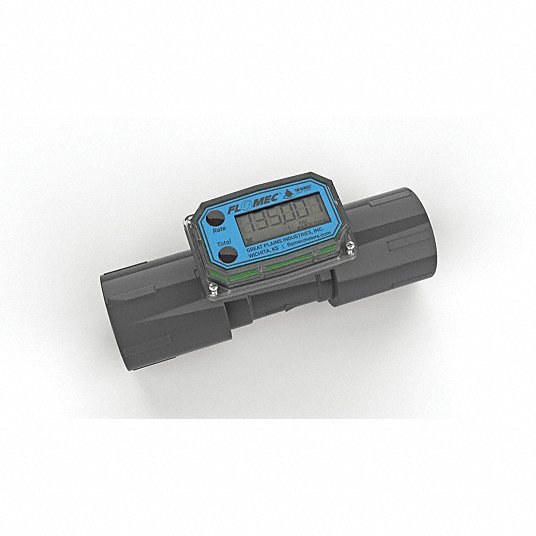

Flomec TM15NQ9GMB Watermeter Flow Meter, Turbine, 1 1/2 in FNPT, 1 1/2 in Connection Size, FNPT, 32°F to 140°F
Original price
$765.59
-
Original price
$765.59
Original price
$765.59
$765.59
-
$765.59
Current price
$765.59
Watermeter, Product Type Flow Meter, Flowmeter Type Turbine, Accuracy +/-3 Percent, Connection Size 1 1/2 in, Connection Type FNPT, Compatible Flow Material Water, Media Temperature - Maximum 140 Degrees F, Media Temperature - Minimum 32 Degrees F, Viscosity - Maximum 20 cps, Housing Material PVC, Rotor Material PVDF, Shaft Material Tungsten Carbide, Wetted Material 316 Stainless Steel, Ceramic, PVC, PVDF, Tungsten Carbide, Standards CE Certified, Unit Of Measure Gallons, Liters
| Standards | CE Certified |
| Display Type | Digital |
| Sensor Type | Turbine |
| Flow Range (GPM) | 10 to 100 |
| Max. Viscosity | 20 cps |
| Flow Range (LPM) | 38 to 380 |
| Display Units | Barrels, Cubic Centimeters, Cubic Feet, Cubic Meters, Imperial Gallons, Liters, Ounces, Quarts, gal |
| Flow Range @ GPH | 600 to 6000 |
| Max. Pressure | 225 psig |
| Housing Material | PVC |
| Wetted Materials | 316 Stainless Steel, Alumina Ceramic, PVC, PVDF, Tungsten Carbide |
| Frequency Range (Hz) | 36 to 360 |
| Rotor Type | PVDF |
| Connection Type | FNPT |
| Flow Range | 10 to 100 gpm |
| Fluid Temp. Range | 32 Degrees to 140 Degrees F |
| Accuracy (%) | +/- 3 |
| Power Requirement | Two Alkaline AAA Batteries |
| Accuracy | +/-3% |
| Flow Material | Water-based non-corrosive fluids |
| Type | Turbine |
| Flowmeter Type | Turbine |
| Viscosity - Maximum | 20 cps |
| Flow Rate - Maximum | 100 gpm |
| Compatible Flow Material | Water |
| Shaft Material | Tungsten Carbide |
| Media Temperature - Minimum | 32 Degrees F |
| Mounting Orientation | Universal |
| Rotor Material | PVDF |
| Media Temperature - Maximum | 140 Degrees F |
| Frequency - Minimum | 1/4 kHz |
| Output Type | 4-20 mA |
| Product Type | Flow Meter |
| Unit Of Measure | Gallons, Liters |
| Flow Rate - Minimum | 10 gpm |
| Frequency - Maximum | 3 kHz |
| Operating Pressure - Maximum | 225 psi |
| Wetted Material | 316 Stainless Steel, Ceramic, PVC, PVDF, Tungsten Carbide |
| Includes Totalizer | Yes |
