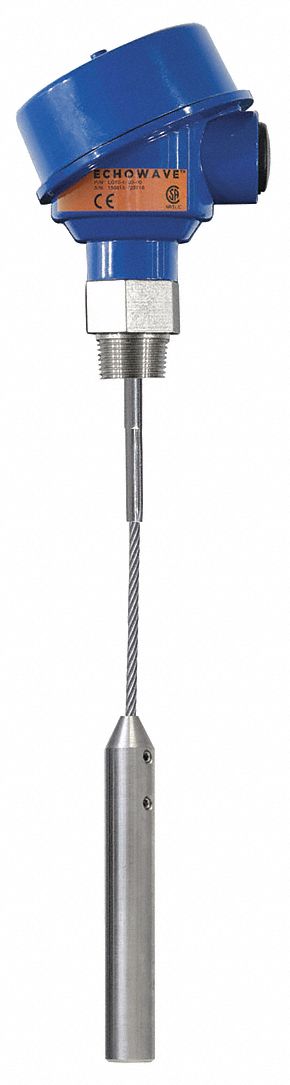

Flowline LG11-2003-01 Cable Guided Wave Radar, Liquid Level Sensor Transmitter, Vertical, 3/4 in NPT, NPT, NEMA 4
UPC: | Harmonization / Schedule B : 9026.10.2080
Country of Origin: United States | Shipping Weight: 3.35 lbs
Original price
$1,961.28
-
Original price
$1,961.28
Original price
$1,961.28
$1,961.28
-
$1,961.28
Current price
$1,961.28
Cable Guided Wave Radar, Product Type Liquid Level Sensor Transmitter, Connection Size 3/4 in, For Media Type Oils, Wastewater, Water, Connection Type NPT, Body Material Aluminum, Accuracy +/-3 mm, Range 18 ft, Stem Length 216 in, Operating Pressure - Maximum 250 psi, Media Temperature - Maximum 302 Degrees F, Mounting Orientation Vertical, Enclosure Rating NEMA 4, Number of Outputs - Analog 1, Float Diameter 7/8 in, Float Length 216 in, Output Wire Configuration 3-Wire
| Classification | General Purpose |
|---|---|
| Mounting | 3/4 in G Thread, 3/4 in NPT |
| Range | 18 ft |
| Accuracy | +/-3 mm |
| Resolution | 2 mm |
| Max. Pressure | 250 psi |
| Dead Band | 2 in Bottom, 4 in Top |
| Enclosure Material | Aluminum |
| Display | None |
| Input Voltage | 18 to 30V DC |
| Output | 4 to 20mA, 3-wire |
| Enclosure Rating | NEMA 4 |
| Material | 316L Stainless Steel |
| Standards | CE, CRN, CSA, NRTL, RoHS |
| Temp. Range | -40 to 302 Degrees F |
| Configuration | WebCal |
| Stem Material | 316 Stainless Steel |
| Voltage | 18 to 30V DC |
| Body Material | Aluminum |
| Float Material | 316 Stainless Steel |
| Product Type | Liquid Level Sensor Transmitter |
| Output Wire Configuration | 3-Wire |
| Output Voltage Range | 4 to 20mA |
| Media Temperature - Maximum | 302 Degrees F |
| Probe Material | 316 Stainless Steel |
| Mounting Orientation | Vertical |
| Number of Outputs - Analog | 1 |
| Connection Type | NPT |
| For Media Type | Oils, Wastewater, Water |
| Operating Pressure - Maximum | 250 psi |
| Nameplate Voltage | 18/30V DC |
| Country of Origin | United States |
