| Item |

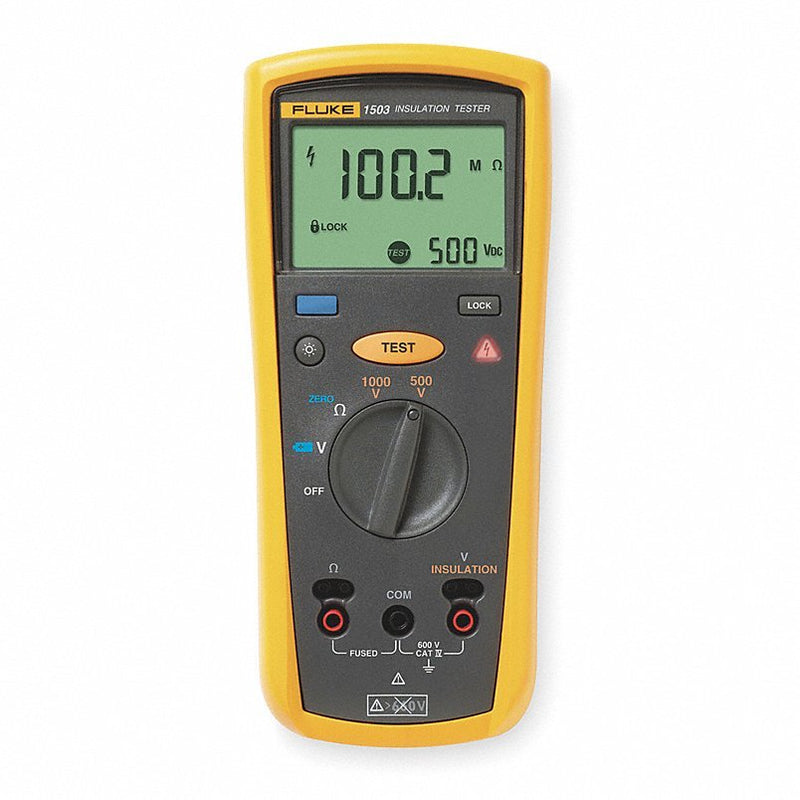

Megohmmeter |
| Output Test Voltage |
500/1000V DC |
| Insulation Resistance Range |
0.1 to 2000 megohm |
| Accuracy |
+/-2% + 3 Digits |
| Live Circuit Detection |
Greater Than 30V |
| Resistance Range |
0 to 20 kilohm |
| Display |
Multiline LCD |
| Features |
Save Battery Power with Auto Power Off, Read Measurements Easily with Large, Backlit Display, CAT IV 600 V Overvoltage Category Rating for Added User Protection, Remote Probe, Test Leads, Probes and Alligator Clips Included with Each Tester, Accepts Optional Fluke TPAK Magnetic Hanging SysteM Ohms to Free Your Hands for Other Work, 4 AA Alkaline Batteries (NEDA 15 A or IEC LR6) for At Least 1000 Insulation Tests |
| Power Source |
Battery |
| Earth Ground Resistance Range |
0.01 to 20 kilohm |
| Includes |
Remote Probe, Test Leads, Test Probes, Alligator Clips, Meter Boot, Batteries and Instructions |
| Auto Power Off |
Yes |
| Safety Rating |
Cat IV 600V |
| Product Type |
Tester Only |
| Minimum Operating Temperature |
-4 Degrees F |
| Safety Rating_Subhead |
CAT IV 600V |
| Minimum Insulation Resistance |
0.01 kiloohm |
| Waterproof |
No |
| Resistance Accuracy |
+/-1.50% +3 digits |
| Dustproof |
No |
| Includes Batteries |
Yes |
| Capacitance Auto Discharge |
Yes |
| Pass/Fail Selection Limits |
No |
| Maximum DC Voltage Measured |
600 V |
| Display Type |
Digital |
| Maximum Insulation Resistance |
20 kiloohm |
| Test Current |
1 mA |
| Test Voltage |
1,000V DC, 500V DC |
| Timed Ramp Voltage Test |
No |
| Input Impedance |
3 megaohm |
| Insulation Resistance Resolution |
01 ohm to 20 kilohm |
| Minimum DC Voltage Measured |
0.1 V |
| PI/DAR Testing |
No |
| IP Rating |
IP40 |
| Operating Voltage |
600V AC/DC |
| Power Source_Org Design Only |
Battery Operated |
| Insulation Limit Alarm |
No |
| Maximum AC Voltage Measured |
600 V |
| USB Data Download Included |
No |
| UPC |
095969319812 |
| Megohmmeter Features |
Standard |
| Remote Test Probe Included |
Yes |
| Testing Functions |
Insulation |
| Number of Batteries Required |
4 |
| Greater Than 30V Warning |
Yes |
| Battery Chemistry |
Alkaline |
| Parameters Measured |
Resistance |
| CAT Safety Rating |
CAT IV 600V |
| Display Screen Type |
LCD |
| Standards |
ANSI/ISA 82.02.01 (61010-1) 2004, CAN/CSA-C22.2 NO. 61010-1-04, IEC/EN 61010-1 |
| Bluetooth Compatible |
No |
| Live Circuit Voltage |
Greater Than30V |
| Number of Digits |
3 |
| Maximum Operating Temperature |
131 Degrees F |
| Backlit Digital Display |
Yes |
| Maximum Operating Temperature |
131 Degrees F |
| Package Quantity |
1 |
