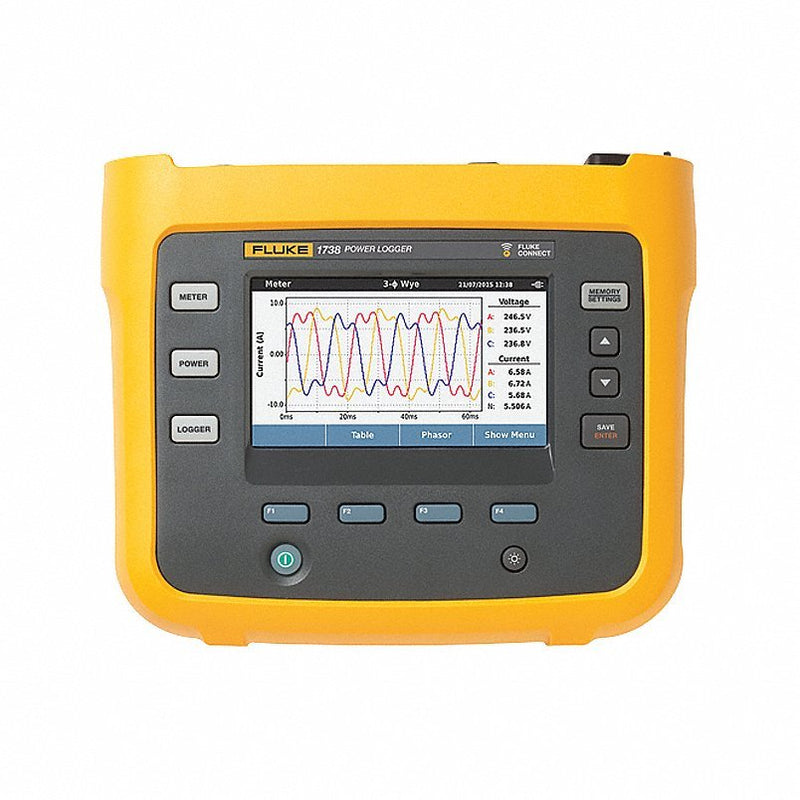

FLUKE-1738/EUS/WWG Power Logger Kit: CAT III 1000V/CAT IV 600V, 6,000 A Max AC Current Measured, 4 Volt Channels
Original price
$9,235.74
-
Original price
$9,235.74
Original price
$9,235.74
$9,235.74
-
$9,235.74
Current price
$9,235.74
| /
Power Logger Kit, Calibration Certificate NIST, Current Channels 4, For Phase Single; Split; Three, Includes (3) Line Cords, (4) 1500 A Flexible Current Probes, (4) Alligator Clips, Color Coding Set, Fluke 1738, Magnetic Hanging Strap, Soft Case, Voltage Test Leads, Maximum AC Current Measured 6,000 A, Peak Capture No, Power Factor -1 to 1, Voltage Channels 4, Calibration Frequency 42.5 to 69 Hz, Communication Protocol Bluetooth, USB-A, USB-Mini, Wi-Fi, Crest Factor Less Than 3
| Item |
Power Logger Kit |
| Sampling Rate |
10.24kHz |
| Phase |
3 |
| Includes |
(3) Line Cords, (4) 1500A Flexible Current Probes, (4) Alligator Clips, Color Coding Set, Fluke 1738, Soft Case, USB Flash Drive Containing Fluke Energy Analyze Plus Software, Voltage Test Leads |
| Max. Watts |
1000TW |
| Kit Current Capability |
1500A |
| Display |
Color LCD Touch Screen |
| Voltage Channels |
4 |
| Harmonic Capture Range |
0th |
| Min. Transient Duration |
20uS |
| Voltage Accuracy |
+/-0.2% |
| Max. VA |
1000TVA |
| Display Resolution |
480 x 272 |
| Data Logging |
Yes |
| Storage |
2 GB |
| AC Response |
5 kHz |
| Current Accuracy |
+/-1% |
| Power Factor |
-1 to 1 |
| Peak Capture |
No |
| Max. AC Voltage |
1,000 |
| Max. AC Amps |
6,000 A |
| Calibration Frequency |
42.5 to 69 Hz |
| Safety Rating |
CAT III 1000V, CAT IV 600V |
| Calibration Certificate |
NIST |
| Crest Factor |
Less Than 3 |
| Current Channels |
4 |
| Features Included |
Event Waveform Capture |
| Channels (Voltage/Current) |
4/4 |
| Current Probes Included |
i17XX-flex1500 Current Probes |
| Communication Protocol |
Bluetooth, USB-A, USB-Mini, Wi-Fi |
| Maximum AC Current Measured |
6,000 A |
| For Phase |
Single; Split; Three |
| IP Rating |
IP50 |
| Package Quantity |
1 |
