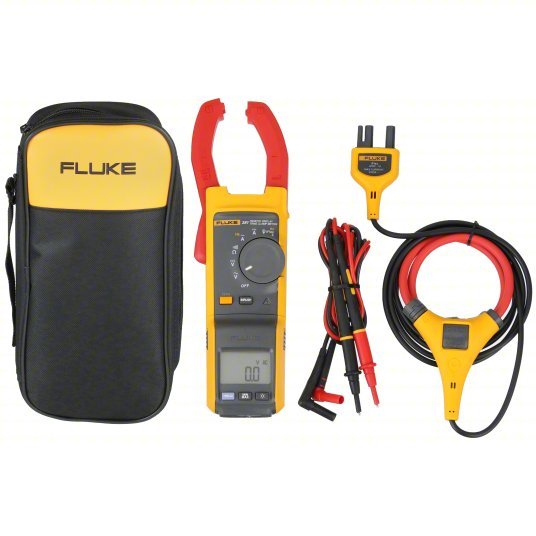

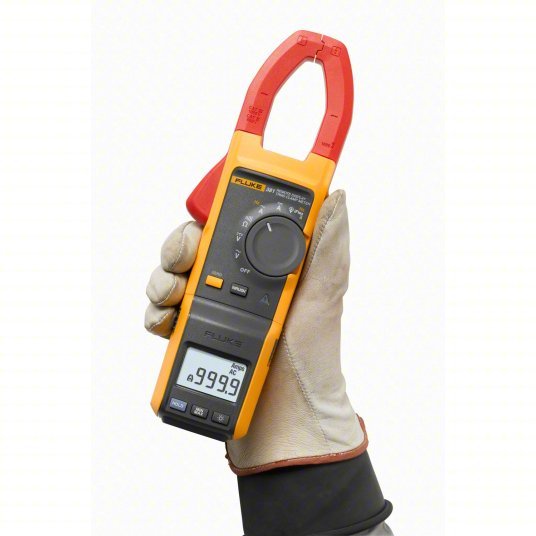

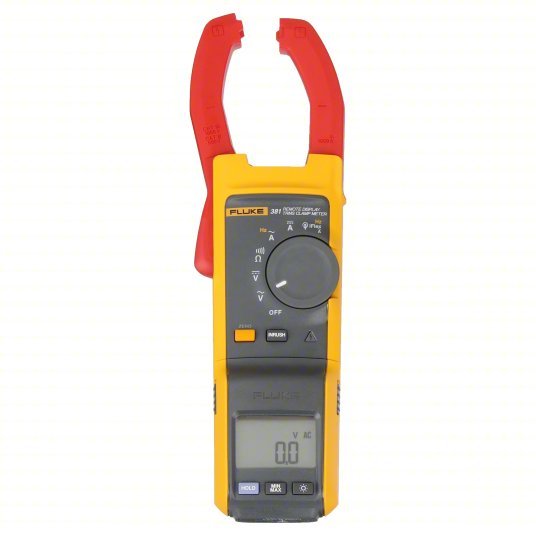

FLUKE-381 Digital Clamp Meter Clamp-Jaw Jaw, CAT III 1000V/CAT IV 600V, TRMS, 999.9 A Max. AC Current

Digital Clamp Meter, Audible Continuity Yes, Safety Rating CAT III 1000V, CAT IV 600V, AC Response Calculation TRMS, Maximum AC Current Measurement 999.9 A, Maximum AC Voltage Measurement 1,000 V, Maximum DC Current Measurement 999.9 A, Maximum DC Voltage Measurement 1,000 V, Current Leakage Testing No, Parameters Measured AC Current, AC Voltage, DC Current, DC Voltage, Frequency, Resistance, Temperature (K), Intrinsically Safe No, Dustproof No, Waterproof No, Data Logging Yes

Digital/Analog	Digital
Max. AC Amps	999.9 A
Clamp Meter Jaw Style	Clamp On
Max. DC Volts	1,000 V
Max. Ohms	60,000
Jaw Capacity	1.4 in (36 mm)
Safety Rating	CAT III 1000V, CAT IV 600V
Display	Backlit LCD
Jaw Opening	1.4 in
Max. DC Amps	999.9
Max. AC Volts	1,000 V
Calibration Frequency	55 to 60 Hz
Auto Power Off	Yes
Operating Temp.	14 Degrees to 122 Degrees F
Standards	ANSI/ISA S82.02.01:2004, CAN/CSA-C22.2 No 61010-1-04, CE, CSA, IEC/EN61010-1:2001
Battery Type	(5) AA
AC Response	TRMS
AC Current Accuracy	+/-2.0% + 5 Digits
Auto Ranging	Yes
Audible Continuity	Yes

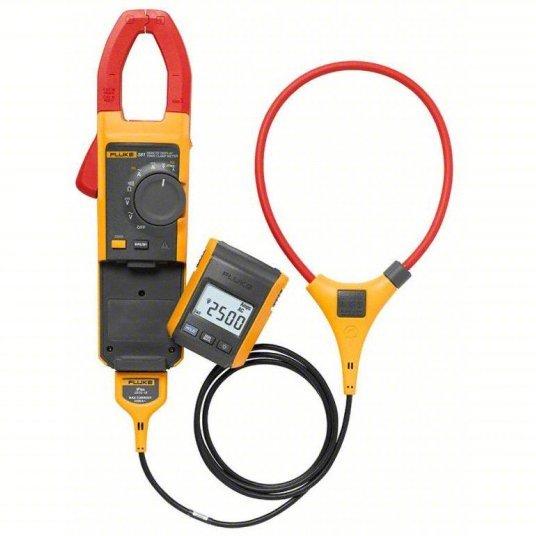

Includes	18 in Flexible Current Probe, Instruction Manual, Soft Carrying Case, Test Leads
Frequency Counter	500 Hz
Peak Hold	Yes
Counts	6,000
Special Features	Removable Magnetic
Data Hold	Yes
Inrush	Yes
Data Logging	Yes
Thermometer Type	Type K Thermocouple
Maximum Storage Temperature	140 Degrees F
Resistance Measurement Accuracy	1% +/- 5 digits
Current Leakage Testing	No
Basic AC Voltage Accuracy	1.5% +/- 5 digits (20 - 500 Hz)
Basic DC Current Accuracy	2% +/- 5 digits
AC Response Calculation	TRMS
Frequency Measurement Accuracy	Jaw: 0.5% +/- 5 digitsFlexible Probe: 0.5% +/- 5 digits
AC Current Measurement Resolution	0.1 A
Frequency Measurement Resolution	0.1 Hz
Batteries Included	Yes
Maximum Resistance Measurement	60,000 ohm
Calibration Certificate Included	No
Basic DC Voltage Accuracy	1% +/- 5 digits
Minimum Operating Temperature	14 Degrees F
Jaw Style	Clamp-Jaw
Maximum Operating Temperature	122 Degrees F
Thermal Imaging	No
Inrush Current Measurable	Yes
Intrinsically Safe	No
DC Current Measurement Resolution	0.1 A
Waterproof	No
Bluetooth Compatible	No
Removable Screen	Yes
AC Voltage Measurement Resolution	0.1 V
Maximum DC Current Measurement	999.9 A
Display Type	Backlit LCD
Basic AC Current Accuracy	Jaw: 2% +/- 5 digits (10-100 Hz)5% +/- 5 digits (100-500 Hz)Flexible Probe: 3% +/- 5 digits
Resistance Measurement Resolution	0.1 ohm
Parameters Measured	AC Current, AC Voltage, DC Current, DC Voltage, Frequency, Resistance, Temperature (K)
Maximum AC Current Measurement	999.9 A
Instrument Counts	6,000
Dustproof	No
Maximum AC Voltage Measurement	1,000 V
Maximum DC Voltage Measurement	1,000 V
DC Voltage Measurement Resolution	0.1 V
