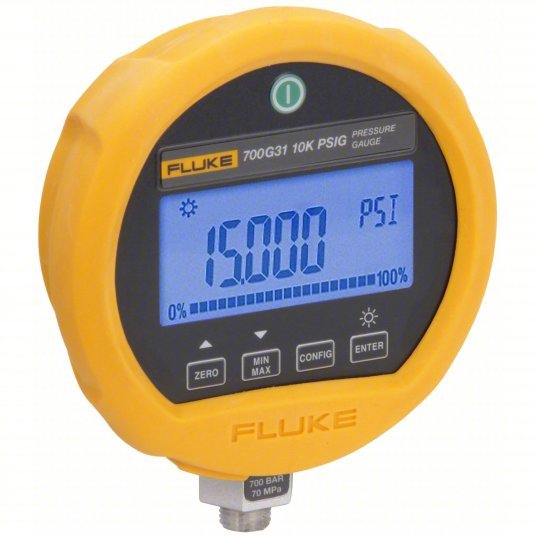

FLUKE-700G31 Digital Test Compound Gauge Calibrator Pressure Gauge, -14 to 10,000 psi, 3 3/4 in Dial, 700G
Original price
$1,777.59
-
Original price
$1,777.59
Original price
$1,777.59
$1,777.59
-
$1,777.59
Current price
$1,777.59
Digital Test Compound Gauge, Accuracy +/-0.05 Percent, Gauge Case Material Cast Zinc Aluminum, Nominal Dial Size 3 3/4 in, Lens Material Polycarbonate, IP/NEMA Rating IP67, Hazardous Location Rating Not Rated, Compatible Process Media Any Clean Dry Non-Corrosive Gas, Any Liquids or Gases Compatible With 316 Stainless Steel, Any Non-Flammable, Non-Toxic, Non-Explosive, Non-Oxidizing Liquid or Gas Compatible With 316 Stainless Steel, Socket Material Stainless Steel, Process Connection Type NPT
| Accuracy | +/-0.05% |
| Process Connection Location | Bottom |
| Process Connection Type | NPT |
| Digital Pressure and Vacuum Gauge Type | Digital Compound Gauge |
| Application | Hydraulics, Pneumatics |
| Gauge Case Material | Cast Zinc Aluminum |
| Series | 700G |
| Lens Material | Polycarbonate |
| Primary Pressure Range | -14 to 0 to 10,000 |
| Primary Scale Units | psi |
| IP/NEMA Rating | IP67 |
| Hazardous Location Rating | Not Rated |
| Panel-Mountable | No |
| Blowout Safety Back | No |
| Calibration Certificate | NIST Traceable |
| Socket Material | Stainless Steel |
| Case Color | Yellow |
| Peak Hold | No |
| Agency Compliance | CSA: Class 1, Div2, Groups A-D rating, ATEX: rating II 3 G Ex nA IIB T6 |
| Powered By | (3) AA Batteries |
| Includes | Manual on CD-ROM in 14 languages |
| Display | Multiline LCD |
| Number of Display Digits | 5 |
| Pressure Range | -14 to 10,000 psi |
| For Use With | Any Liquids or Gasses Compatible with 316 Stainless Steel |
| Display Units | bar, psi |
| Connection Type | MNPT |
| Wetted Materials | Stainless Steel |
| Standards | ATEX, CSA |
| Process Connection Gender | Male |
| Process Temperature Range | -14 Degrees to 131 Degrees F |
| Display Resolution | 0.01 bar |
| Includes Calibration Certificate | Yes |
| Includes Batteries | No |
| Non-Sparking | No |
| Auto-Shutoff | Yes |
| Case Shape | Round |
| Accuracy Grade Gauge Type | Process |
| Ambient Operating Temperature Range | -10 Degrees to 55 Degrees C, 14 Degrees to 131 Degrees F |
| Bar Graph | 20 Segments |
| Primary Display Range | -14 to 10,000 |
| Backlit Screen | Yes |
| Languages | English |
| Includes Rubber Boot | No |
| Case Construction | Rugged |
| Memory Storage Capacity | 8493 Readings |
| Primary Display Units | psi |
| Compatible Manufacturer Model Number | 700HTPK, 700PTPK |
| Pressure Gauge Type | Test Pressure Gauge |
| Pressure Range Type | Compound |
| Weatherproof | No |
| Compatible Process Media | Any Clean Dry Non-Corrosive Gas, Any Liquids or Gases Compatible With 316 Stainless Steel, Any Non-Flammable, Non-Toxic, Non-Explosive, Non-Oxidizing Liquid or Gas Compatible With 316 Stainless Steel |
| Display Range | -14 to 10,000 psi |
| Adjustable Set Points | No |
| Compatible Brand and Series | Fluke 700 Series |
| Burst Pressure | 20,000 psi |
| Power Source | Battery |
| Includes Mounting Hardware | No |
| Low Battery Indicator | Yes |
| Automatic Shut-Off Time | 1 min, 30 min |
| Battery Life | 1,500 hr |
| Display Type | LCD |
| Operating Temperature Range | -14 Degrees to 131 Degrees F |
