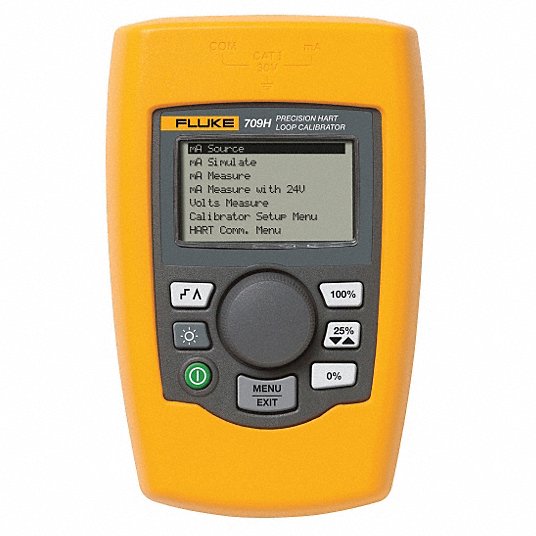

FLUKE-709H Loop Calibrators, mA Read/mA Read/Loop Power/mA Simulate/Volts Read, HART

Loop Calibrator, Source Current 0 to 20mA DC, Current Measurement Range 0 to 24mA DC, Current Accuracy 0.01 Percent +/-2 Counts, Voltage Measurement Range 0 to 30V DC, Voltage Accuracy 0.01 Percent +/-2 Counts, Loop Supply Voltage 24 V DC, Max. Loop Current 20mA DC, Display LCD, Standards EN61326, Calibration Certificate NIST with Data, Powered By (6)AAA Batteries

Includes	(2) 75X-8014 Stackable Leads, (2) TP220-4201 Test Probes, 754-8016 Alligator Clips, AC280-5001 SureGrip Hook Clips, Carrying Case
Display	LCD
Standards	EN61326
Loop Supply Voltage	24 V DC
Powered By	(6)AAA Batteries
Current Measurement Range	0 to 24mA DC
Source Current	0 to 20mA DC
Calibration Certificate	NIST with Data
Current Accuracy	0.01% +/-2 Counts
Source/Simulate	4 to 20 mA
Voltage Measurement Range	0 to 30V DC
Max. Loop Current	20mA DC
Voltage Accuracy	0.01% +/-2 Counts
Product Type	Loop Calibrator
Communication Protocol	HART
Calibration Certificate Type	NIST
Digital Display Screen Type	LCD
Includes Batteries	Batteries Included
Source Voltage - Maximum	30 V DC
Current Measurement - Minimum	0 mA
Loop Current - Maximum	20 mA
Voltage Measurement - Maximum	30 V DC
Voltage Measurement - Minimum	0 V DC
Source Voltage - Minimum	0 V DC
Battery Chemistry	Alkaline
Source Current - Minimum	0 mA
Parameters Measured	DC Current, DC Voltage
Current Measurement - Maximum	24 mA
Source Current - Maximum	20 mA
Number of Batteries Required	6
