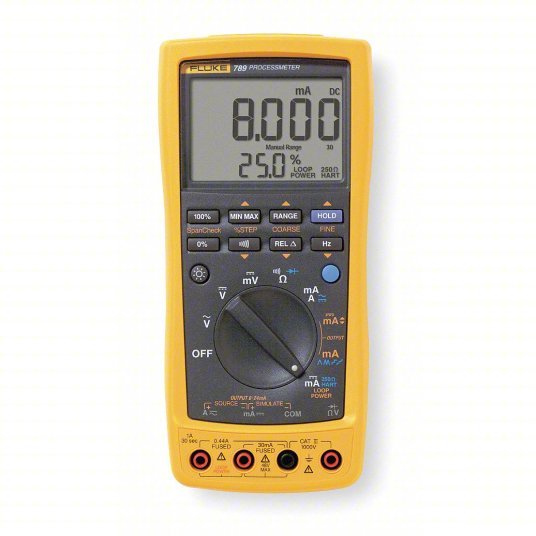

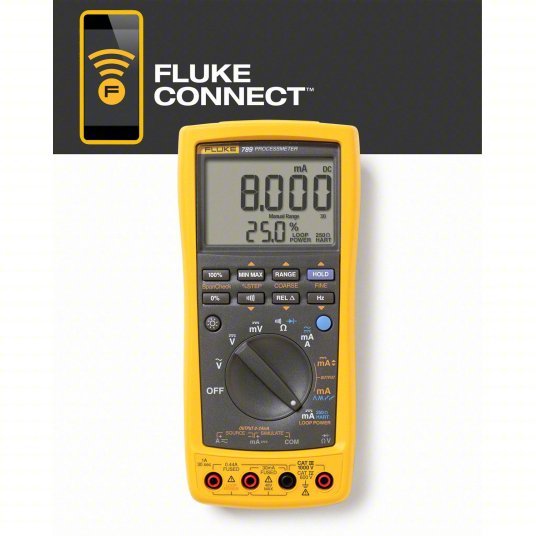

FLUKE-789 Process Calibrator Multimeter, AC Current/AC Volt/Continuity/DC Volt/Diode/Freq

Process Calibrator Multimeter, Source Current 0 to 20mA DC, Current Measurement Range 0 to 30 mA DC, Source Voltage -, Voltage Measurement Range 0 to 1000V AC/DC, Loop Supply Voltage 24 V DC, Accuracy +/-0.5 Percent + 2 Digits, Voltage (AC) 400mV/4/40/400/1000, Voltage (DC) 400mV/4/40/400/1000, Basic DC Accuracy 0.2 Percent + 2 LSD (DC), Amps AC 1 A, Amps DC 30mA/1A, Resistance (Ohms) 400/4K/40K/400K/4M/40M, True RMS Yes, Temp. Range (F) -, Temp. Rating (C)

Display Type	LCD
Includes	Alligator Clips, Safety-Designed Test Lead Set
Standards	ANSI/ISA S82.01-1994, CAN/CSA C22.2 No 1010.1-92, IEC 1010-1
Voltage Measurement Range	0 to 1000V AC/DC
Amps AC	1 A
Basic DC Accuracy	0.2% + 2 LSD (DC)
Source/Simulate	mA
Voltage (AC)	400mV/4/40/400/1000
Measurement Functions	F, mA, Ohms, V
Amps DC	30mA/1A
Accuracy	+/-0.5% + 2 Digits
Intrinsically Safe	No
True RMS	Yes
Current Measurement Range	0 to 30 mA DC
Resistance (Ohms)	400/4K/40K/400K/4M/40M
Source Current	0 to 20mA DC
Loop Supply Voltage	24 V DC
Frequency Range (Hz)	.01 Hz to19.999 K
Voltage (DC)	400mV/4/40/400/1000
Temp. Range	-200 °C to 1372 °C using the t3000 FC

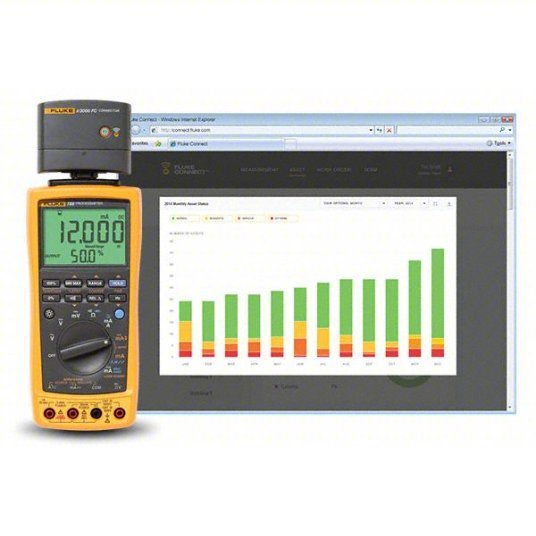

Interface	Wireless
Parameters Sourced	DC Current, Resistance
Battery Chemistry	Alkaline
Current Measurement - Minimum	0 mA
Source Current - Minimum	0 mA
CAT Safety Rating	CAT III 1000V, CAT IV 600V
Voltage Measurement - Maximum	1,000 V AC/DC
AC Magnitude Calculation	True RMS
Current Measurement - Maximum	30 mA
Calibration Certificate Type	Not Certified
IP Rating	IP42
Loop Current - Maximum	20 mA
Number of Batteries Required	4
Parameters Measured	AC Current, AC Voltage, Continuity, DC Voltage, Diode, Frequency
Voltage Measurement - Minimum	0 V AC/DC
Source Current - Maximum	20 mA
Batteries Included	Batteries Included
Maximum Frequency Measurement	19.999 kHz
Maximum Resistance Measurement	40 megaohm
Minimum Frequency Measurement	0.5 Hz
