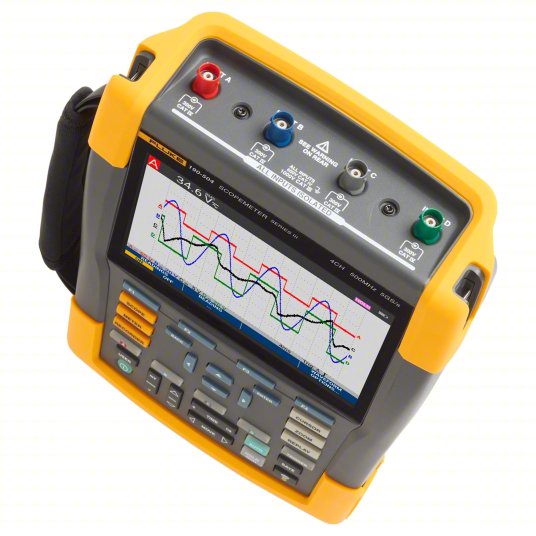

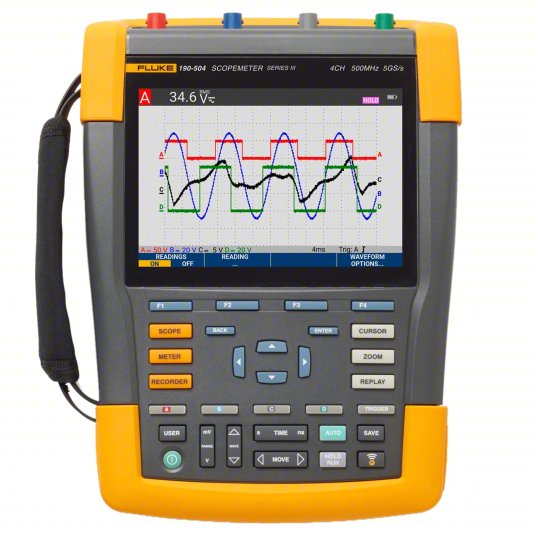

Fluke FLUKE-190-504-III Handheld Oscilloscope Portable Handheld Digital Oscilloscopes, Fully Isolated, Auto, True RMS

Handheld Oscilloscope, Bandwidth (MHz) 500 MHz, 4 Channels, 153mm Full Color LCD Display, True RMS Yes, Sampling Rate 125 MS/s, (1) 190-XX2 or (2) 190-X04 Mathematical Operations on 2 Input Channels (A and B, C and D): Add, Subtract, Multiply, Frequency Spectrum using FFT, X-Y-mode Waveform / Measurement Stored, Max. Record Length 10k/ Channel, 30,000 Points per Input (Scope Record mode), FFT Analysis Frequency Spectrum Using FFT Analysis

Channels	4
Display	153mm Full Color LCD
Sampling Rate	125 MS/s
Glitch Capture	8 ns Peak Detect on each Channel
Cursors and Zoom	Ranges from Full Record Overview to Zoom in upto Sample Level
FFT Analysis	Frequency Spectrum Using FFT Analysis
Waveform / Measurement Stored	(1) 190-XX2 or (2) 190-X04 Mathematical Operations on 2 Input Channels (A and B, C and D): Add, Subtract, Multiply, Frequency Spectrum using FFT, X-Y-mode
Battery Type	Li-Ion
Safety Rating	1,000 V CAT III/600 V CAT IV (EN61010-1)
Triggering Mode	Auto
Input Sensitivity	2 mV to 100 V/div
Persistence	Digital Persistence Giving Analog Oscilloscope-Like Waveform Decay
Includes	(4) TRM50 Cable Terminators, (4) VPS410-II Probes, AC Power Adapter, Carrying Case, DWA-131 Wi-Fi Dongle, Hand Strap, Hanging Strap, Power Cord, USB Cable
Interface	USB
Calibration Certificate	No
True RMS	Yes
Real Time Clock	Yes
Features	Dedicated 999 Count Digital Multimeter, Easy-Access Battery Door, Four Electrically Isolated Inputs, Four Meter Measurements Via Scope BNC Inputs in Four-Channel Models, Scope Record Roll Mode, Capture Waveform Sample Data for upto 48 Hours, Trend plot, Trend Measurement Readings for upto 22 Days
Time Base - Maximum	4 sec/div
Calibration Certificate Type	Not Certified
Time Base - Minimum	1 nsec/div
CAT Safety Rating	CAT III 1000V, CAT IV 600V
Basic DC Voltage Accuracy	+/-(1.50% +6 Counts)
Input Sensitivity - Maximum	100 V/div
AC Voltage Measurement - Maximum	1,100 V
Input Sensitivity - Minimum	100 V/div
IP Rating	IP51
Digital Display Screen Type	LCD
Standards	EN 61010-1, IEC 61010-2-030: CAT IV 600V/CAT III 1000V
Battery Run Time	7 hr
Number of Channels	4
Basic AC Voltage Accuracy	+/-(1.50% +10 Counts)
Battery Chemistry	Lithium Ion
Power Source	Battery
Channel Source Isolation	Fully Isolated
Body Style	Handheld
AC Voltage Measurement Resolution	100 mV
AC Voltage Measurement - Minimum	500 mV
Includes Batteries	Batteries Included
AC Magnitude Calculation	True RMS
