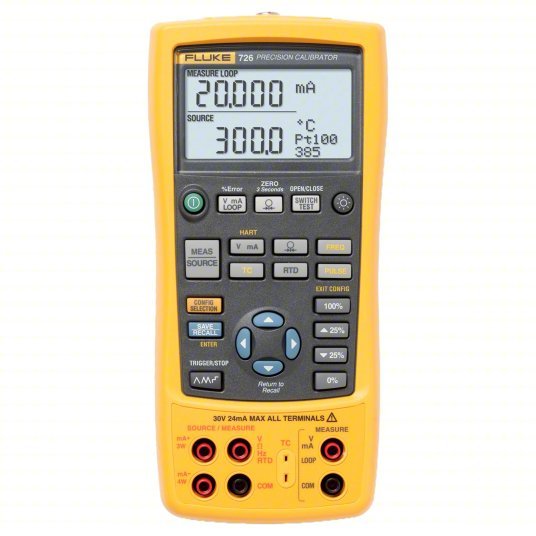

FLUKE-726/FPC Multifunction Calibrator Precision Multifunction, HART, 0.001 mA – 24 mA, NIST

Multifunction Calibrator, Voltage Measurement Range -10 to 75 mV, Loop Supply Voltage 24 V, Intrinsically Safe No, Pressure Modules 29, Measurement Functions Hertz, mV, Ohms, V, Source Current 24 mA DC, Current Measurement Range 0 to 24 mA DC, Basic DC Accuracy +/- 0.01 Percent + 2mV, Thermocouple Temperature Range -250 Degrees to 2500 Degrees C, Powered By (4) AA Batteries, Includes Alligator Clips, Stackable Test Leads, Test Leads, Frequency Source Range 10.0 to 15.0 kHz

Includes	Alligator Clips, Stackable Test Leads, Test Leads
Standards	ASNI/ISA S82.01-1994, CAN/CSA C22.2 No 1010.1:1992, EN 61010-1:1993
Calibration Certificate	NIST
Thermocouple Type	B, BP, E, J, K, L, N, R, S, T, U, XK
RTD Type	Cu10, Ni120, Pt100 (385), Pt100 (391-JIS), Pt100 (392), Pt1000 (385), Pt200 (385), Pt500 (385)
Safety Rating	ANSI/ISA S82.01-1994, CAN/CSA C22.2 No 1010.1:1992, EN61010-1:1993
Current Measurement Range	0 to 24 mA DC
Source Voltage	-10 to 75 mV
Powered By	(4) AA Batteries
Pressure Modules	29
Measurement Functions	Hertz, mV, Ohms, V
Frequency Source Range	10.0 to 15.0 kHz
Intrinsically Safe	No
Source Current	24 mA DC
Voltage Measurement Range	-10 to 75 mV
Loop Supply Voltage	24 V
Basic DC Accuracy	+/- 0.01% + 2mV
Max. Loop Current	22 mA
Resistance Measurements	0 to 4,000 ohm
Resistance Source	1,500 to 4,000 ohm
Thermocouple Temperature Range	-250 Degrees to 2500 Degrees C
Source/Simulate	Hertz, mA, mV, Ohms, V
Frequency Measurement Range	10.0 to 15.0 kHz
Number of Batteries Required	4
Resistance Measurement - Minimum	0 ohm
Parameters Measured	DC Current, DC Voltage, Frequency, Pressure, Resistance, RTD, TC
Resistance Measurement - Maximum	4,000 ohm
Source Current - Maximum	24 mA
Frequency Measurement - Minimum	1 kHz
Source Frequency - Minimum	10 kHz
Source Voltage - Maximum	75 mV
Current Measurement - Maximum	24 mA
Frequency Measurement - Maximum	15 kHz
Battery Chemistry	Alkaline
Voltage Measurement - Maximum	75 mV
Loop Current - Maximum	22 mA
Current Measurement - Minimum	0 mA
Thermocouple Temperature - Minimum	482 Degrees F
Source Resistance - Minimum	1,500 ohm
Parameters Sourced	AC Voltage, DC Voltage, Frequency, Resistance
Source Resistance - Maximum	4,000 ohm
Intrinsic Safety	Not Specified Intrinsically Safe
Thermocouple Temperature - Maximum	4,532 Degrees F
Source Voltage - Minimum	-10 mV
Includes Batteries	Batteries Included
Calibration Certificate Type	NIST
Source Frequency - Maximum	15 kHz
Digital Display Screen Type	LCD with Backlight
Source Current - Minimum	0.001 mA
Voltage Measurement - Minimum	-10 mV
Communication Protocol	HART
