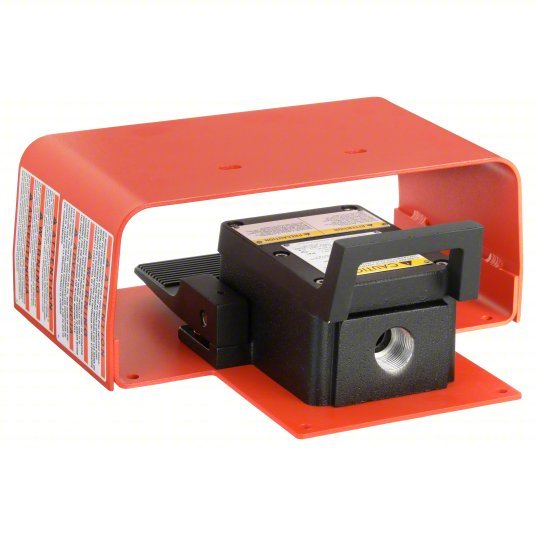

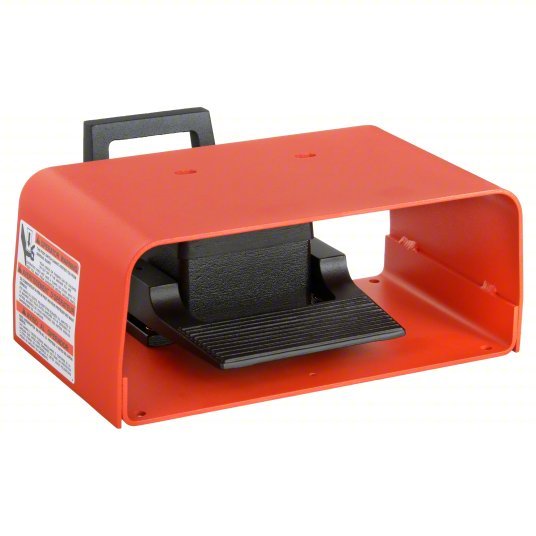

Gai-Tronics 51052-003 Footswitch Explosion Proof Single SPDT
Original price
$1,943.29
-
Original price
$1,943.29
Original price
$1,943.29
$1,943.29
-
$1,943.29
Current price
$1,943.29
Foot Switch, SPDT Contact Form, Voltage Rating 125/250V AC, NEMA Rating 2, 7D, 9F, Current Rating 15 (10), Material Aluminum, Color Orange, Momentary Action, Length 10 1/4 in, Width 11 in, Depth 4 3/8 in, HP 3/4 (1), Cord Length Not Applicable, IP Rating IP41, Features (4) Mounting Holes, Standards cULus, RoHS
| MATERIALS | Aluminum full guard with integral base plate painted Alert Orange All models supplied with a 3/4"-14 N.P.T. threaded rigid metal conduit entry and mounting provisions in the base plate Integral handle for ease of moving |
| PURPOSE | Equipment for Hazardous Locations |
| Electrical Ratings | 15A, 125 VAC, 10A, 250 VAC, 3/4 H.P. 125 VAC, 1 H.P. 250 VAC, Heavy Pilot Duty 250 VAC Max. 3A 28 VDC |
| Shields & Guards | Guarded |
| FEATURES & BENEFITS | Non sparking cast aluminum housing 4 holes provided for rigid mounting to floor or equipment The two pedal model is supplied with a divider bar between pedals which helps prevent accidental operation of both pedals at one time |
| Actions | Momentary |
| Cable Entries | 3/4"-14 NPT threaded entry |
| Circuitries | SPDT |
| Series | Explosion Proof 500 |
| Includes Potentiometer | No Potentiometer Included |
| AC Contact Rating | 10 A @ 250 V, 15 A @ 125 V |
| NEMA Enclosure Rating | 2 |
| Power Source | Electrically Corded |
| Resistance Properties | Explosion Proof |
| Termination Connection Type | 3/4"-14 NPT Conduit Hole |
| Horsepower | 0.75 HP @ 125V AC, 1 HP @ 250V AC |
| Number of Pedals | 1 |
| Hazardous Location Specification | Class I, Div 1, Group D, Class II, Div 1, Group F, G |
| Includes Foot Guard | Guard Included |
| DC Contact Rating | 3 A @ 28 V |
