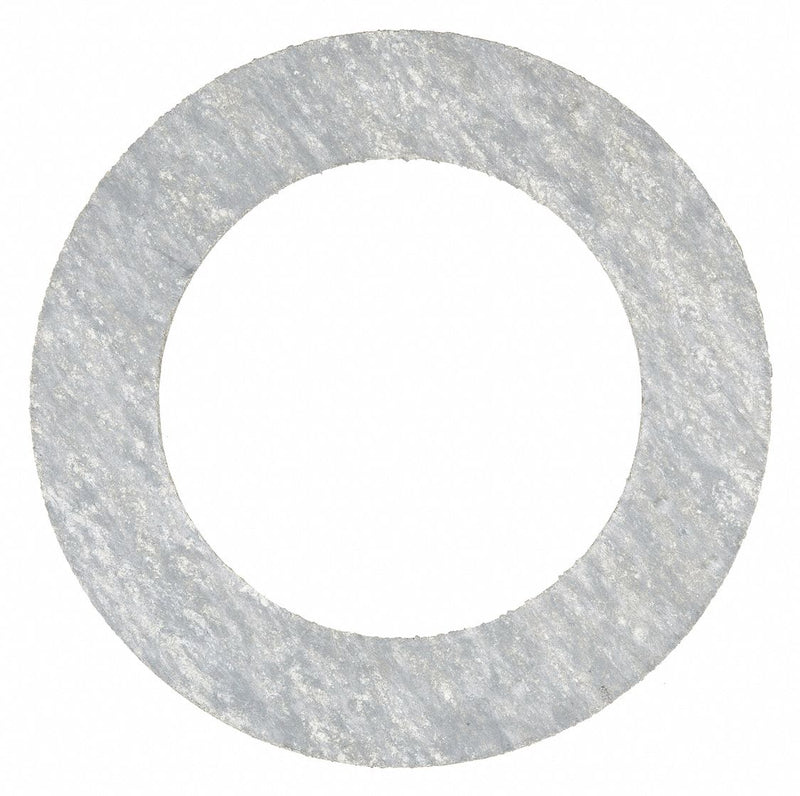

Garlock 37555-0103 Ring Flange Gasket, Class 150, Inorganic Fiber, Buna-N Binder, For 3 in Pipe, 1/16 in Thick
UPC: | Harmonization / Schedule B : 6815.99.4170
Country of Origin: Mexico | Shipping Weight: 0.06 lbs
Original price
$4.06
-
Original price
$4.06
Original price
$4.06
$4.06
-
$4.06
Current price
$4.06
Ring Flange Gasket, Gasket Material Inorganic Fiber, Insert Material None, For Pipe Size 3 in, For Flange ANSI Class 150, Binder Material Buna-N, Color Gray, Inside Diameter 3 1/2 in, Minimum Operating Temperature -100 Degrees F, Maximum Operating Temperature 800 Degrees F, Outside Diameter 5 3/8 in, Thickness 1/16 in, Product Type Ring Gasket, Metal Detectable Gasket No, Hardness Not Rated, Includes Mounting Hardware No, X-Ray Detectable No
| Pipe Size | 3 in |
|---|---|
| Outside Dia. | 5 3/8 in |
| Inside Dia. | 3 1/2 in |
| Thickness | 1/16 in |
| Inside Diameter | 3 1/2 in |
| For Pipe Size | 3 in |
| MFR # | 37555-0103 |
| Zoro # | G0484662 |
| UPC # | - |
| Country of Origin | Mexico |
| Material of Construction | Inorganic Fiber with Nitrile Binder |
| Max. Pressure (PSI) | 1,200 psi |
| Flange Class | Class 150 |
| Color | Gray |
| Product Type | Ring Gasket |
| Metal Detectable | No |
| Temp. Range (F) | -100 to 550 |
| Type | Ring Gasket |
| Continuous Max. Temp. (F) | 550 Degrees F |
| Standards | ASME B16.21, ASME/ANSI Pressure Class-150 LB |
| For Fluid Type | Aliphatic Hydrocarbons, Gasoline, Oil, Refrigerants, Steam, Water |
| Metal Detectable Gasket | No |
| For Flange ANSI Class | 150 |
| FDA Approved | No |
| Binder Material | Buna-N |
| Reinforced | No |
| Insert Material | None |
| X-Ray Detectable | No |
| Resistance Properties | Chemical-Resistant |
| Minimum Operating Temperature | -100 Degrees F |
| Maximum Operating Temperature | 800 Degrees F |
| Hardness | Not Rated |
| System of Measurement | Inch |
| Gasket Type | Ring Gasket |
| Gasket Material | Inorganic Fiber |
| Country of Origin | Mexico (subject to change) |
