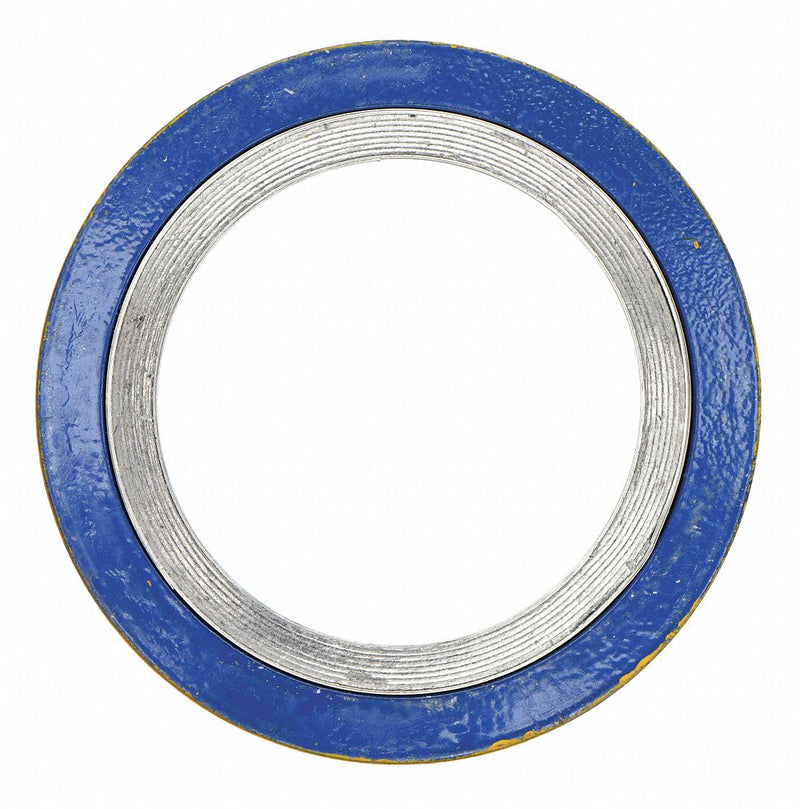

Garlock C000502501 Spiral Wound Flange Gasket, Graphite Filler, 304 Stainless Steel Winding, For 2 1/2 in Pipe
UPC: | Harmonization / Schedule B : 8484.20.0000
Country of Origin: India | Shipping Weight: 0.31 lbs
Original price
$9.57
-
Original price
$9.57
Original price
$9.57
$9.57
-
$9.57
Current price
$9.57
Spiral Wound Flange Gasket, For Flange ANSI Class 150, For Pipe Size 2 1/2 in, Inside Diameter 3 1/4 in, Outside Diameter 4 7/8 in, Thickness 3/16 in, Rim Stripe Color Gray, Outside Rim Color Yellow, Filler Material Graphite, Outer Ring Material Carbon Steel, Minimum Operating Temperature -320 Degrees F, Maximum Operating Temperature 850 Degrees F, Spiral Winding Material Stainless Steel, Spiral Winding Stainless Steel Grade 304, Inner Ring Material None
| Pipe Size | 2 1/2 in |
|---|---|
| Outside Dia. | 4 7/8 in |
| Inside Dia. | 3 1/4 in |
| Thickness | 3/16 in |
| Spiral Winding Outside Diameter | 3 15/16 in |
| For Pipe Size | 2 1/2 in |
| Inside Diameter | 3 1/4 in |
| Material of Construction | 304SS and Flexible Graphite |
| Flange Class | Class 150 |
| Color | Yellow With Gray Band |
| Product Type | Spiral Wound Metal Gasket |
| Metal Detectable | Yes |
| Winding | 3.88 in OD |
| Continuous Max. Temp. (F) | 850 Degrees F |
| Temp. Range (F) | -320 To 850 |
| Standards | ASME B16.20, ASME/ANSI Pressure Class-150 LB |
| Type | ANSI class 150 lb flange |
| FDA Approved | No |
| For Flange ANSI Class | 150 |
| Spiral Winding Stainless Steel Grade | 304 |
| Outside Rim Color | Yellow |
| Inner Ring Material | None |
| Spiral Winding Material | Stainless Steel |
| Outer Ring Material | Carbon Steel |
| Filler Material | Graphite |
| Rim Stripe Color | Gray |
| System of Measurement | Inch |
| Minimum Operating Temperature | -320 Degrees F |
| Maximum Operating Temperature | 850 Degrees F |
| Country of Origin | India |
