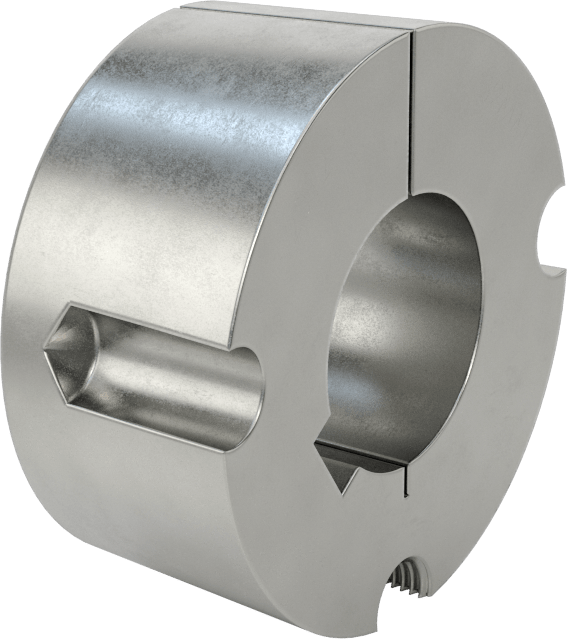

McMaster 57095K555 Taper-Lock Bushing, Style 2012, for 32 mm Shaft Diameter
UPC: | Harmonization / Schedule B : 8483.90.9500
Country of Origin: United States | Shipping Weight: 0.1 lbs
Original price
$140.40
-
Original price
$140.40
Original price
$140.40
$140.40
-
$140.40
Current price
$140.40
Mount these hubless bushings flush into your sprocket or pulley for a slim profile with no protruding screws. They are for use with taper-lock sprockets of the same bushing trade number. As you tighten the included set screws, the bushing grips the shaft and pulls it into your sprocket or pulley.

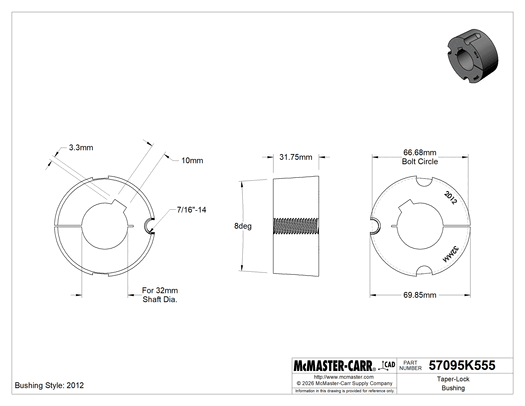

| Material | Steel |
| Bushing Trade Number | 2012 |
| For Shaft Diameter | 32 mm |
| Overall Width | 32 mm |
| Width | 10 mm |
| Depth | 3.3 mm |
| Taper | 8° |
| Fastener Tightening Torque | 280 in·lbf |
| Includes | Set Screws |
| Bushing Type | Taper Lock |
| For Shaft Type | Keyed |
| ID | 32 mm |
| Shaft Mount Type | Clamp On |
| Country of Origin | United States |
| DFARS Compliance | Specialty Metals COTS-Exempt |
| Export Control Classification Number (ECCN) | EAR99 |
| REACH Compliance | REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant |
| RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
| Schedule B Number | 848390.9500 |
| U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
