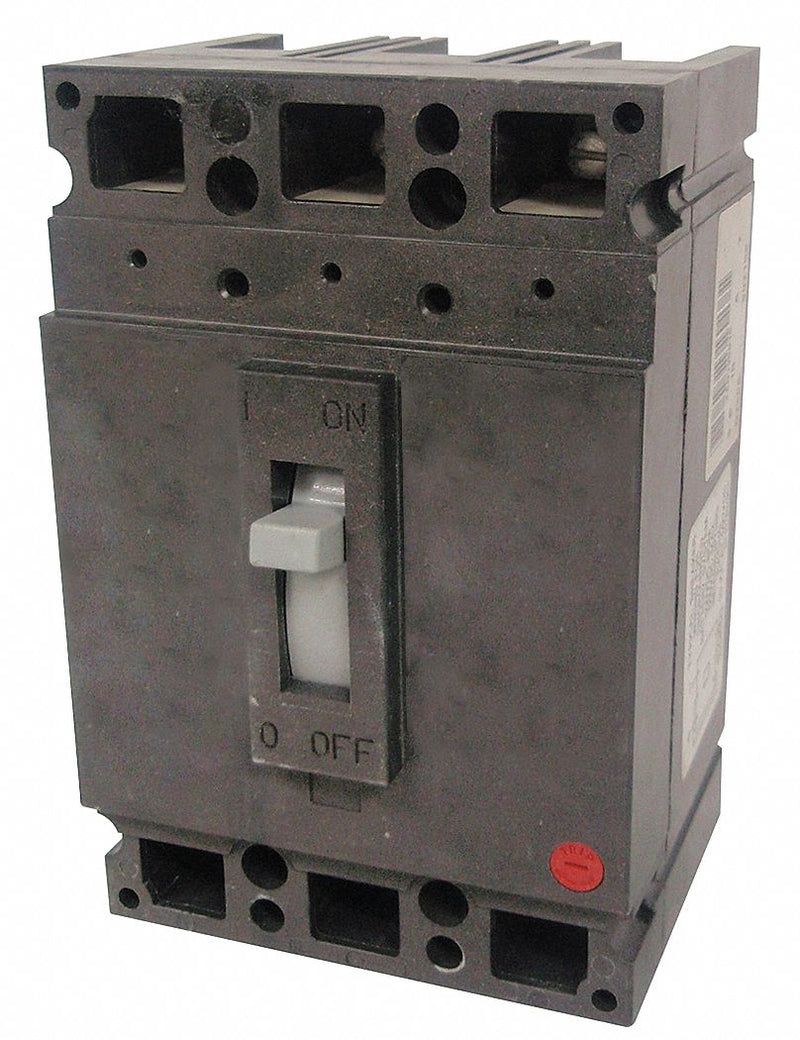

GE TED136090WL Molded Case Circuit Breaker, TED Series, 90 A, 3 Pole, 600V AC, 18kA AIR, Bolt-On, Thermal Magnetic
Original price
$1,963.84
-
Original price
$1,963.84
Original price
$1,963.84
$1,963.84
-
$1,963.84
Current price
$1,963.84
GE TED-frame molded case circuit breaker, 90A, 3-pole, 600V AC. Standard type for use with GE Panelboards. Max AIR rating 18kA at 120/240/277/480V AC. DC voltage rating 125/250/500V DC. Bolt-on panelboard mounting, thermal magnetic trip, fixed instantaneous trip. CSA Certified, UL Listed.
| Amps | 90 A |
| AC Voltage Rating | 600V AC |
| Max. AIR Rating | 18kA at 120/240/277/480V AC |
| For Use With | GE Panelboards |
| Circuit Breaker Type | Standard |
| Number of Poles | 3 |
| DC Voltage Rating | 125/250/500V DC |
| Terminal Connection | Line/Load Lug |
| Trip Type | Thermal Magnetic |
| Phase | Three |
| Instantaneous Trip | Fixed |
| Phase Connection | ABC |
| Frame Size | 150A/TED |
| Circuit Breaker Mounting Style | Bolt On Panelboard |
| Height | 6.31 in |
| Width | 4.13 in |
| Depth | 4.09 in |
| Min. Wire Size | 4 AWG (Al); 6 AWG (Cu) |
| Circuit Breaker Actuator | Toggle |
| Standards | CSA Certified; UL Listed |
| Series | TED |
