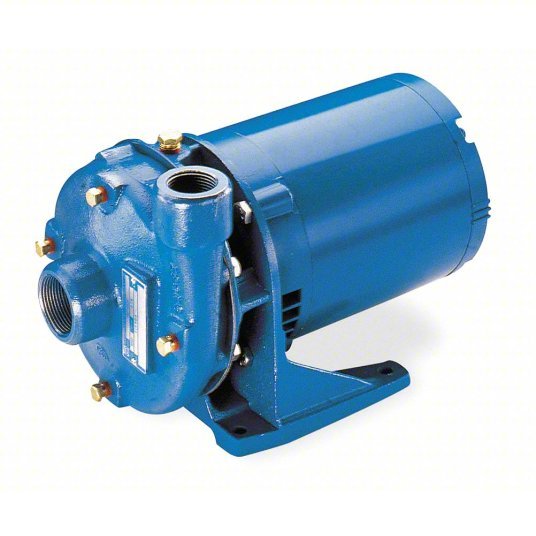

Goulds 2BF81534 Centrifugal Pump 1 1/2 hp, 208-230/480V AC, 118 ft Max Head, 1 1/2 in , 1 1/4 in Intake and Disch
Original price
$2,215.99
-
Original price
$2,215.99
Original price
$2,215.99
$2,215.99
-
$2,215.99
Current price
$2,215.99
Centrifugal Pump, Phase Three, Pump Housing Material Cast Iron, Horsepower 1 1/2 hp, Nameplate Voltage 208-230/480V AC, Flow Rate @ 40 ft of Head (Maximum) 67 gpm, Flow Rate @ 60 ft of Head (Maximum) 30 gpm, Flow Rate @ 80 ft of Head (Maximum) 49 gpm, Maximum Feet of Head 118 ft, Compatible Intake Pipe Size 1 1/2 in, Intake Type NPT, Compatible Discharge Pipe Size 1 1/4 in, Discharge Type NPT, Motor Enclosure Totally Enclosed Fan Cooled, Maximum Flow Rate 90 gpm
| HP - Pumps | 1 1/2 hp |
| Voltage - Pumps | 208 to 230/480V AC |
| Phase - Pumps | 3 |
| Housing Material - Pumps | Cast Iron |
| Max. Pressure - Pumps | 125 psi |
| Max. Head | 62 ft |
| Motor Enclosure - Pumps | Totally Enclosed |
| Amps | 4.5-4.8/2.4 |
| Best Efficiency GPM @ PSI | 60 @ 23 |
| Port Rotation | 45 Degrees Increments |
| Bearing Type | Ball |
| Motor Ambient Temp. Rating | 40 Degrees C |
| Installation Position | Vertical |
| Thermal Protection | No |
| Agency Compliance | CSA |
| Max. Specific Gravity | 1 |
| Motor RPM | 3500 |
| Impeller Material | Bronze |
| GPM of Water @ 40 Ft. of Head | 85 |
| Seal Material | 316 Stainless Steel, Buna Elastomer, Carbon, Ceramic |
| Wetted Materials | Buna-N, Carbon, Cast Iron, Ceramic, Stainless Steel |
| Min. GPM @ Head | 12 gpm @ 62 ft |
| Motor Type | Capacitor-Start |
| Inlet Pressure | 6 psi |
| Hz | 60 |
| Item - Straight Centrifugal Pumps | Straight Centrifugal High Flow Pump |
| Max. GPM @ Head | 90 gpm @ 35 ft |
| Max. Case Pressure | 125 psi |
| Frame | 56 |
| Overload Protection | Yes |
| GPM of Water @ 60 Ft. of Head | 30 |
| UPC | 697666934987 |
| Max. Liquid Temp. | 212 Degrees F |
| Impeller Type | Closed |
| Best Efficiency GPM @ Head | 60 gpm @ 55 ft |
| Best Efficiency Range GPM @ Head | 55 to 85 gpm @ 78 to 62 ft |
| GPM of Water @ 50 Ft. of Head | 67 |
| Duty | Continuous |
| Intake Type | NPT |
| Seal Type | Mechanical |
| Nameplate Voltage | 208-230/480V AC |
| Phase | Three |
| Priming | Manual |
| Flow Rate @ 50 ft of Head (Maximum) | 30 gpm |
| Motor Enclosure | Totally Enclosed Fan Cooled (TEFC) |
| Specific Gravity (Maximum) | 1 |
| Frequency | 60 Hz |
| Maximum Media Temperature | 212 Degrees F |
| Flow Rate @ 60 ft of Head (Maximum) | 30 gpm |
| Horsepower | 1 1/2 hp |
| Maximum Flow Rate | 90 gpm |
| Motor Frame Designation | 56J |
| Wetted Material | 316 Stainless Steel, Bronze, Buna-N, Carbon, Ceramic |
| Maximum RPM | 3,500 RPM |
| Mounting Orientation | Horizontal, Vertical |
| Impeller Design | Closed |
| Standards | CSA Certified |
| Flow Rate @ 80 ft of Head (Maximum) | 49 gpm |
| Flow Rate @ 20 ft of Head (Maximum) | 0 gpm |
| Flow Rate @ 30 ft of Head (Maximum) | 85 gpm |
| Shut Off Pressure (Maximum) | 125 psi |
| Pump Housing Material | Cast Iron |
| Pumping Application | Booster Service, Jockey Pump Service, Liquid Transfer, Spraying Systems, Water Circulation |
| Flow Rate @ 90 ft of Head (Maximum) | 40 gpm |
| Discharge Rotation | 45 Degrees Increments |
| Best Efficiency Flow | 60 gpm |
| For Use With Potable Systems | Yes |
| Duty Cycle | Continuous |
| Flow Rate @ 40 ft of Head (Maximum) | 67 gpm |
| Best Efficiency Head | 55 ft |
| Minimum Flow Rate | 30 gpm |
| Flow Rate @ 70 ft of Head (Maximum) | 58 gpm |
| Flow Rate @ 100 ft of Head (Maximum) | 27 gpm |
| Electrical Connection Type | Hardwired |
| Discharge Type | NPT |
| Maximum Feet of Head | 118 ft |
| Compatible with Media Type | Water |
| Thermal Overload Protection | No |
| Series | 3642 |
| Shaft Material | Stainless Steel |
