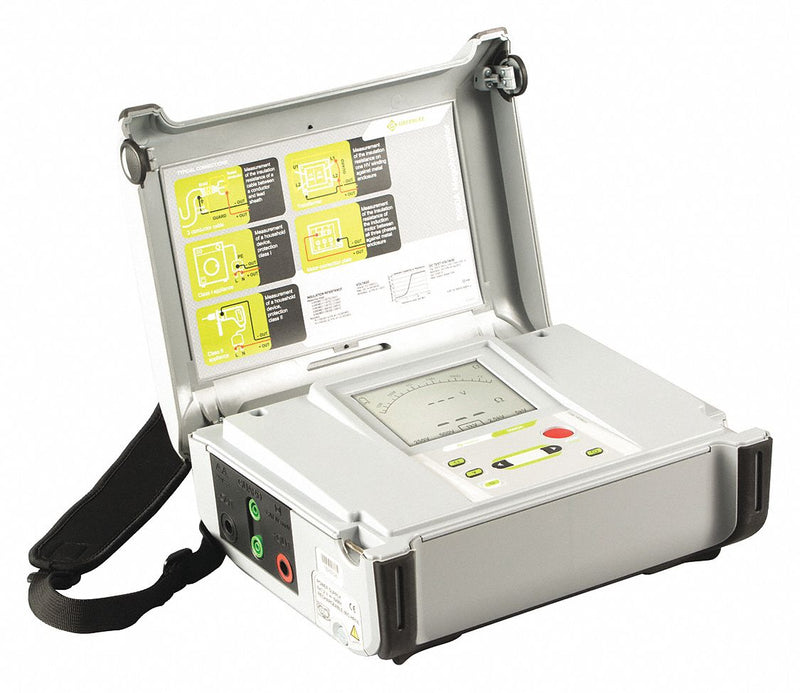

Greenlee 5990A Megohmmeter, Test Voltage 250V/500V/1,000V/2,500V/5,000V DC, CAT IV 600V, Battery, LCD Display
Original price
$3,795.42
-
Original price
$3,795.42
Original price
$3,795.42
$3,795.42
-
$3,795.42
Current price
$3,795.42
Megohmmeter, Backlit Digital Display Yes, Bluetooth Compatible No, CAT Safety Rating CAT IV 600V, Capacitance Auto Discharge Yes, Display Type Digital, Dustproof No, Greater Than 30V Warning Yes, Includes Batteries Rechargeable/NIMH, Carrying Case with Shoulder Strap, Heavy Duty Zipper Test Leads with Alligator Clips Test, Lead Case Instrument Should Strap, Maximum Insulation Resistance 999 gigohm, Minimum Insulation Resistance 0.12 megaohm, Parameters Measured Insulation Resistance
| Tool Length | 12.2 in |
| Tool Height | 9.8 in |
| Battery Size | C |
| Tool Width | 5.1 in |
| Manufacturer Warranty Length | Limited Lifetime |
| Power Source | Battery |
| Includes | Batteries Rechargeable/NIMH, Carrying Case with Shoulder Strap, Heavy Duty Zipper Test Leads with Alligator Clips Test, Lead Case Instrument Should Strap |
| Capacitance Range | No |
| Auto Power Off | No |
| Auto Ranging | No |
| Output Test Voltage | 250/500/1000/2500/5000V DC |
| Accuracy | 100 gigaohms to 999 gigaohms - +/- (10% + 3 digits), 5 kiloohm to 99.9 gigaohms - +/- (5% + 3 digits) |
| Features | Auto-Calibration on Start-up, Hazardous Voltage Warning Icon Greater Than 70 volts, Onboard Battery Charger, Test: Insulation, Voltage and Frequency |
| Live Circuit Detection | 600V AC/V DC |
| Bluetooth Compatible | No |
| Testing Functions | Insulation |
| Test Voltage | 1,000V DC, 2,500V DC, 250V DC, 5,000V DC, 500V DC |
| Maximum Insulation Resistance | 999 gigohm |
| Parameters Measured | Resistance |
| IP Rating | IP40 |
| Resistance Accuracy | +/-10% |
| Test Current | 5 mA |
| Display Type | Digital |
| Insulation Resistance Resolution | 0.12 megaohm to 999 gigaohm |
| Display Screen Type | LCD |
| Standards | IEC 60664, IEC 61010-1 |
| Backlit Digital Display | Yes |
| Capacitance Auto Discharge | Yes |
| Greater Than 30V Warning | Yes |
| CAT Safety Rating | CAT IV 600V |
| Minimum AC Voltage Measured | 0 V |
| Minimum Insulation Resistance | 0.12 megaohm |
| Includes Batteries | Yes |
| Operating Voltage | 600V AC |
| Waterproof | No |
| Maximum Operating Temperature | 122 Degrees F |
| Maximum AC Voltage Measured | 600 V |
| Maximum Operating Temperature | 122 Degrees F |
