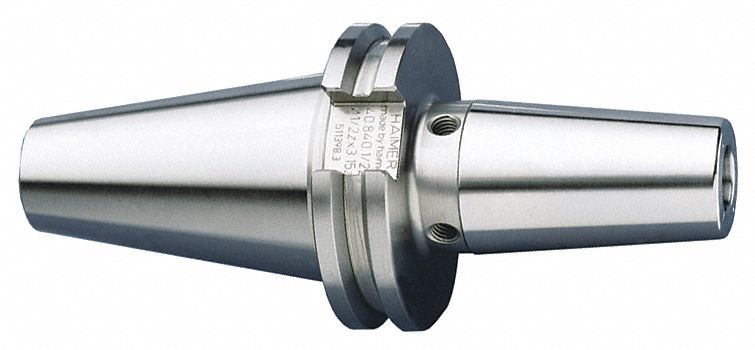

Haimer 50.842.1z.4 Shrink Fit Tool Holder, CV50 Taper, 6.3 in Projection
UPC: | Harmonization / Schedule B : 8466.10.0175
Country of Origin: Germany | Shipping Weight: 3.5 lbs
Original price
$1,197.08
-
Original price
$1,197.08
Original price
$1,197.08
$1,197.08
-
$1,197.08
Current price
$1,197.08
HAIMER Shrink Fit Tool Holder: CV50 Taper, 6.3 in Projection.
| Taper Size | CV50 |
|---|---|
| Projection | 6.3 in |
| Balanced to RPM | G 2.5@25,000 RPM |
| Nose Diameter | 1.732 in |
| Hole Diameter | 1 in |
| Shank Diameter | 1.732 in |
| Tool Depth | 2.28 in |
| Coolant Fed | Coolant Through |
| List Number | 50.842 |
| Includes | Cool Jet |
| Compatible with Product Type | All Kind of Shrink Fit Units; HSS and Solid Carbide Tools |
| Features | Extreme Clamping Torque by High Pressing in the Clamping Bore; Hardened 54-2 HRC; Heat Resistant Hot-Working Steel; High Runout Accuracy (<0.003 mm); Reinforced Shank at Long Tool Holders; Shank Tolerance H6; Short Chamfer; Threaded Bores for Simple and Fast Balancing with Screws |
| Country of Origin | Germany |
