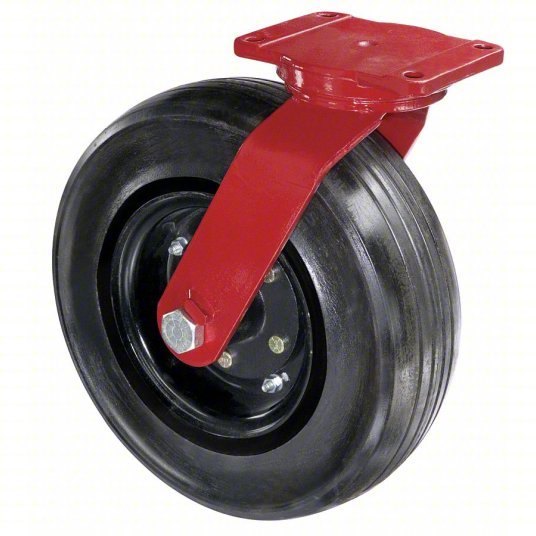

Hamilton S-7516-SPRT-4SL-FCB Plate Caster with Flat-Free Wheels 16 in Wheel Dia., 2900 lb, 18 1/2 in Mounting Ht
Original price
$1,385.80
-
Original price
$1,385.80
Original price
$1,385.80
$1,385.80
-
$1,385.80
Current price
$1,385.80
Plate Caster with Flat-Free Wheels, Load Rating Range 1000 to 2999 lb, Load Rating 2900 lb, Tread Ribbed, Wheel Dia. 16 in, Wheel Width 5 1/8 in, Inside Bolt Hole Spacing 4-1/8 in x 6-1/8 in, Outside Bolt Hole Spacing 4-1/8 in x 6-1/8 in, Caster Brake Type Swivel Lock with Face Contact Brake, Caster Product Group Swivel Caster with Four Position Swivel Lock and Brake, Caster Sub-Type Swivel, Operating Temperature Range -30 Degrees to 120 Degrees F, Non-Marking No, Wheel/Tread Material Rubber
| Caster Brake Included | Yes |
| Caster Load Rating Range | Heavy-Duty |
| Caster Sub-Type | Swivel |
| Caster Wheel/Tread Material | Pneumatic |
| Load Rating | 2900 lb |
| Number of Wheels | 1 |
| Caster Stem Type | No Stem/Plate Included |
| Plate Caster Bolt Hole Pattern | D |
| Frame Finish | Enamel |
| Item | Plate Caster with Flat-Free Wheels |
| Caster Plate Hole Pattern | D |
| Caster Mounting Type | Plate |
| Hub Type | Symmetrical |
| Non-Marking | No |
| Hub Material | Steel |

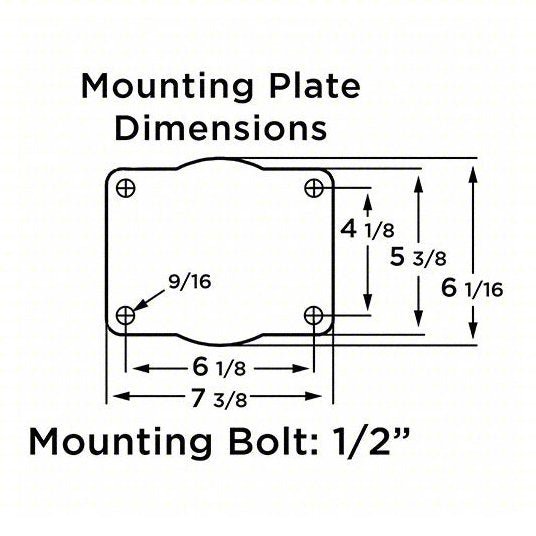

| Outside Bolt Hole Spacing | 4-1/8 in x 6-1/8 in |
| Plate Thickness | 1/2" |
| Caster Raceway | Single Ball |
| Frame Material | Forged Steel |
| Inside Bolt Hole Spacing | 4-1/8 in x 6-1/8 in |
| Tread | Ribbed |
| Caster Product Group | Swivel Caster with Four Position Swivel Lock and Brake |
| Includes | Four Position Swivel Lock |
| Ply | 6 |
| Hub Color | Black |
| Caster Wheel Bearings | Ball |
| Caster Temp. Range Available | Yes |
| Caster Brake Type | Swivel Lock with Face Contact Brake |
| Caster Temp. Range | -30 Degrees to 120 Degrees F |
| Tread Color | Black |
| Swivel Raceway Type | Single Ball |
| Wheel/Tread Hardness Rating | Soft |
| Mounting Plate Bolt Hole Pattern | D |
| Caster Frame Material | Steel |
| Operating Temperature Range | -30 Degrees to 120 Degrees F |
| Wheel Bearing Type | Roller |
| Swivel Construction | Kingpin |
| Load Rating Range | 1000 to 2999 lb |
| Wheel/Tread Material | Rubber |
| Number of Mounting Holes | 4 |
| Includes Thread Guards | No |
| Wheel/Tread Hardness | 65 Shore A |
