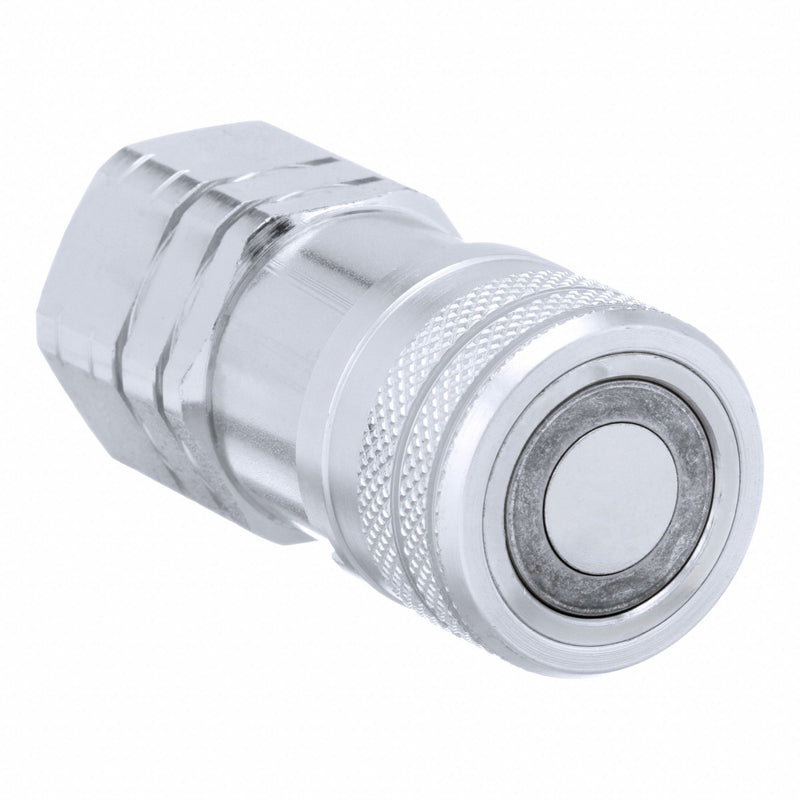

Hansen 12FFS50 Hydraulic Quick Connect Hose Coupling, Socket x Female NPT Threaded, Clear Chromate Steel
UPC: | Harmonization / Schedule B : 7307.22.5000
Country of Origin: United States | Shipping Weight: 1.05 lbs
Original price
$204.29
-
Original price
$204.29
Original price
$204.29
$204.29
-
$204.29
Current price
$204.29
Hydraulic Quick Connect Hose Coupling, Socket, FF Series, Steel, Coupling Size 1/2 in, Female, Max. Working Pressure @ 70 F 5,075 psi, Max. Flow Rate 55 lpm
| Thread Size | 1/2"-14 |
|---|---|
| Coupler Thread Size | 1/2"-14 |
| Coupler Body Size | 1/2" |
| Overall Length | 3 1/4 in |
| Coupling Size | 1/2 in |
| Max. Outside Dia. | 1 9/16 in |
| Wire Rope Length | 3 1/4 in |
| Body Material | Steel |
| Seal Material | Buna-N |
| Coupling Locking Type | Push-to-Connect |
| Max. Pressure | 5075 psi |
| Connection Type | Threaded |
| Shut Off | Flat Face |
| For Use With | 12FFP75UN, 12FFP87UN, Mfr. No. 12FFP50 |
| Sleeve Material | Zinc Plated Steel |
| Series | FF |
| Coupler Finish | Clear Chromate |
| Quick Coupler Type | Hydraulic Coupler Body |
| Coupler Flow Rate | 12.0 gpm |
| Bearing Material | Stainless Steel |
| Coupler Connection Type | FNPT |
| Valve Design | Tubular |
| Coupler Interchange Type | HTMA |
| Parker Interchange | FEM-501-8FP; FEM-501-8FP-NL |
| Standards | ISO 16028 |
| Locking Mechanism | Standard Sleeve Lock |
| Seal Type | Buna N |
| Operating Temp. Range | -4 Degrees to 212 Degrees F |
| Coupler Body Material | Zinc Plated Steel |
| Hansen Interchange | 12FFS50 |
| Includes Bearing | Yes |
| Snap-Tite Interchange | 74C8-8RP |
| Max. Flow Rate | 55 lpm |
| Hose Fitting Gender | Female |
| Max. Working Pressure @ 70 F | 5,075 psi |
| Pull Ring Material | PTFE |
| Finish/Coating | Clear Chromate |
| Valve Type | Two-Way |
| Includes Valve | Yes |
| Includes Shut Off | Yes |
| Coupling Component | Socket |
| Fitting Type | FNPT |
| Maximum Vacuum | 27.4 in Hg |
| Compatible Manufacturer Part Number | 12FFP75UN, 12FFP87UN, 12FFP50 |
| Compatible with Manufacturer Model Number | 12FFP75UN, 12FFP87UN, 12FFP50 |
| Country of Origin | United States |
