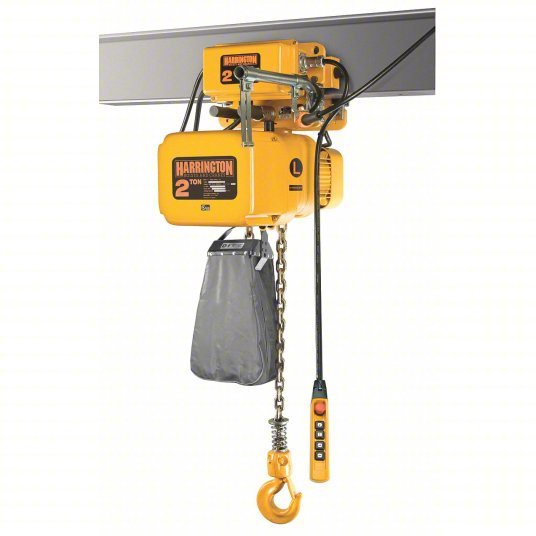

Harrington NERM020L-L-20 Electric Chain Hoist H4 Heavy Duty, Motorized Trolley, 208-230/460V AC, 20 ft Lift Lg
Original price
$11,938.27
-
Original price
$11,938.27
Original price
$11,938.27
$11,938.27
-
$11,938.27
Current price
$11,938.27
Electric Chain Hoist, Duty Classification H4, Mount Type Motorized Trolley, Maximum Lifting Capacity 4,000 lb, Number of Speeds 1, Programmable Non-Programmable, Fixed Lift Speed 14 fpm, Minimum Lift Speed Not Applicable, Maximum Lift Speed Not Applicable, Trolley Speed 40 fpm, Maximum Lifting Length 20 ft, Current at Minimum Voltage 11.8 A, Current at Maximum Voltage 1.7 A, Motor Horsepower 2 3/8 hp, Operating Voltage 208-230/460V AC, Headroom 22 13/32 in, For Minimum Beam Height 4 29/32 in
| Color | Yellow |
| Electric Hoist Item | Chain Hoist |
| Hoist Lift | 20 ft |
| Hoist Mount | Motorized Trolley |
| Includes | Chain Container, Guardian Smart Brake, Motorized Trolley |
| Lift Speed | 14 fpm |
| Load Capacity | 4,000 lb |
| Min. Between Hooks | 22 7/16 in |
| Motor HP | 2.4 hp |
| Phase | 3 |
| Standards | ASME B30.16, UL 1340 |
| Voltage | 230/460 |
| Number of Speeds | 1 |
| Clutch | Friction |
| Amps @ Low Volts | 5.6 A |
| Thermal Protection | Yes |
| Trolley Speed | 40 fpm |
| Item | Electric Chain Hoist |
| Finish | Electrostatic Enamel |
| Classification | H4 |
| Control | 110V Push Button Control Pendant |
| Lubrication | Oil Bath |
| Control Cord | 16 ft |
| Fits Beam Flange W | 3-7/32 in to 6-3/16 in |
| Brake | DC Current |
| Reeving | 1 |
| Trolley Configuration | Motorized Trolley |
| Features | Dual Speed Trolley VFD, Rubber Bumpers, Side Guide Rollers |
| Material | Aluminum Body |
| Number of Load Chains | 1 |
| Resistance Properties | Corrosion Resistant |
| Current at Max. Voltage | 1.7 A |
| Includes Brake | Brake Included |
| Chain Material | Alloy Steel |
| Overload Protection Included | Yes |
| Hoist IP Rating | IP55 |
| Starts and Stops per Hour | 360 |
| Trolley IP Rating | IP55 |
| Trolley Wheel Material | Steel |
| Brake Type | DC Current |
| Clutch Type | Friction |
| Body Material | Aluminum |
| Lifting Hook Type | Swivel Hook with Safety Latch |
| Included Components | Chain Container, Pendant, Quick Disconnect Plugs on Pendant, Rubber Bumpers, Safety Latch Hook |
| Motor Horsepower | 2 3/8 hp |
| Controls | Push Button Pendant |
| Lifting Hook Material | Carbon Steel |
| Includes Clutch | Clutch Included |
| For Outdoor Use | Yes |
| Chain Grade | Grade 80 |
| Duty Classification | H4 |
| Body Finish | Enamel |
| Maximum Lifting Capacity | 4,000 lb |
| Number of Reeves | 1 |
| Mount Type | Motorized Trolley |
| Fixed Lift Speed | 14 fpm |
| Pendant IP Rating | IP65 |
| Current at Min. Voltage | 11.8 A |
| Programmable | Non-Programmable |
| Chain Finish | Nickel Plated |
| Headroom | 22 13/32 in |
| Operating Voltage | 208-230/460V AC |
