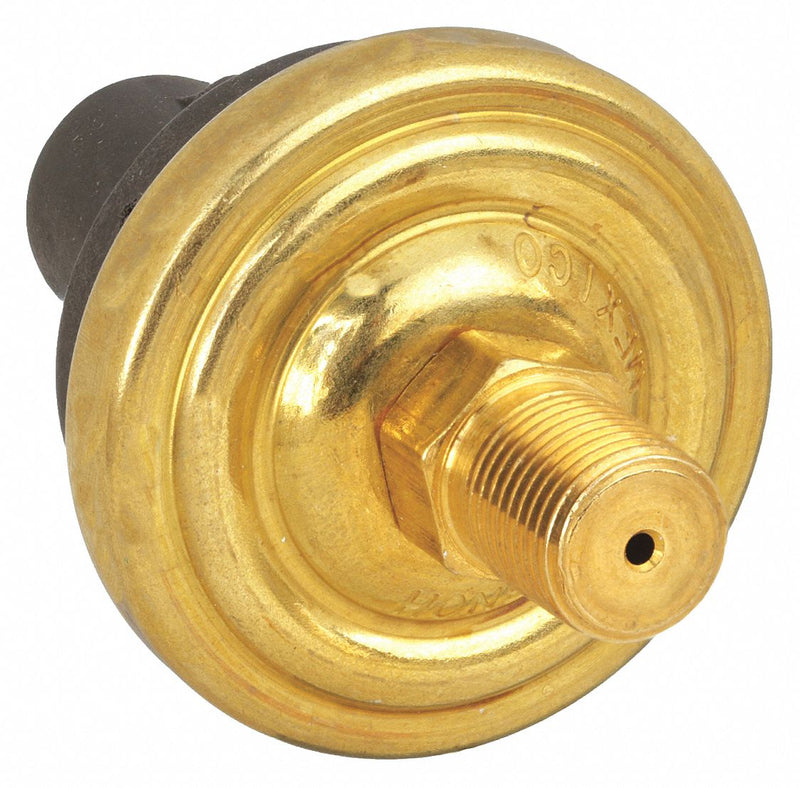

Honeywell 76054-B00000600-01 Pressure Switch, 5000 Series, 0.5 psi to 150 psi, 1/8-27 in MNPT, SPST-NO
UPC: | Harmonization / Schedule B : 8536.50.9065
Country of Origin: Mexico | Shipping Weight: 0.15 lbs
Original price
$111.71
-
Original price
$111.71
Original price
$111.71
$111.71
-
$111.71
Current price
$111.71
Pressure Switch, Differential 51 to 90 psi, Range 51 to 90 psi, Port Type 1/8-27 in MNPT, Contact Form 1NO, NEMA Rating Not Rated, Actuation Type Diaphragm, Action Standard, Series 5000, Factory On/Off Setting 60/90 psi, AC Contact Rating 0.5 A @ 240 V, 1 A @ 120 V, DC Contact Rating 15 A @ 6 V, 4 A @ 24 V, 8 A @ 12 V
| Item | Pressure Switch |
|---|---|
| Overall Height | 2.3 in |
| Overall Width | 1.47 in |
| Action | Standard |
| Contact Form | SPST-NO |
| Pressure Connection Type | 1/8-27" MNPT |
| Range | 51 to 90 psi |
| Factory On Setting | 60 psi |
| Factory Off Setting | 90 psi |
| Series | 5000 |
| Pressure Switch Differential | 51 to 90 psi |
| AC Contact Rating | 0.5A @ 240V, 1A @ 120V |
| DC Contact Rating | 15A @ 6V, 4A @ 24V, 8A @ 12V |
| Pressure Switch Electrical Contact Form | SPST-NO |
| Actuation Type | Diaphragm |
| Pressure Switch Factory On/Off Setting | 60/90 psi |
| Pressure Switch Port Type | 1/8-27 in MNPT |
| Pressure Switch Range | 51 to 90 psi |
| IP Rating | IP54 |
| Differential Pressure - Minimum | 51 psi |
| Pressure - Minimum | 0.5 psi |
| Deadband Adjustability | Adjustable |
| Differential Pressure - Maximum | 90 psi |
| Pressure - Maximum | 150 psi |
| Proof Pressure | 500 psi |
| CAD Available | Yes |
| Operating Temperature - Minimum | -40 Degrees F |
| Operating Temperature - Maximum | 250 Degrees F |
| NEMA Enclosure Rating | Not Rated |
| Country of Origin | Mexico |
