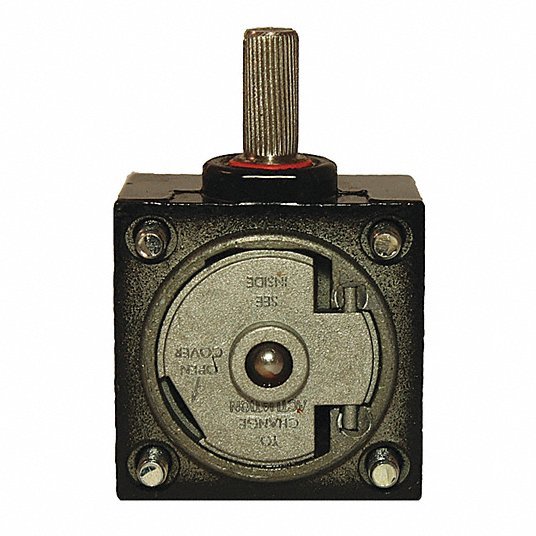

Honeywell LSZ1R Limit Switch Head Side, HDLS Series
Original price
$161.59
-
Original price
$161.59
Original price
$161.59
$161.59
-
$161.59
Current price
$161.59
Limit Switch Head, Actuator Style Rotary Lever, Actuator Location Side, Contact Form Not Applicable, Amps Not Applicable, Voltage Rating 600V AC/250V DC, Travel Differential Travel 7 Degrees max, Overtravel 60 Degrees min, Pretravel 15 Degrees max, Movement CW and CCW, Operating Force Not Applicable, Operating Temp. 30 Degrees to 250 Degrees F, NEMA Rating 1, 3, 4, 4X, 6, 6P, IP Rating Not Rated, Standards RoHS, For Use With HDLS LSR Switches
| Actuator Style | Rotary Lever |
| Actuator Location | Side |
| For Use With | HDLS LSR Switches |
| NEMA Rating | 1, 3, 4, 4X, 6, 6P |
| Movement | CW and CCW |
| Travel | Differential Travel 7 Degrees max, Overtravel 60 Degrees min, Pretravel 15 Degrees max |
| IP Rating | Not Rated |
| Operating Temp. | 30 Degrees to 250 Degrees F |
| Description/Special Features | Low Torque Head |
| Standards | RoHS |
| Voltage Rating | 600V AC/250V DC |
| Differential Travel | 7 Degrees |
| Features | Low Torque Head |
| Operating Temperature - Maximum | 250 Degrees F |
| Operating Torque | 1.7 in-lb |
| Compatible with Brand | Honeywell |
| Pretravel | 15 Degrees |
| Directional Movement | CCW/CW |
| Operating Temperature - Minimum | 30 Degrees F |
| NEMA Enclosure Rating | 1, 3, 4, 4X, 6, 6P |
| Overtravel | 60 Degrees |
| Compatible with Series | HDLS, LSR |
| Series | HDLS |
| Compatible with Manufacturer Model Number | 2B, 3K, 4L, 5A, 6B, 7L, 8A, LSR 1A |
