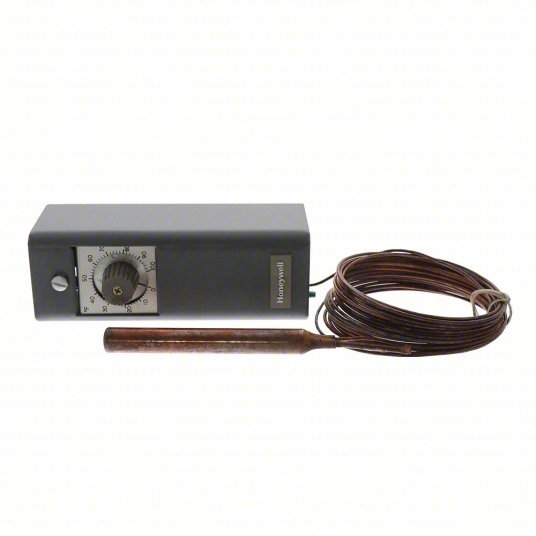

Honeywell T678A1015 Line Volt Mechanical Tstat 0° to 100°F, Steel, Adj, 3° to 10°F
Original price
$563.95
-
Original price
$563.95
Original price
$563.95
$563.95
-
$563.95
Current price
$563.95
Line V Mechanical Tstat,120 to 277VAC,8A
| Switch Action | Open/Close on Rise |
| Control Type | Exposed Dial |
| Switch Type | SPDT |
| Voltage | 120 to 277V AC |
| Sensor Type | Hydraulic Capillary Bulb (Copper) |
| Differential | 3 Degrees to 10 Degrees F |
| Number of Relay Outputs | 2 |
| Full Load Amps @ 120VAC | 15 A |
| Thermostat Control Range | 0 Degrees to 100 Degrees F |
| Full Load Amps @ 240VAC | 5.1 A |
| Enclosure Type | Impact Resistant Norel |
| Standards | CSA Certified, UL Listed |
| Color | Gray |
| Inductive Amps @ 240V | 5 A |
| Thermostat Heating/Cooling | Heating/Cooling |
| Number of Switches | 2 |
| Contact Rating Resistive @ 120V | 8 A |
| Locked Rotor Amps @ 240V | 30.6 A |
| Thermostat Voltage | 120 to 277V AC |
| Inductive Amps @ 120V | 8 A |
| Thermostat Switch Type | SPDT |
| Thermostat Item | Line Voltage Mechanical Thermostat |
| Locked Rotor Amps @ 120V | 48 A |
| Thermostat Programmable | No |
| Remote Sensing Bulb Included | Yes |
| Application | Heat and Cool |
| Stages | 1H/1C |
| Thermostat Type | Indoor Single-Stage Controls |
| Temperature Differential | 3 Degrees to 10 Degrees F |
| Maximum Control Temperature | 100 Degrees F |
| Full Load Amps @ 120V AC | 8 A |
| Compatible System Type | Boilers, Ducts, Pipes, Tanks |
| Minimum Control Temperature | 0 Degrees F |
| Number of Poles | 1 |
| Electrical Connection Type | Hardwired |
| Changeover Type | Manual |
| Sensor Location | Remote |
| Switch Type/Action | SPDT, Open/Close on Rise |
| Full Load Amps @ 240V AC | 5.1 A |
| Number of Heating Stages | 1 |
| Pilot Duty Rating | 125 VA @ 120 to 277V AC |
| Operating Temperature Range | 55 Degrees to 125 Degrees F |
| Number of Cooling Stages | 1 |
| Enclosure Material | Steel |
| Minimum Operating Temperature | 55 Degrees F |
| Defrost Termination | 0 Degrees to 100 Degrees F |
| Temperature Scale | Fahrenheit/Celsius |
| Mounting Direction | Horizontal, Vertical |
| Temperature Control Range | 0 Degrees to 100 Degrees F |
| Frequency | 50 Hz, 60 Hz |
| Contact Rating | 120 to 277V AC |
| Enclosure Color | Gray |
| Maximum Operating Temperature | 125 Degrees F |
| Differential Type | Adjustable |
