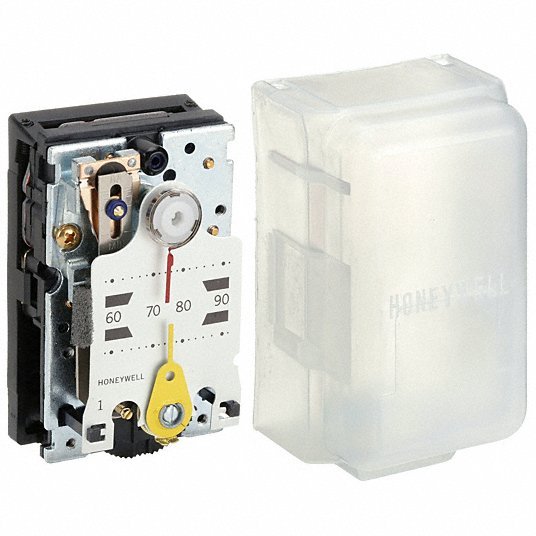

Honeywell TP970A2004 Pneumatic Thermostat, Single Temperature, Heating, 2 Pipe, Vertical
Original price
$199.29
-
Original price
$199.29
Original price
$199.29
$199.29
-
$199.29
Current price
$199.29
Pneumatic Thermostat, Direct Acting, 2 Pipe, Heating, Single Temperature, Air Connections 1/8 in, Element Type Bi-Metal, Max. Air Pressure 25 psi, Max. Ambient Temp. 100 Degrees F, Mounting Style Vertical, Height 3 1/4 in, Width 2 in, Depth 1 5/8 in, Temp. Control Range 60 Degrees to 90 Degrees F, Air Consumption 19 scim, Throttling Range 2 Degrees to 10 Degrees F
| Item | Pneumatic Thermostat |
| Action Type - Pneumatic Thermostats | Direct Acting |
| No. of Pipes | 2 Pipe |
| Thermostat Application | Heating |
| Temperature Output Settings | Single Temperature |
| Air Connections | 1/8 in |
| Temp. Control Range | 60 Degrees to 90 Degrees F |
| Element Type | Bi-Metal |
| Single Temp. / Dual Temp. | Single Temperature |
| 1 Pipe / 2 Pipe | 2 Pipe |
| Air Consumption | 0.01 scfm |
| Heating / Cooling | Heating |
| Reverse Acting / Direct Acting | Direct Acting |
| Max. Air Pressure | 25 psi |
| Max. Ambient Temp. | 100 Degrees F |
| Mounting Style | Vertical |
| Throttling Range | 2 to 10F |
| Action Type | Direct Acting |
| Number of Pipes | 2 |
| Maximum Air Pressure | 25 psig |
| Action | Direct |
| Maximum Control Temperature | 90 Degrees F |
| Temperature Control Range | 60 Degrees to 90 Degrees F |
| Mounting Direction | Vertical |
| Mounting Direction/Includes Cover | Vertical, No |
| Manual Indexing Switch | No |
| Thermostat Action | Direct |
| Air Flow Output | High Volume |
| Temperature Settings | Single Temperature |
| Temperature Scale | Fahrenheit |
| Number of Dials | Single |
| Number of Pipes/Air Flow Output | 2 Pipes, High Volume |
| Minimum Control Temperature | 59 Degrees F |
| Compatible System Type | Pneumatic Valves and Damper Actuators |
| Product Type | Pneumatic Thermostat |
| Package Quantity | 1 |
