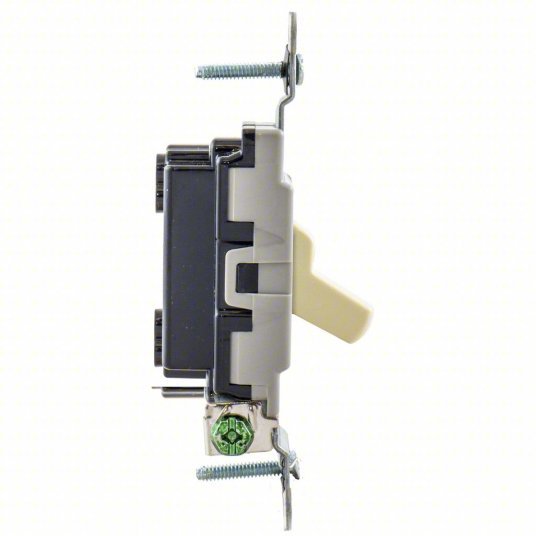

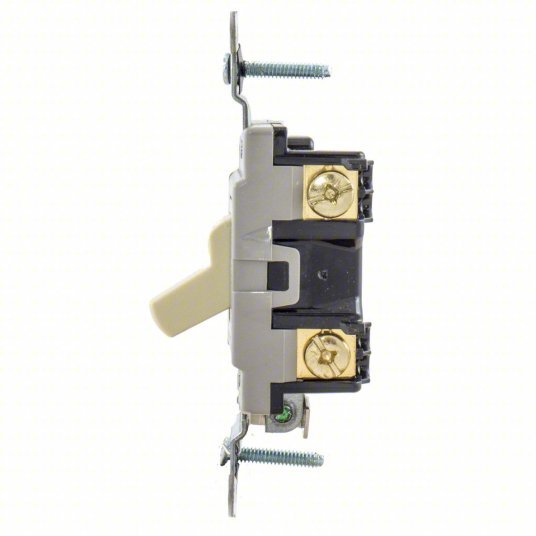

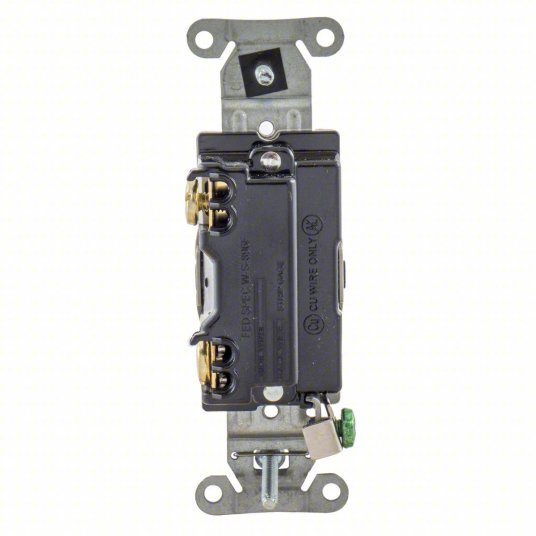

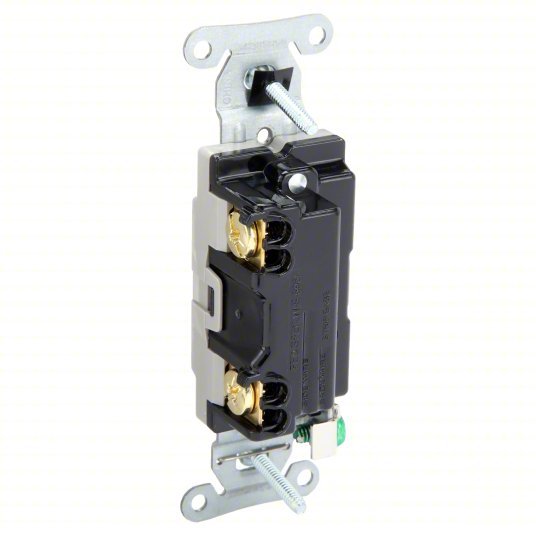

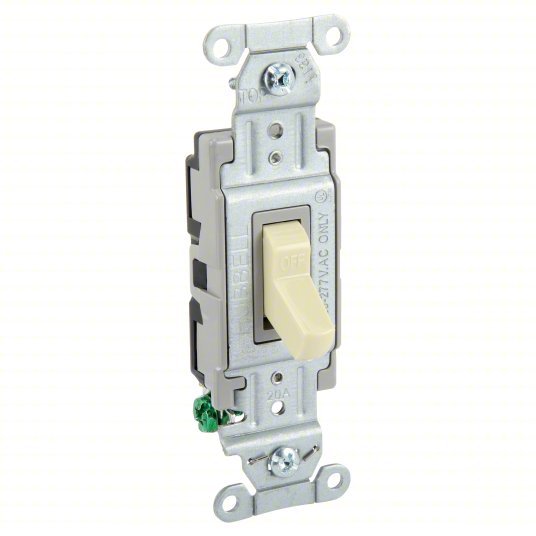

Hubbell CSB120I Wall Switch Toggle Switch, Single Pole, Ivory, 20 A, Screw Terminals
Original price
$12.19
-
Original price
$12.19
Original price
$12.19
$12.19
-
$12.19
Current price
$12.19
Wall Switch, Color Ivory, Current Rating 20 A, Switch Function Maintained, Switch Type Single Pole, Voltage Rating 120/277V AC, Wiring Method Back, Side, Horsepower Rating 1 hp, Locking Style Not Applicable, Maximum Wire Size 10 AWG, Minimum Wire Size 14 AWG, Number of Switches 1, Resistance Properties Shatter and Crack Resistant, Corrosion Resistant, Impact Resistant, Standards UL Listed, Switch Style Toggle, Wire Connection Type Screw Terminals, Housing Material Nylon, Market Commercial
| Item | Wall Switch |
| Switch Type | Single Pole |
| Switch Style | Toggle |
| Amps AC | 20 A |
| Color | Ivory |
| Voltage AC | 120 to 277 |
| Locking | No |
| Switch Function | Maintained |
| Wiring Method | Back, Side |
| Application Environment | Commercial |
| Rated HP | 1 |
| Antimicrobial | No |
| Description/Special Features | Quiet Switch |
| Standards | UL Listed |
| Voltage | 120/277V AC |
| Wire Connection Type | Screw Terminals |
| Voltage Rating | 120/277V AC |
| Current Rating | 20 A |
| For Market | Commercial Grade |
| Market | Commercial |
| Horsepower Rating | 1 hp |
| Number of Switches | 1 |
| Minimum Operating Temperature | -40 Degrees F |
| Wire Connection Types | Screw Terminals |
| Resistance Properties | Shatter and Crack Resistant, Corrosion Resistant, Impact Resistant |
| Locking Style | Not Applicable |
| Maximum Operating Temperature | 75 Degrees C |
| Housing Material | Nylon |
| Switch Material | Nylon |
| Amperage | 20A |
| Operating Temperature | Max. continuous: 75°C; Min. continuous: -40°C without impact |
| Dielectric Voltage | Withstands 1500V AC minimum for 1 minute |
| Toggle Color | Ivory |
| Operating Temperatures | Max Continuous- 75 Degrees C, Minimum- -40 Without Impact |
| Switch Grade | Specification Grade |
| Listing and Certifications | Listed to Standard UL 20, CSA Certified, Meets NEMA WD1 |
| Terminal Accommodations | #14 AWG min. - #10 AWG max. solid and stranded copper wire only |
| Product Type | Toggle-switches |
| Overload | Minimum 4.8 times rated current for 100 cycles |
| Max. Working Voltage | 277V AC |
| Wiring Style | Back and Side Wired |
| Switch Handle Positions | 2 |
| Temperature Rise | 30°C maximum at rated current |
| Flammability | UL 94V-2 |
| Max. Continuous Current | 20A |
