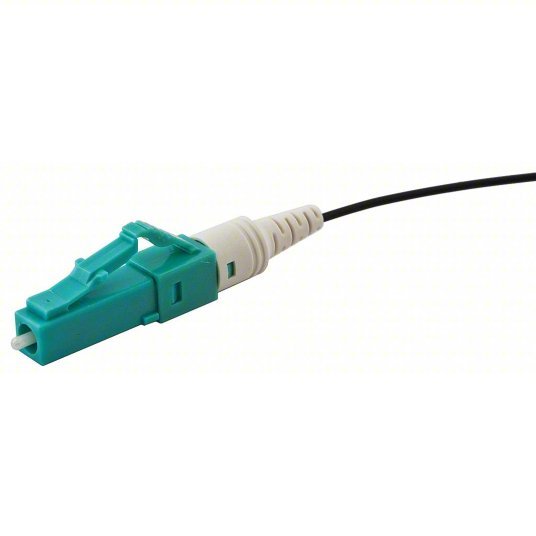

Hubbell FCLC900K50GM12 Fiber Optic Connector Color: Aqua, Fiber Optic Connectors, Std, OM3/OM4
Original price
$419.82
-
Original price
$419.82
Original price
$419.82
$419.82
-
$419.82
Current price
$419.82
Fiber Optic Connector, Connector Type LC, Color Aqua, End Type Standard, Features Pre-Polished, Product Type Connector, Optical Fiber Type OM3, OM4, Compatible Number of Fibers Simplex, Compatible Wire Material Fiber Optic, Standards Telcordia GR-326-CORE, TIA-604-FOCIS, Package Quantity 12
| Connector Type | LC |
| Connector Application | Proclick |
| Color | Aqua |
| Simplex/Duplex | Simplex |
| Optical Fiber Type | OM3/OM4, MM |
| Standards | Telcordia GR-326-CORE, TIA-604-FOCIS |
| Brand | Hubbell Premise Wiring |
| Repeatability | 0.1 dB |
| Enclosure Type | Various |
| Carton Quantity | 10 |
| Style | PROclick |
| Service Life | 500 matings |
| Mounting Hardware Material | Fiber Termination, No Polish |
| Environmental Rating | Indoor |
| Material | Ceramic |
| Temp. Rating | 0C to 70C |
| Application | Interconnect |
| Connectivity | Fiber Optic Connector |
| Features | Pre-Polished |
| Environmental Conditions | Indoor |
| Fiber Type | OM3/OM4, MM |
| Temperature Rating | 0C to 70C |
| Item Type | LC |
| Insertion Loss | 0.75 dB Max |
| Return Loss | 26 |
| Material - Mounting Hardware | Fiber Termination, No Polish |
| Industry Standard(s) | Telcordia GR-326-CORE TIA-568-C.3 TIA-604-FOCIS |
| OEM Brand Name | Hubbell Premise Wiring |
| Performance | Optical - Insertion loss - 0.5dB (0.35dB typical), 0.75dB max Optical - Mating durability - 500 cycles < 0.1dB change Optical - Multimode return loss - 35dB Typ, 22dB minimum Optical - Singlemode return loss - 55dB Typ, 40dB minimum Environmental - Operating temperature - 0°C to +70°C |
| Product Type | Connector |
| Compatible Number of Fibers | Simplex |
| Compatible Wire Material | Fiber Optic |
| End Type | Standard |
| For Use With | Proclick |
