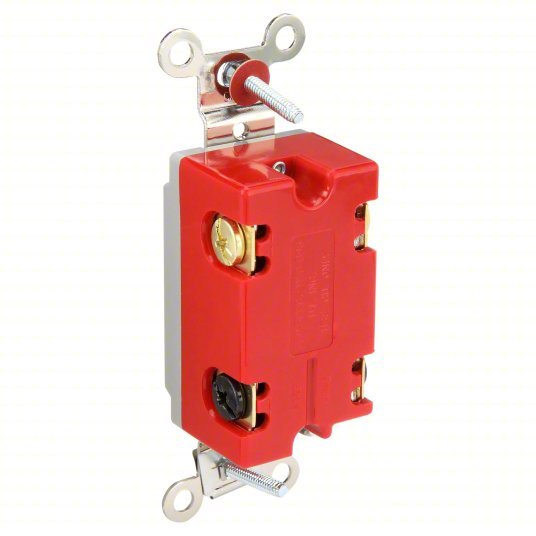

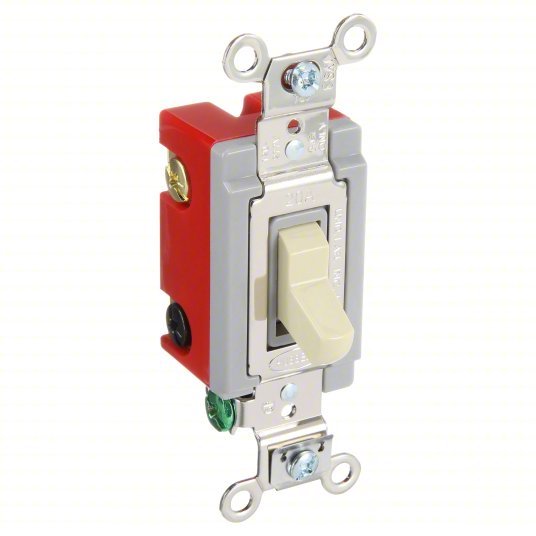

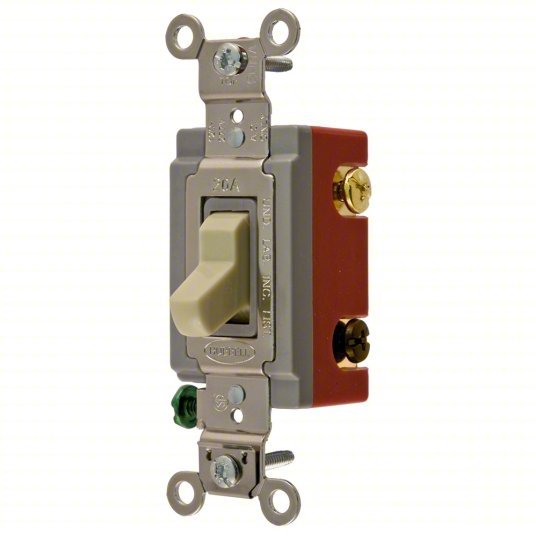

Hubbell HBL1224I Wall Switch Toggle Switch, 4-Way, Ivory, 20 A, Screw Terminals
Hubbell HBL1224I Wall Switch Toggle Switch, 4-Way, Ivory, 20 A, Screw Terminals
Hubbell HBL1224I Wall Switch Toggle Switch, 4-Way, Ivory, 20 A, Screw Terminals
Hubbell HBL1224I Wall Switch Toggle Switch, 4-Way, Ivory, 20 A, Screw Terminals
Hubbell HBL1224I Wall Switch Toggle Switch, 4-Way, Ivory, 20 A, Screw Terminals
Hubbell HBL1224I Wall Switch Toggle Switch, 4-Way, Ivory, 20 A, Screw Terminals
Hubbell HBL1224I Wall Switch Toggle Switch, 4-Way, Ivory, 20 A, Screw Terminals
Hubbell HBL1224I Wall Switch Toggle Switch, 4-Way, Ivory, 20 A, Screw Terminals

Hubbell HBL1224I Wall Switch Toggle Switch, 4-Way, Ivory, 20 A, Screw Terminals

$85.30 - $85.30
$85.30
$85.30 - $85.30
$85.30
Wall Switch, Color Ivory, Current Rating 20 A, Switch Function Maintained, Switch Type 4-Way, Voltage Rating 120/277V AC, Wiring Method Back, Side, Horsepower Rating 1 hp, Maximum Wire Size 10 AWG, Minimum Wire Size 14 AWG, Number of Switches 1, Resistance Properties Shatter and Crack Resistant, Impact Resistant, Standards UL Listed, Switch Style Toggle, Wire Connection Type Screw Terminals, Features Large Brass Binding Head Screws with Deep Slots, Strip Gauge for Accurate Wiring
Switch Type 4-Way
Switch Style Toggle
Amps AC 20 A
Color Ivory
Voltage AC 120 to 277
Locking No
Switch Function Maintained
Wiring Method Back, Side
Application Environment Industrial
Rated HP 1
Antimicrobial No
Standards UL Listed
Voltage 120/277V AC
Voltage Rating 120/277V AC
Switch Material Nylon
Minimum Operating Temperature -40 Degrees F
Number of Switches 1
Features Large Brass Binding Head Screws with Deep Slots, Strip Gauge for Accurate Wiring
Horsepower Rating 1 hp
Wire Connection Type Screw Terminals
Wire Connection Types Screw Terminals
For Market Industrial Grade
Current Rating 20 A
Resistance Properties Shatter and Crack Resistant, Impact Resistant
Maximum Operating Temperature 75 Degrees C
Market Industrial
Style Four Way
Type Toggle
Max. Working Voltage 277V AC
Dielectric Voltage Withstands 1500V AC minimum for 1 minute
Wiring Style Back and Side Wired
Amperage 20A
Switch Grade Industrial
Max. Continuous Current 20A
Flammability UL 94V-2
Listing and Certifications Listed to Standard UL 20, CSA Certified, Meets NEMA WD1
Temperature Rise 30°C maximum at rated current
Product Type Toggle-switches
Toggle Color Ivory
Operating Temperatures Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Switch Handle Positions 2
Terminal Accommodations #14 AWG min. - #10 AWG max. solid and stranded copper wire only
Operating Temperature Max. continuous: 75°C; Min. continuous: -40°C without impact
Overload Minimum 4.8 times rated current for 100 cycles
Action DPDT
Dielectric Strength Withstands 1500V AC minimum for 1 minute
Performance Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 20A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
Industry Standard(s) UL Listed
Series Extra Heavy Duty
Application Back and Side Wired
Voltage Rating Description 120-277 VAC
Number Of Poles Double Pole
Temperature Rise - Max. 30°C maximum at rated current
Amperage Rating 20 A
Current / Amperage Rating 20 A
Connectivity Back and Side Wired
