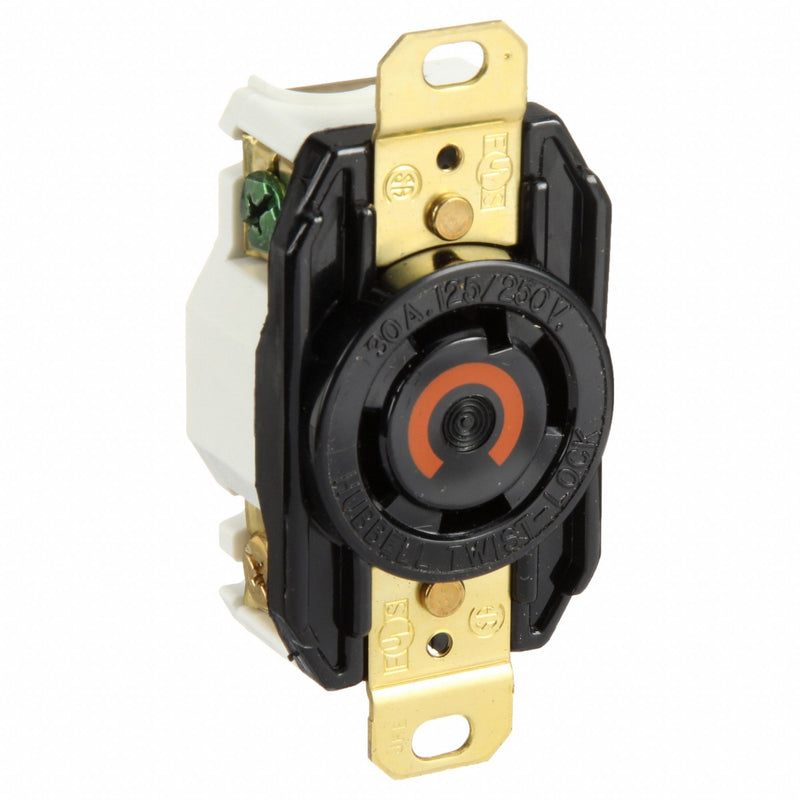

Hubbell HBL2710 Twist-Lock Receptacle, L14-30R, 30A, 125/250V AC, Black, Single Phase, 3-Pole
The HUBBELL 30A Twist-Lock Receptacle L14-30R is a locking receptacle rated for use in industrial applications where a secure electrical connection is needed. It includes a twist-lock mechanism intended to reduce the likelihood of accidental disconnection and supports single-phase, 3-pole, 4-wire configurations at 125/250V AC. The device is constructed with nylon housing and brass contacts. Key Features: Amperage/Voltage: Rated for 30 A, 125/250V AC operation. NEMA Configuration: L14-30R (3-pole, 4-wire). Mounting Type: Flush mount with included screw mounting hardware. Material Construction: Nylon polyester base and housing; all-brass mounting and grounding system enhances corrosion resistance. Standards Compliance: Certified to CSA C22.2 No.42, Federal Specification W-C-596, listed to UL498 standards.
| NEMA Receptacle Configuration | L14-30R |
|---|---|
| Current Rating | 30 A |
| Voltage Rating | 125/250V AC |
| Phase | Single |
| Number of Poles | 3 |
| Number of Wires | 4 |
| Wire Connection Type | Screw Terminals |
| Grounding | Grounded |
| Housing Color | Black |
| Mount Type | Flush |
| Cover Type | No Cover |
| Flange Type | Non-Flanged |
| IP Rating | IP20 |
| Standards | CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498 |
| NEMA Enclosure Rating | 1 |
| Resistance Properties | Corrosion Resistant, Impact Resistant, Moisture Resistant |
| Mounting Type | Flush Mount |
| Material | Nylon |
| Grade | Industrial |
| Horsepower Rating | 2 hp |
| Includes Mounting Hardware | Yes |
| Maximum Operating Temperature | 167 Degrees F |
| Housing Material | Nylon |
| Connection Orientation | Straight |
| For Location | Indoor |
| Number of Gangs | 1 |
| Contact Material | Brass |
| Lock Type | Twist-lock |
| Dielectric Strength | Withstands 2,000V minimum |
| Amperage Rating | 30 A |
| Country of Origin | United States |
