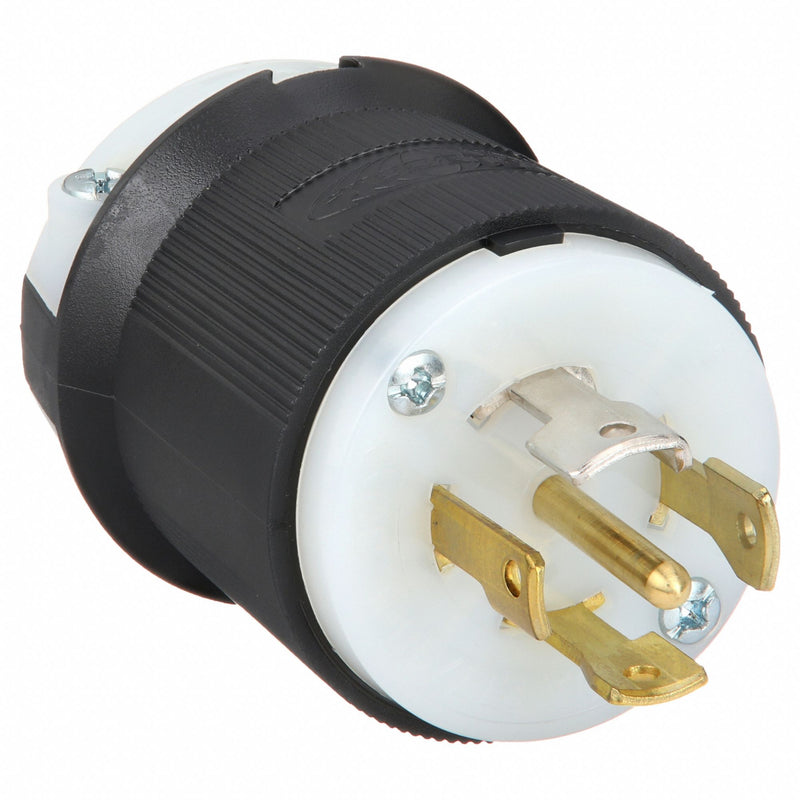

Hubbell HBL2821 Locking Plug, L22-30P, 30 A, 277/480V AC, 3-Phase, 4 Pole, 5 Wire, Black/White
Original price
$86.14
-
Original price
$86.14
Original price
$86.14
$86.14
-
$86.14
Current price
$86.14
• Ribbed nylon housing provides a secure grip and impact and chemical resistance. • Superior cord grip design protects terminations from excess strain. • Clear, funnel shaped wire entry for ease of termination. • Integral dust shield protects wiring chamber from dust or contaminants.
| NEMA Plug Configuration | L22-30P |
|---|---|
| Current Rating | 30 A |
| Voltage Rating | 277/480V AC |
| Phase | Three |
| Number of Poles | 4 |
| Number of Wires | 5 |
| Number of Blades | 5 |
| Wire Connection Type | Screw Terminals |
| Wiring Style | Standard |
| Connection Orientation | Straight |
| Shrouded | No |
| Grounding | Grounded |
| Housing Color | Black, White |
| IP Rating | IP20 |
| Standards | CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498 |
| Resistance Properties | Chemical Resistant, Impact Resistant |
| Boot Code | C |
| Material | Nylon |
| Grade | Industrial |
| Application | Extra Heavy Duty Industrial |
| Polarized | Yes |
| Market | Industrial |
| For Environment | Dry |
| Horsepower Rating | 10 hp |
| Housing Material | Nylon |
| Minimum Operating Temperature | -40 Degrees C |
| Blade Material | Brass |
| For Location | Indoor |
| Maximum Operating Temperature | 75 Degrees C |
| Flammability | HB or better per UL94/CSA 22.2 No.0.17 |
| Amperage Rating | 30 A |
| Material - Mounting Hardware | Cord Mounted |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Cord Type | All Listed Portables |
| Dielectric Strength | Withstands 2,000V minimum |
| Cord Range | 0.350"-1.150" (9-29) |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - 2,000V minimum Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 |
| Antimicrobial | No |
| Amps | 30 |
| Country of Origin | United States |
