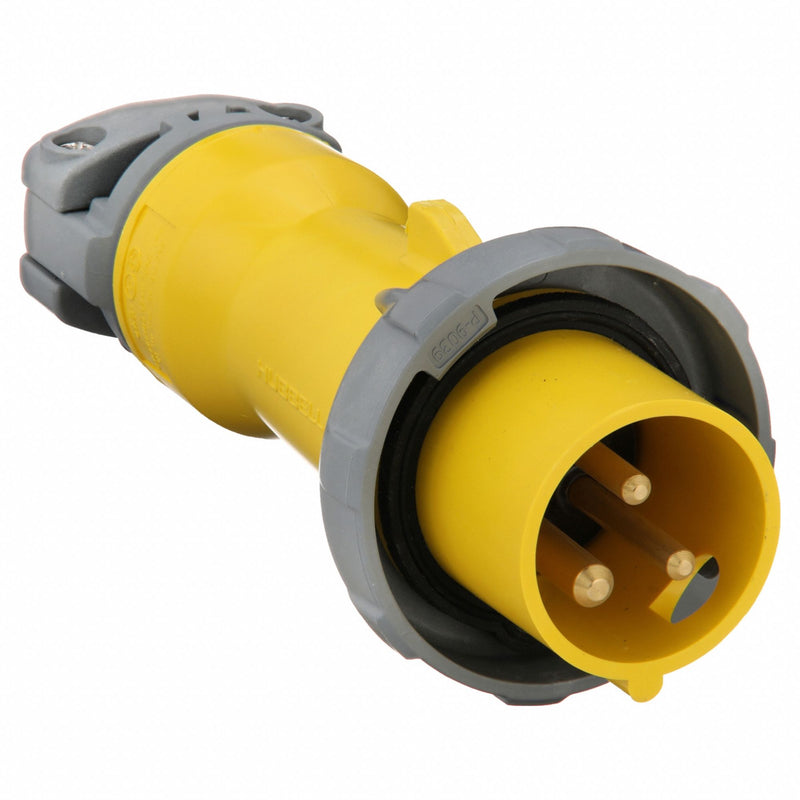

Hubbell HBL320P4W Pin and Sleeve Plug, 125V AC Single Phase 20A, 2P 3W, Yellow, IEC Grounding, IP67
Original price
$213.38
-
Original price
$213.38
Original price
$213.38
$213.38
-
$213.38
Current price
$213.38
Watertight plugs provide secure electrical connections in applications exposed to moisture or splashing water.
| Cap Type | No Cap or Cover |
| Compatible with Series | Heavy Duty |
| Connection Orientation | Straight |
| Current Rating | 20 A |
| Voltage Rating | 125V AC |
| Phase | Single |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Grounding | Grounded |
| Grounding Style | IEC |
| Horsepower Rating | 1 hp |
| Housing Color | Yellow |
| Housing Material | PBT |
| IP Rating | IP67 |
| NEMA Enclosure Rating | 4X |
| Maximum Operating Temperature | 75 °C |
| Minimum Operating Temperature | -40 °F |
| Maximum Wire Size | 10 AWG |
| Minimum Wire Size | 14 AWG |
| Overall Length | 6.61 in |
| Switch Rated | No |
| Shrouded | Yes |
| Wire Connection Type | Screw Terminals |
| Features | Gasketed Sealing Ring; Raised Collar Surrounds Each Phase Pin; Solid One-Piece Pins Machined from Solid Brass |
| Standards | CSA Certified LR280C; IEC 60309-1; IEC 60309-2; UL 1682; UL 1686 C2 |
