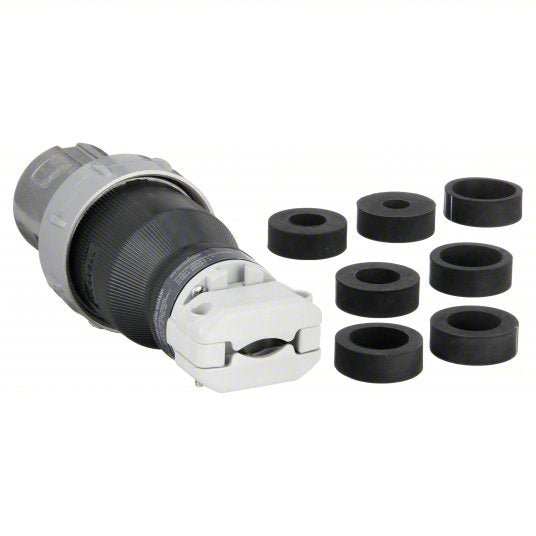

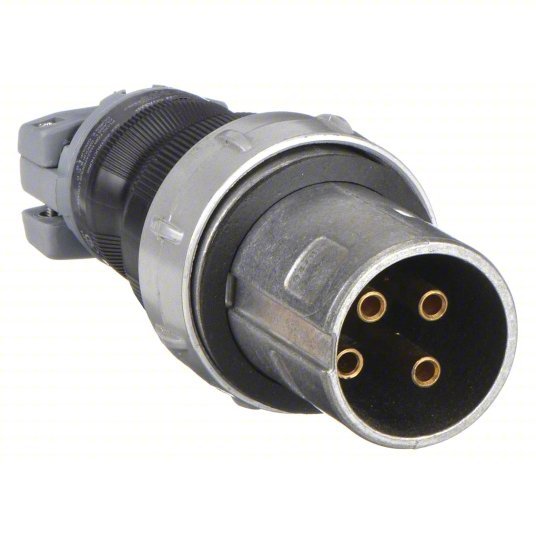

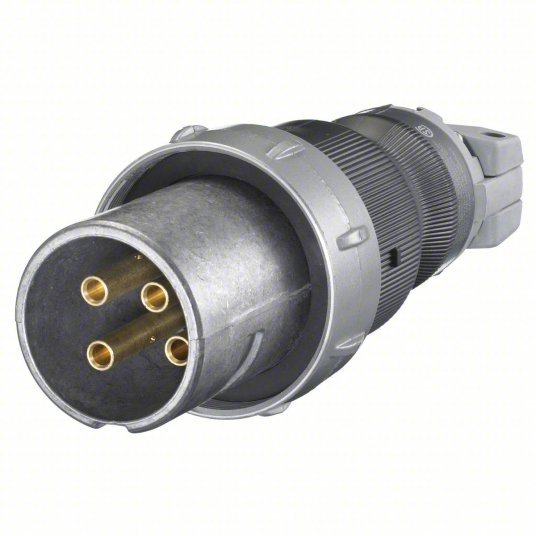

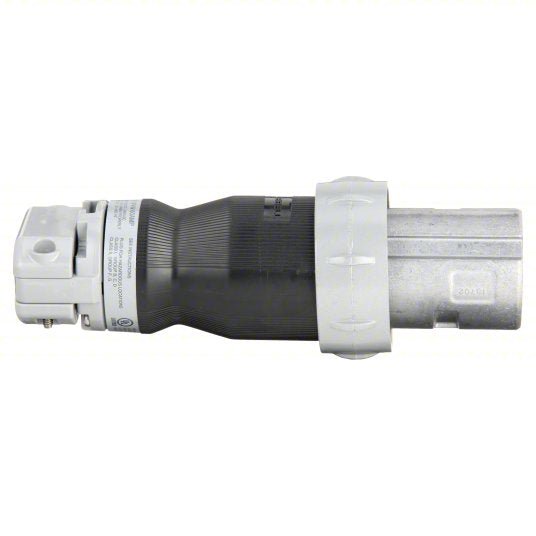

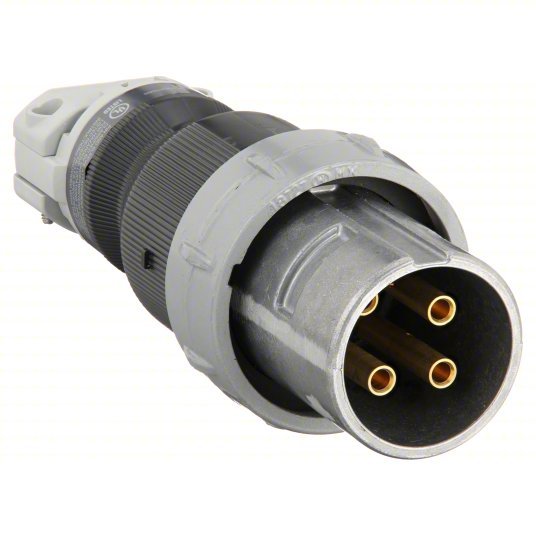

Hubbell HBL460PS2W Pin and Sleeve Plug, 3P, 4W, 60A, 600VAC
Original price
$841.97
-
Original price
$841.97
Original price
$841.97
$841.97
-
$841.97
Current price
$841.97
Type 4X Pin and Sleeve Plug, Current Rating 60 A, Housing Color Black, Gray, IP Rating Not Rated, Number of Poles 3, Number of Wires 4, Phase Three, Voltage Rating 250V DC, 600V AC, Wire Connection Type Screw Terminals, Cap Type No Cap or Cover, Connection Orientation Straight, For Maximum Cable Diameter 1.45 in, For Minimum Cable Diameter 0.5 in, Grounding Grounded, Grounding Style Style 2, Housing Material Polybutylene Terephthalate, Maximum Wire Size 4 AWG, Minimum Wire Size 6 AWG
| Item - Plugs and Receptacles | Watertight Pin and Sleeve Plug |
| Body Material - Pin and Sleeve | Valox 357 Housing and Aluminum Shroud |
| Amps - Plugs and Receptacles | 60 |
| Voltage - Plugs and Receptacles | 600V AC/250V DC |
| Color - Plugs and Receptacles | Gray |
| Number of Poles | 3 |
| Number of Wires | 4 |
| Phase - Electrical | 3 |
| Switch Rated | No |
| Grounding Style | Style 2 |
| Item | Type 4X Pin and Sleeve Plug |
| Amps | 60 |
| Voltage | 600VAC/250VDC |
| Phase | Three |
| Body Material | Valox 357 Housing and Aluminum Shroud |
| Features | All-Brass Sleeve Contacts Provide Reliable Electrical Contact, Catalog Number and Rating Visible While in Use, Locking Ring Provides UL Type 4X Watertight, Dust-Tight Seal |
| Color | Gray |
| Standards | CSA Certified C22.2 No. 159, CSA Certified Type 4X, UL 1010, UL 1682, UL 50, UL Listed |
| Cap Type | No Cap or Cover |
| NEMA Enclosure Rating | 4X |
| Minimum Operating Temperature | -40 Degrees C |
| Voltage Rating | 250V DC, 600V AC |
| Power Indicating Light | No |
| Compatible with Series | Insulgrip |
| Wire Connection Type | Screw Terminals |
| Reverse Service | No |
| Resistance Properties | Impact Resistant, Moisture Resistant, Watertight |
| UL 94 Flammability Rating | V-0 |
| Current Rating | 60 A |
| Pin & Sleeve Standards | CSA Certifications, UL 1682, UL Listed |
| Connection Orientation | Straight |
| Maximum Operating Temperature | 75 Degrees C |
| IP Rating | Not Rated |
| Shrouded | Yes |
| Housing Material | Non-Metallic |
| Grounding | Grounded |
| Housing Color | Black, Gray |
| Hub Style | Standard |
| Mounting Box | Stainless Steel (300 Series) |
| Max. Voltage | 600V |
| Pin & Sleeve Standards` | UL 1682 |
