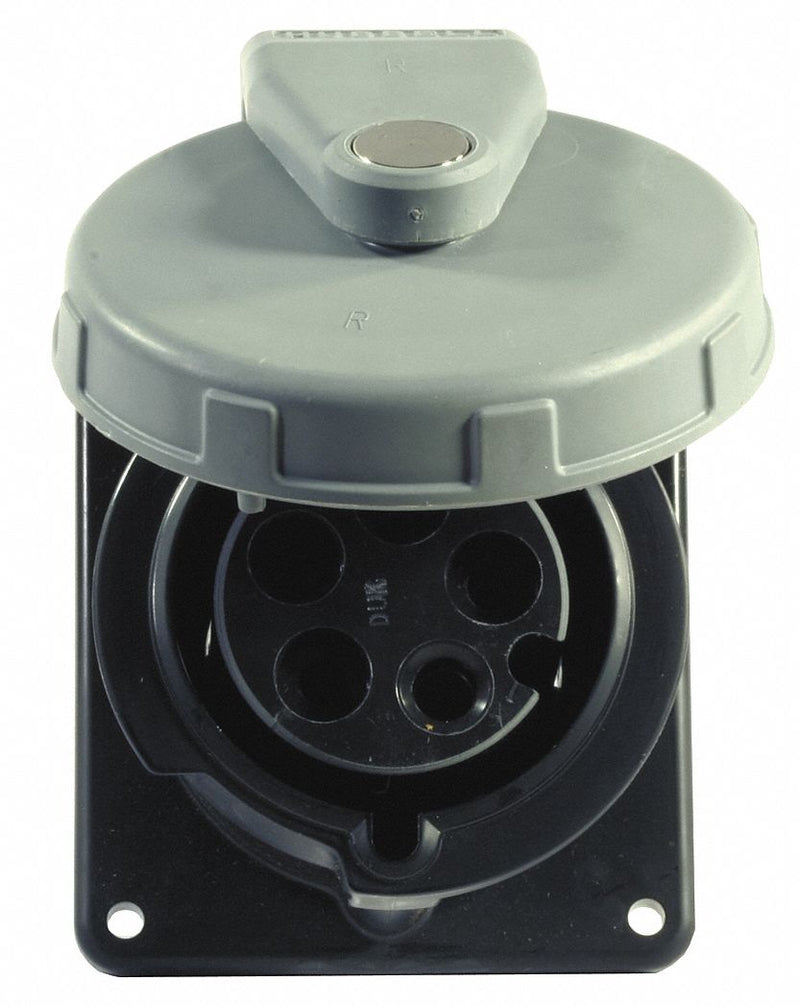

Hubbell HBL530R5W Pin and Sleeve Receptacle, 30 A, 347/600V AC, 3-Phase, 4-Pole 5-Wire, Black
Original price
$525.94
-
Original price
$525.94
Original price
$525.94
$525.94
-
$525.94
Current price
$525.94
The Hubbell IEC Pin and Sleeve Receptacle, 30A, 600V is an electrical device rated for use with 30A, 600V connections in industrial settings. This receptacle features a straight connection orientation with pressure terminal screws and accommodates wire sizes from #12 AWG to #8 AWG. Constructed with Zytel 101 nylon and thermoplastic materials, it offers resistance to corrosion, impact, moisture, and UV exposure. The unit is grounded according to IEC standards, includes a spring-loaded cap, and carries an IP67 watertight rating.
| Current Rating | 30 A |
|---|---|
| Voltage Rating | 347/600V AC |
| Phase | Three |
| Number of Poles | 4 |
| Number of Wires | 5 |
| IP Rating | IP67 |
| Wire Connection Type | Screw Terminals |
| Housing Color | Black |
| Cap Type | Spring-Loaded Cap |
| Standards | CSA Certified C22.2 No. 182.1, IEC 60309-2, UL E146032, UL IEC 60309-1 |
| Resistance Properties | Corrosion Resistant, Impact Resistant, Moisture Resistant, Watertight |
| Body Material | Zytel 101 Nylon |
| Horsepower Rating | 10 hp |
| Grounding Style | IEC |
| Market | Industrial |
| Connection Orientation | Straight |
| Shrouded | Yes |
| Number of Gangs | 1 |
| Flange Type | Flanged |
| Minimum Operating Temperature | -40 Degrees C |
| Maximum Operating Temperature | 75 Degrees C |
| Screw Material | 300 Stainless Steel |
| Flammability | UL 94 5VA, UL 94 V0 |
| UV Resistance | All Materials are UV Stabilized |
| Product Type | Watertight IEC Device |
| Retainer Material | High-Impact Thermoset |
| Dielectric Strength | 3000V AC |
| Weight | 1.8 lb |
| Gasket Material | Neoprene |
| Application | High Ampacity Watertight Connections |
| Series | HBL Heavy Duty |
| Connection Type | Screw Terminals |
| Country of Origin | United States |
